88
Triple Evacuation Method
The triple evacuation method should only be used when vacuum
pump is capable of pumping down to 28−in. of mercury and
system does not contain any liquid water. Proceed as follows:
1. Pump system down to 28−in. of mercury and allow pump
to continue operating for an additional 15 minutes.
2. Close service valves and shut off vacuum pump.
3. Connect a nitrogen cylinder and regulator to system and
open until system pressure is 2 psig.
4. Close service valve and allow system to stand for 1 hr.
During this time, dry nitrogen will be able to diffuse
throughout the system, absorbing moisture.
5. Repeat this procedure. System will then contain minimal
amounts of contaminants and water vapor.
Refrigerant Charge
Amount of refrigerant charge is listed on unit nameplate. Refer to
Carrier GTAC II; Module 5; Charging, Recovery, Recycling, and
Reclamation section for charging methods and procedures. Unit
panels must be in place when unit is operating during charging
procedure.
Puron  (R-410A) refrigerant systems should be charged with
liquid refrigerant. Use a commercial type metering device in the
manifold hose.
UNIT OPERATION AND SAFETY HAZARD
Failure to follow this warning could cause personal
injury, death and/or equipment damage.
Puron (R−410A) refrigerant systems operate at higher
pressures than standard R−22 systems. Do not use R−22
service equipment or components on Puron refrigerant
equipment. Gauge set, hoses, and recovery system must
be designed to handle Puron refrigerant. If unsure
about equipment, consult the equipment manufacturer.
! WARNING
NOTE: Do not use recycled refrigerant as it may contain
contaminants.
No Charge
Use standard evacuating techniques. After evacuating system,
weigh in the specified amount of refrigerant (refer to unit
nameplate).
NOTE: System charge for units with Humidi-MiZer
 system is
greater than the system charge of the standard unit.
Low Charge Cooling
Using cooling charging chart (see Fig. 58−79), add or remove
refrigerant until conditions of the chart are met. An accurate
pressure gauge and temperature-sensing device is required.
Charging is accomplished by ensuring the proper amount of liquid
subcooling. Connect pressure gauge to the compressor discharge
service valve. Connect temperature sensing device to the liquid
line between the condenser and the TXV (thermostatic expansion
valve), and insulate it so that ambient temperature does not affect
reading.
To Use the Cooling Charging Chart, Standard Unit
NOTE: All circuits must be running in normal cooling mode.
Indoor airflow must be within specified air quantity limits for
cooling. (See Appendix D.) All outdoor fans must be on and
running at high speed. Use the Cooling Service Test Outdoor Fan
Override function to start all outdoor fans.
R410A R410A REFRIGERA REFRIGERANT NT
OUTDOOR OUTDOOR FAN FAN MUST MUST BE BE OPERATING OPERATING ON ON HIGH HIGH SPEED SPEED
20 20
40 40
60 60
80 80
100 100
120 120
140 140
160 160
150 150 200 200 250 250 300 300 350 350 400 400 450 450 500 500 550 550 600 600
Comp Compressor ressor Disch Discharge arge Pressu Pressure, re, [p [psig sig]
OutdoorO
u
td
o
o
r
CoilC
o
il
L
eavine
a
v in
g
Te
m
p
Te
m
p
eratue
ra
tu
re,re
,
[Deg[D
e
g
reesre
e s
F]F
]
Add dd Charge Charge if if Above bove the the Curve Curve
Remo Remove ve Charge Charge if if Below Below the the Curve Curve
C07038

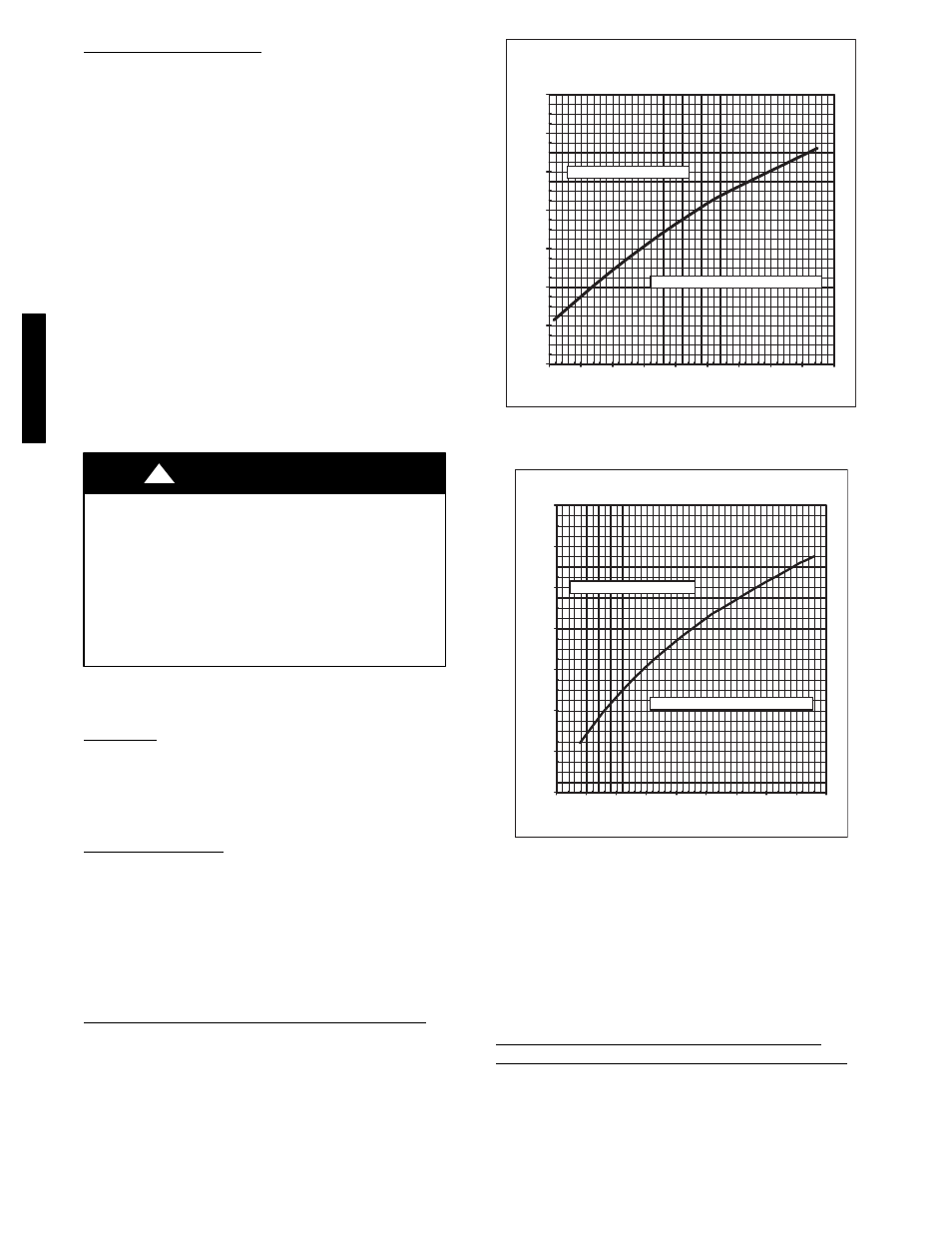

Fig. 58 − Charging Chart — 48/50PG03
R4 R410A RE REFRI RIGERANT RANT
OUTDOOR F R FAN M N M UST BE OPERATING ON H N HIGH S H SPEED
20 20
40 40
60 60
80 80
10 100
12 120
14 140
16 160
150 150 200 200 250 250 300 300 350 350 400 400 450 450 500 500 550 550 600 600
Co mp re ss ssor Disc isc h a rg e P re ss ssu re , [p sig sig]
Add Cha harge ge if Abov bove the the Cur urve
Re Rem ove Charge if Be Below the Curve
OutdoorO
u td
o
o
r
CoilC
o
il
L eavine
a
v in
g
Te
m
p
Te
m
p
eratue ra
tu
re,re
,
[Deg[D
e g
reesre
e
s
F]F
]
C07039
Fig. 59 − Charging Chart — 48/50PG04
Use the temperature and pressure readings, and find the
intersection point on the cooling charging chart. If intersection
point on chart is above line, add refrigerant. If intersection point on
chart is below line, carefully recover some of the charge. Recheck
suction pressure as charge is adjusted.
The TXV is set to maintain between 10 and 15 degrees of
superheat at the compressors. The valves are factory set and cannot
be adjusted. Do not use A TXV designed for use with R-22.
To Use the Cooling Charging Charts, Units With
Humidi−Mizer
t Adaptive Dehumidification System
NOTE: All circuits must be running in normal cooling mode.
Indoor airflow must be within specified air quantity limits for
cooling. (See Appendix D.) All outdoor fans must be on and
running at high speed. Use the Cooling Service Test Outdoor Fan
function (Service Test
→COOL→OF.OV) to start all outdoor fans.
48/50PG and PM
