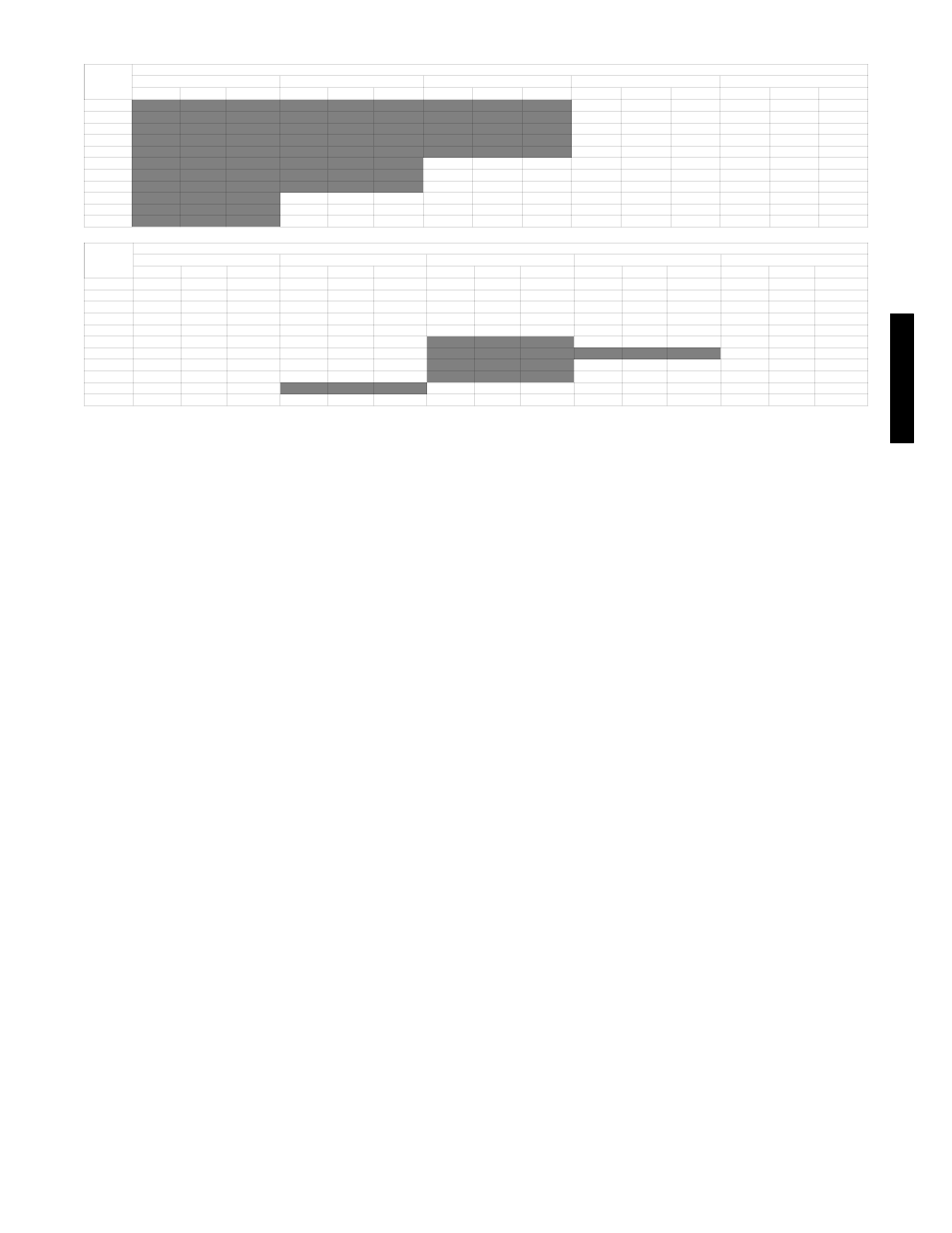

Fan Performance — 50PM16 Vertical Supply / Return Units
CFM
Available External Static Pressure (in. wg)
0.2
0.4
0.6
0.8
1.0
RPM
BHP
Drive
RPM
BHP
Drive
RPM
BHP
Drive
RPM
BHP
Drive
RPM
BHP
Drive
4500
467
0.67
A
544
0.87
A
615
1.09
A
687
1.35
A
-
-
-
4800
486
0.78
A
561
1.00
A
628
1.22
A
694
1.47
A
763
1.78
A
5100
506
0.91
A
578
1.13
A
642
1.36
A
704
1.61
A
768
1.91
A
5400
526
1.04
A
596
1.28
A
658
1.53
A
717
1.78
A
776
2.06
A
5700
547
1.19
A
614
1.45
A
674
1.70
A
731
1.96
A
786
2.25
A
6000
568
1.36
A
632
1.63
A
691
1.90
A
746
2.17
A
798
2.45
A
6300
589
1.54
A
651
1.82
A
708
2.11
A
761
2.39
A
812
2.68
A
6600
610
1.74
A
670
2.04
A
726
2.33
A
777
2.63
A
827
2.92
A
6900
632
1.96
A
689
2.27
A
743
2.58
A
794
2.88
A
842
3.19
A
7200
654
2.19
A
709
2.51
A
762
2.84
A
811
3.16
A
858
3.48
A
7500
676
2.45
A
729
2.78
A
780
3.12
A
829
3.45
A
874
3.79
A
CFM
Available External Static Pressure (in. wg)
1.2
1.4
1.6
1.8
2.0
RPM
BHP
Drive
RPM
BHP
Drive
RPM
BHP
Drive
RPM
BHP
Drive
RPM
BHP
Drive
4500
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
4800
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5100
834
2.26
A
-
-
-
-
-
-
-
-
-
-
-
-
5400
836
2.40
A
900
2.80
A
-
-
-
-
-
-
-
-
-
5700
842
2.57
A
901
2.94
A
-
-
-
-
-
-
-
-
-
6000
851
2.76
A
905
3.12
A
961
3.53
A
-
-
-
-
-
-
6300
862
2.99
A
913
3.33
A
965
3.72
A
1018
4.17
A
-
-
-
6600
875
3.24
A
923
3.58
A
971
3.95
A
1021
4.37
B
1073
4.85
B
6900
888
3.51
A
934
3.85
A
980
4.21
A
1027
4.62
B
1075
5.07
B
7200
903
3.80
A
947
4.15
A
991
4.51
B
1035
4.90
B
1080
5.33
B
7500
918
4.12
A
961
4.47
B
1003
4.83
B
1045
5.22
B
1088
5.64
B
LEGEND
BHP
-
Brake Horsepower (motor input to fan)
RPM
-
Revolutions Per Minute (fan speed)
Drive
-
Motor & Pulley Drive Option Based on 460V motor maximum BHP. See
notes on this page.
See General Notes for Fan Performance Data Tables.
NOTES:
Grey Cells indicate field-supplied pulley change required.
Do not exceed listed motor maximum BHP value.
Motor Drive Ranges
(A)Low Range:
208/230 and 460V - RPM Range - 685 to 939, Maximum BHP - 4.26
575V - RPM Range - 751 to 954 , Maximum BHP - 5.75
(B)
Mid-Low Range: All voltages,
RPM Range - 949 to 1206, Maximum BHP - 5.75
(C)
Mid-High Range: All voltages,
RPM Range - 941 to 1176, Maximum BHP - 8.63
(D)
High Range: Not Used
48/50PG and PM
