147

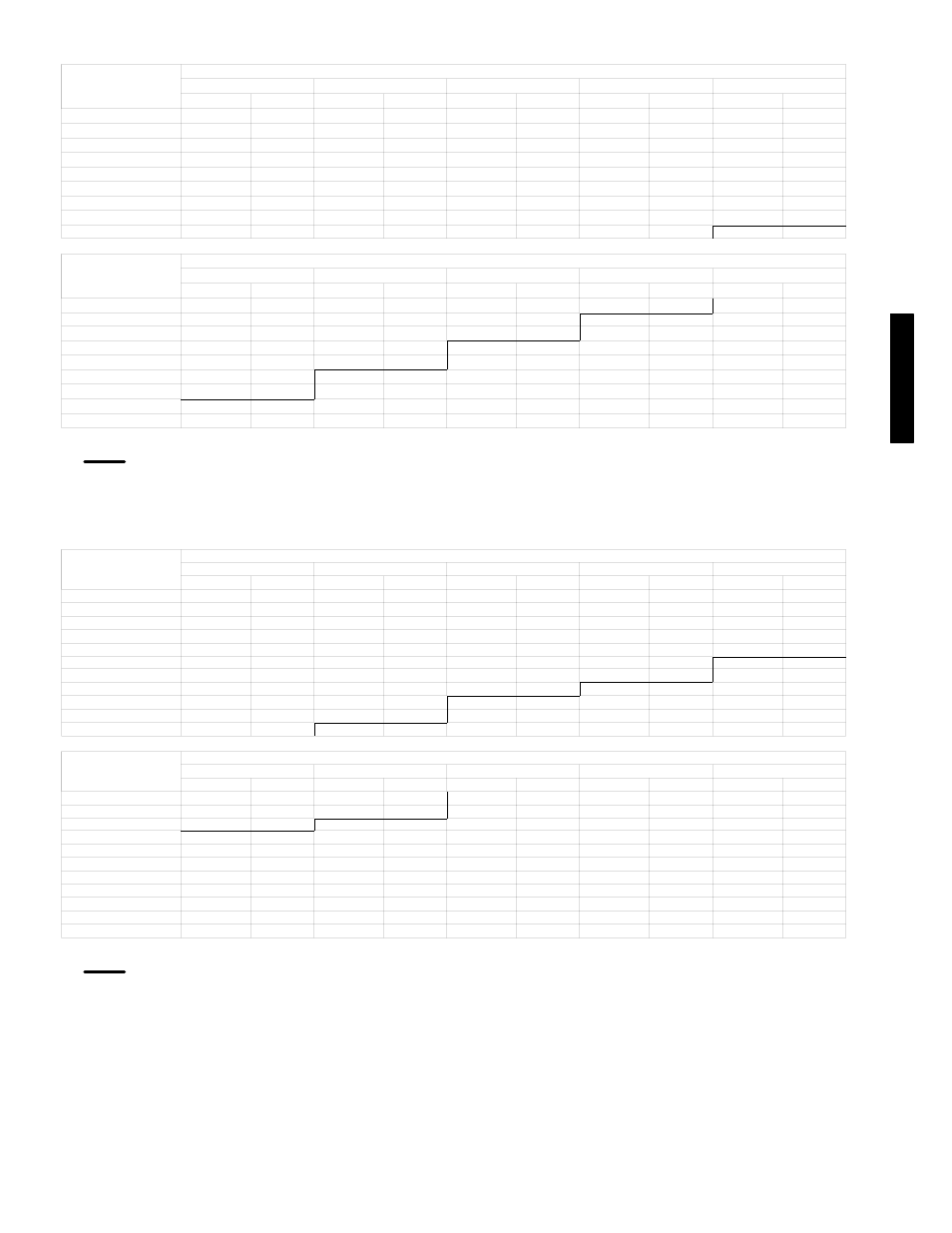

Fan Performance — 50PG05 Horizontal Units
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
0.2 0.4 0.6 0.8 1.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
1200 422 0.11 548 0.19 652 0.26 745 0.35 831 0.44
1300 439 0.13 561 0.21 662 0.29 752 0.38 835 0.47
1400 457 0.16 577 0.24 674 0.33 761 0.42 842 0.51
1500 477 0.19 593 0.27 688 0.37 773 0.46 851 0.56
1600 498 0.22 611 0.31 704 0.41 786 0.51 862 0.61
1700 521 0.25 630 0.35 720 0.46 801 0.56 875 0.67
1800 545 0.29 650 0.40 738 0.51 817 0.62 889 0.73
1900 569 0.34 672 0.45 757 0.57 834 0.68 904 0.80
2000 595 0.39 694 0.51 777 0.63 852 0.75 921 0.87
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
1.2 1.4 1.6 1.8 2.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
1200 911 0.53 986 0.63 1056 0.74 1123 0.85 1187 0.96
1300 913 0.57 986 0.68 1056 0.78 1122 0.90 1185 1.01
1400 918 0.62 989 0.72 1058 0.84 1123 0.95 1185 1.07
1500 925 0.67 995 0.78 1061 0.89 1125 1.01 1186 1.14
1600 934 0.72 1002 0.84 1067 0.95 1129 1.08 1189 1.21
1700 944 0.78 1010 0.90 1074 1.02 1135 1.15 1194 1.28
1800 956 0.85 1021 0.97 1083 1.09 1143 1.23 1200 1.36
1900 970 0.92 1033 1.04 1094 1.17 1152 1.31 1208 1.45
2000 985 1.00 1047 1.13 1106 1.26 1162 1.40 1217 1.54
LEGEND
Bhp - Brake Horsepower
High Range Motor/Drive Required
NOTES:
1. Motor drive range is 596 to 910 rpm for low range motor/drive and 828 to 1173 rpm
for high range motor/drive. All other rpms require a field‐supplied drive.
2. Maximum continuous bhp is 0.85 for low range motor/drive and 1.60 (single phase)
and 2.40 (3 phase) for high range motor/drive.
3. See General Fan Performance Notes.
Fan Performance — 50PG06 Horizontal Units
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
0.2 0.4 0.6 0.8 1.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
1500 491 0.19 604 0.28 697 0.37 781 0.47 859 0.57
1600 513 0.23 623 0.32 714 0.42 795 0.52 871 0.62
1700 537 0.27 643 0.37 731 0.47 810 0.57 884 0.68
1800 561 0.31 664 0.42 750 0.52 827 0.63 899 0.75
1900 586 0.36 686 0.47 770 0.58 845 0.70 915 0.82
2000 613 0.41 709 0.53 790 0.65 864 0.77 932 0.89
2100 640 0.47 732 0.60 812 0.72 884 0.85 950 0.97
2200 667 0.54 757 0.67 834 0.80 904 0.93 969 1.06
2300 695 0.61 782 0.75 857 0.89 926 1.02 989 1.16
2400 724 0.69 807 0.84 881 0.98 948 1.12 1010 1.26
2500 753 0.78 833 0.93 905 1.08 971 1.23 1032 1.38
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
1.2 1.4 1.6 1.8 2.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
1500 932 0.68 1002 0.79 1068 0.91 1132 1.03 1192 1.15
1600 942 0.73 1009 0.85 1074 0.97 1136 1.09 1196 1.22
1700 953 0.80 1019 0.91 1082 1.04 1143 1.17 1201 1.30
1800 966 0.86 1030 0.99 1092 1.11 1151 1.24 1208 1.38
1900 980 0.94 1043 1.06 1103 1.19 1161 1.33 1217 1.47
2000 996 1.02 1057 1.15 1115 1.28 1172 1.42 1227 1.56
2100 1012 1.11 1072 1.24 1129 1.38 1184 1.52 1238 1.67
2200 1030 1.20 1088 1.34 1144 1.48 1198 1.63 1251 1.78
2300 1049 1.30 1106 1.44 1160 1.59 1213 1.74 1265 1.89
2400 1068 1.41 1124 1.56 1178 1.71 1229 1.86 1279 2.02
2500 1089 1.53 1143 1.68 1196 1.84 1246 1.99 1295 2.16
LEGEND
Bhp - Brake Horsepower
Low Range Motor/Drive Required
NOTES:
1. Motor drive range is 690 to 978 for low range motor/drive and 929 to 1261 rpm for
high range motor/drive. All other rpms require a field‐supplied drive.
2. Maximum continuous bhp is 0.85 (single phase) and 2.40 (3 phase) for low range
motor/drive and 1.60 (single phase) and 2.40 (3 phase) for high range motor/drive.
3. See General Fan Performance Notes.
48/50PG and PM
