120

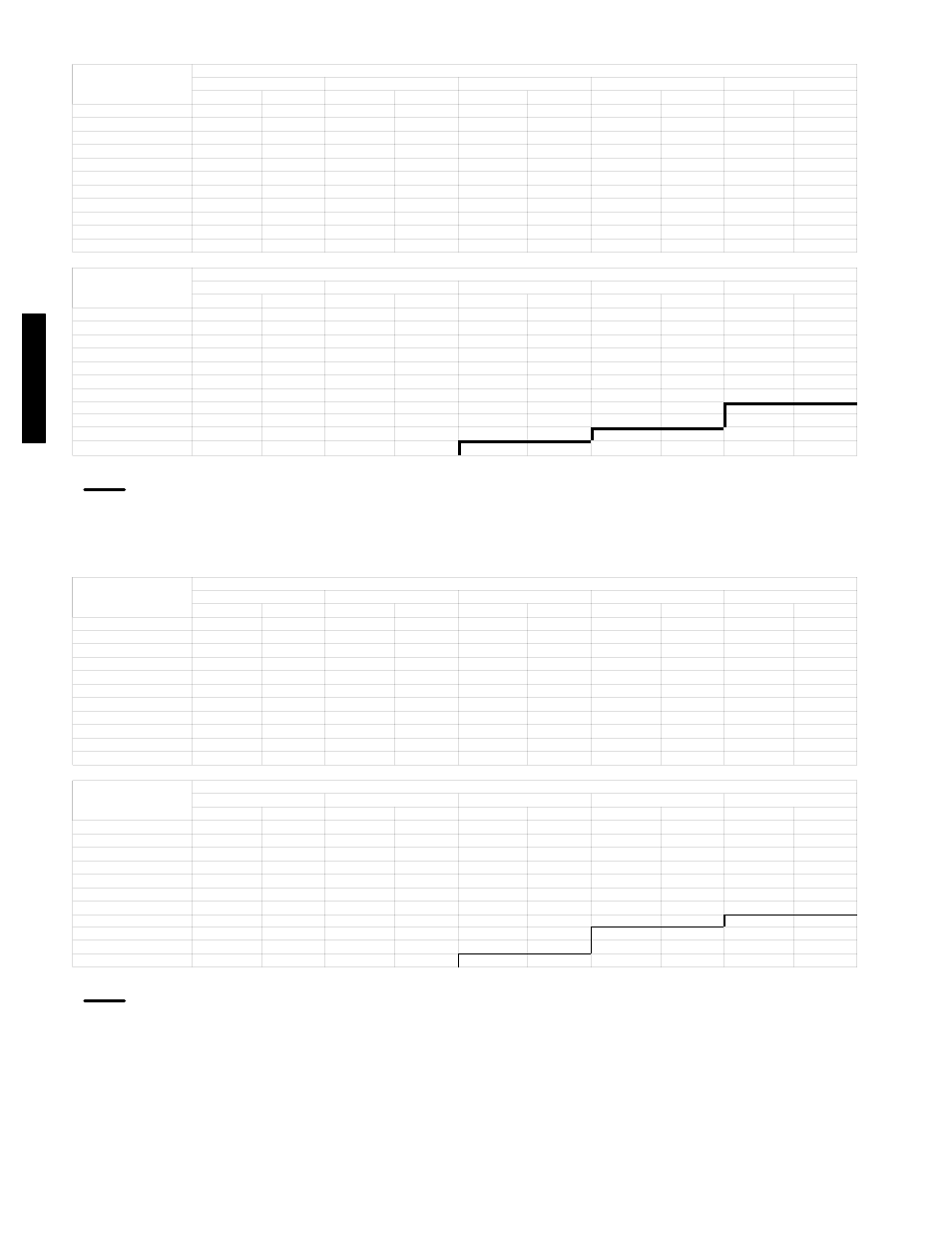

Fan Performance — 48PGE08 Vertical Units
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
0.2 0.4 0.6 0.8 1.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
2250 463 0.35 541 0.46 611 0.58 677 0.70 738 0.83
2400 481 0.41 556 0.52 623 0.64 687 0.77 747 0.90
2550 499 0.47 571 0.59 637 0.72 698 0.85 756 0.99
2700 518 0.54 587 0.66 650 0.80 710 0.93 766 1.08
2850 537 0.62 603 0.75 665 0.88 722 1.03 777 1.18
3000 556 0.70 620 0.84 680 0.98 735 1.13 789 1.28
3150 575 0.79 637 0.93 695 1.08 749 1.24 801 1.40
3300 595 0.89 655 1.04 711 1.19 764 1.35 814 1.52
3450 615 1.00 673 1.16 727 1.32 778 1.48 828 1.65
3600 635 1.12 691 1.28 744 1.44 794 1.62 842 1.79
3750 655 1.24 710 1.41 761 1.58 810 1.76 856 1.94
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
1.2 1.4 1.6 1.8 2.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
2250 797 0.96 852 1.10 904 1.25 954 1.40 1002 1.55
2400 803 1.04 857 1.19 909 1.34 958 1.49 1006 1.65
2550 811 1.13 864 1.28 914 1.44 963 1.60 1009 1.76
2700 820 1.23 871 1.38 921 1.54 968 1.71 1014 1.88
2850 829 1.33 879 1.49 928 1.66 974 1.83 1019 2.00
3000 840 1.44 888 1.61 936 1.78 981 1.95 1026 2.13
3150 851 1.56 898 1.73 944 1.90 989 2.08 1033 2.27
3300 862 1.69 909 1.86 954 2.04 998 2.23 1040 2.41
3450 875 1.82 920 2.00 964 2.19 1007 2.38 1049 2.57
3600 888 1.97 932 2.15 975 2.34 1017 2.54 1058 2.73
3750 901 2.12 944 2.31 987 2.51 1028 2.71 1068 2.91
LEGEND
Bhp - Brake Horsepower
High Range Motor/Drive Required
NOTES:
1. Motor drive range is 568 to 771 rpm for low range motor/drive and 812 to 1015 rpm
for high range motor/drive. All other rpms require a field‐supplied drive.
2. Maximum continuous bhp is 2.40 for low range motor/drive and 3.10 for high range
motor/drive.
3. See General Fan Performance Notes.
Fan Performance — 48PGF08 Vertical Units
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
0.2 0.4 0.6 0.8 1.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
2250 468 0.36 545 0.46 615 0.58 680 0.71 741 0.83
2400 486 0.41 560 0.53 627 0.65 691 0.78 750 0.91
2550 505 0.48 576 0.60 641 0.72 702 0.86 760 1.00
2700 524 0.55 592 0.68 655 0.81 714 0.95 771 1.09
2850 544 0.63 609 0.76 670 0.90 728 1.04 782 1.19
3000 564 0.71 627 0.85 686 1.00 741 1.14 794 1.30
3150 584 0.81 645 0.95 702 1.10 756 1.26 807 1.42
3300 604 0.91 663 1.06 719 1.22 771 1.38 821 1.54
3450 625 1.02 682 1.18 736 1.34 787 1.51 835 1.68
3600 646 1.15 701 1.31 753 1.48 803 1.65 850 1.82
3750 667 1.28 720 1.45 771 1.62 819 1.80 865 1.98
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
1.2 1.4 1.6 1.8 2.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
2250 799 0.97 854 1.11 907 1.26 957 1.40 1005 1.56
2400 807 1.05 860 1.20 912 1.35 961 1.50 1008 1.66
2550 815 1.14 867 1.29 918 1.45 966 1.61 1013 1.77
2700 824 1.24 875 1.40 925 1.56 972 1.72 1018 1.89
2850 834 1.35 884 1.51 932 1.67 979 1.84 1024 2.02
3000 845 1.46 894 1.63 941 1.80 986 1.97 1030 2.15
3150 857 1.58 904 1.75 950 1.93 995 2.11 1038 2.29
3300 869 1.71 916 1.89 960 2.07 1004 2.25 1046 2.44
3450 882 1.85 928 2.03 971 2.22 1014 2.41 1055 2.60
3600 896 2.00 940 2.19 983 2.38 1025 2.57 1065 2.77
3750 910 2.16 953 2.35 995 2.55 1036 2.75 1076 2.95
LEGEND
Bhp - Brake Horsepower
High Range Motor/Drive Required
NOTES:
1. Motor drive range is 568 to 771 rpm for low range motor/drive and 812 to 1015 rpm
for high range motor/drive. All other rpms require a field‐supplied drive.
2. Maximum continuous bhp is 2.40 for low range motor/drive and 3.10 for high range
motor/drive.
3. See General Fan Performance Notes.
48/50PG and PM
