156

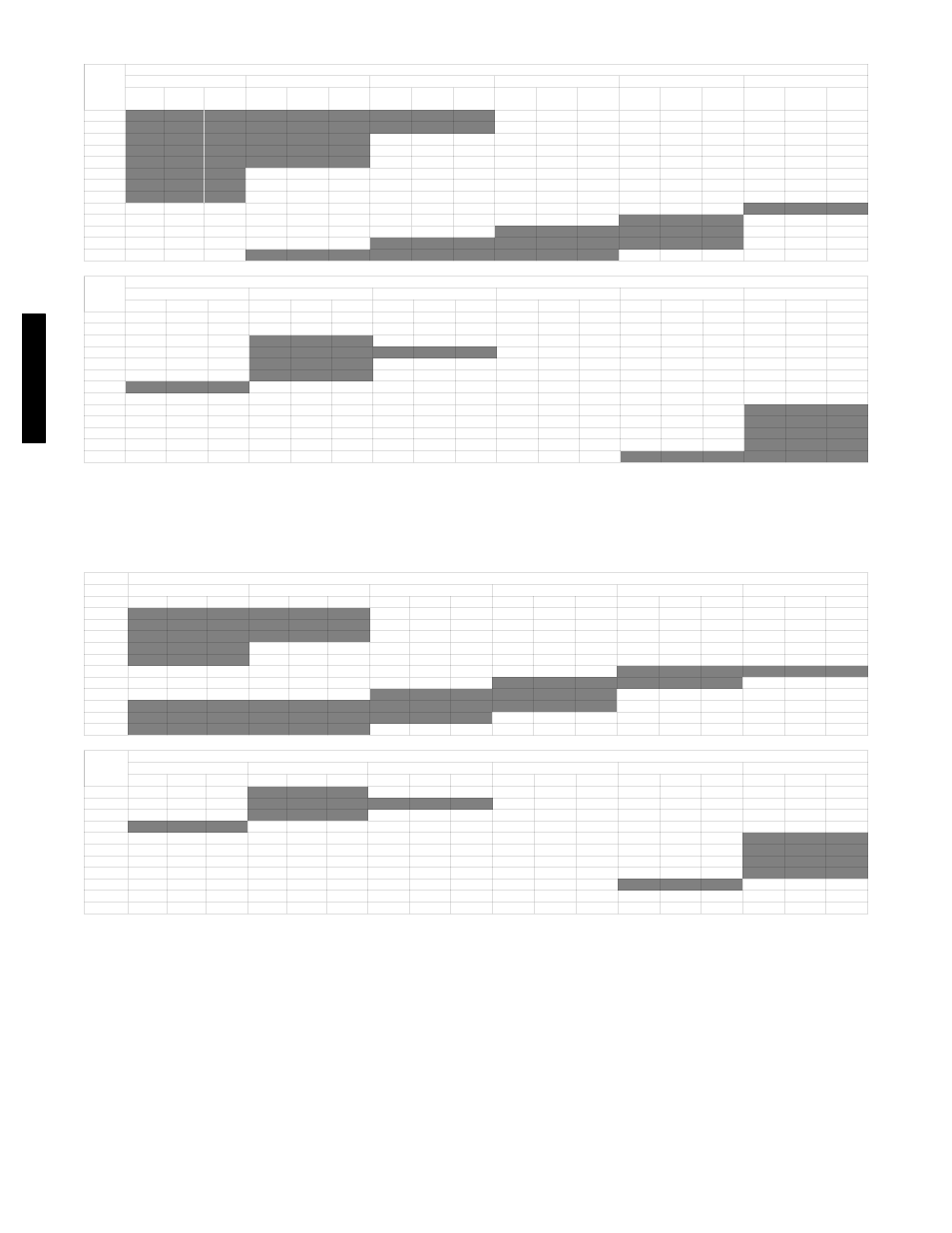

Fan Performance — 50PM20 — Vertical Supply/Return Units
CFM
Available External Static Pressure (in. wg)
0.2 0.4 0.6 0.8 1.0 1.2
RP
M
BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive
5400 526 1.04 A 596 1.28 A 658 1.53 A 717 1.78 A 776 2.06 A 836 2.40 A
5700 547 1.19 A 614 1.45 A 674 1.70 A 731 1.96 A 786 2.25 A 842 2.57 A
6000 568 1.36 A 632 1.63 A 691 1.90 A 746 2.17 A 798 2.45 A 851 2.76 A
6300 589 1.54 A 651 1.82 A 708 2.11 A 761 2.39 A 812 2.68 A 862 2.99 A
6600 610 1.74 A 670 2.04 A 726 2.33 A 777 2.63 A 827 2.92 A 875 3.24 A
6900 632 1.96 A 689 2.27 A 743 2.58 A 794 2.88 A 842 3.19 A 888 3.51 A
7200 654 2.19 A 709 2.51 A 762 2.84 A 811 3.16 A 858 3.48 A 903 3.80 A
7500 676 2.45 A 729 2.78 A 780 3.12 A 829 3.45 A 874 3.79 A 918 4.12 A
7800 698 2.72 A 749 3.06 A 799 3.42 A 846 3.77 A 891 4.11 A 934 4.46 B
8100 720 3.02 A 770 3.37 A 818 3.73 A 864 4.10 A 908 4.46 B 950 4.82 B
8400 743 3.33 A 791 3.70 A 837 4.07 A 883 4.45 B 926 4.83 B 967 5.20 B
8700 765 3.67 A 812 4.05 A 857 4.44 B 901 4.83 B 943 5.22 B 984 5.61 B
9000 788 4.03 A 833 4.42 B 877 4.82 B 920 5.23 B 961 5.63 B 1001 6.03 C
CFM
Available External Static Pressure (in. wg)
1.4 1.6 1.8 2.0 2.2 2.4
RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive
5400 900 2.80 A -- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
5700 901 2.94 A --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
6000 905 3.12 A 961 3.53 A --- --- --- --- --- --- --- --- --- --- --- ---
6300 913 3.33 A 965 3.72 A 1018 4.17 A --- --- --- --- --- --- --- --- ---
6600 923 3.58 A 971 3.95 A 1021 4.37 B 1073 4.85 B --- --- --- --- --- ---
6900 934 3.85 A 980 4.21 A 1027 4.62 B 1075 5.07 B 1124 5.57 B --- --- ---
7200 947 4.15 A 991 4.51 B 1035 4.90 B 1080 5.33 B 1126 5.81 C 1174 6.33 C
7500 961 4.47 B 1003 4.83 B 1045 5.22 B 1088 5.64 B 1131 6.09 C 1176 6.59 C
7800 975 4.81 B 1016 5.18 B 1057 5.56 B 1097 5.98 C 1138 6.42 C 1180 6.90 C
8100 991 5.18 B 1030 5.56 B 1069 5.94 C 1108 6.35 C 1147 6.78 C 1187 7.25 C
8400 1007 5.58 B 1045 5.96 C 1083 6.35 C 1120 6.75 C 1158 7.18 C 1196 7.64 C
8700 1023 5.99 C 1060 6.38 C 1097 6.78 C 1134 7.19 C 1170 7.62 C 1206 8.07 C
9000 1039 6.43 C 1076 6.84 C 1112 7.24 C 1148 7.66 C 1183 8.09 C 1218 8.53 C
LEGEND
Bhp - Brake Horsepower Input to Fan
Rpm - Fan speed
Drive - Drive option code based on 460V motor max BHP
Grey cells indicate field-supplied pulley change required.
Fan Performance — 50PM24 — Vertical Supply/Return Units
Available External Static Pressure (in. wg)
0.2 0.4 0.6 0.8 1.0 1.2
CFM RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive
6000 568 1.36 A 632 1.63 A 691 1.90 A 746 2.17 A 798 2.45 A 851 2.76 A
6400 596 1.61 A 657 1.89 A 714 2.18 A 767 2.47 A 817 2.76 A 866 3.07 A
6800 625 1.88 A 683 2.19 A 737 2.49 A 789 2.80 A 837 3.10 A 884 3.42 A
7200 654 2.19 A 709 2.51 A 762 2.84 A 811 3.16 A 858 3.48 A 903 3.80 A
7600 683 2.54 A 736 2.87 A 786 3.21 A 835 3.55 A 880 3.89 A 923 4.23 A
8000 713 2.91 A 763 3.27 A 812 3.63 A 858 3.99 A 903 4.34 B 945 4.70 B
8400 743 3.33 A 791 3.70 A 837 4.07 A 883 4.45 B 926 4.83 B 967 5.20 B
8800 773 3.79 A 819 4.17 A 864 4.56 B 907 4.96 B 949 5.36 B 990 5.75 B
9200 803 4.28 B 847 4.68 B 890 5.09 B 933 5.51 B 973 5.92 C 1013 6.33 C
9600 833 4.82 B 876 5.24 B 917 5.66 B 958 6.10 C 998 6.53 C 1036 6.96 C
10000 864 5.41 B 905 5.84 C 945 6.28 C 984 6.73 C 1023 7.18 C 1060 7.63 C
CFM
Available External Static Pressure (in. wg)
1.4 1.6 1.8 2.0 2.2 2.4
RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive RPM BHP Drive
6000 905 3.12 A 961 3.53 A --- --- --- --- --- --- --- --- --- --- --- ---
6400 916 3.41 A 967 3.80 A 1019 4.23 A 1073 4.72 B --- --- --- --- --- ---
6800 930 3.75 A 977 4.12 A 1025 4.53 B 1074 4.99 B 1124 5.50 B --- --- ---
7200 947 4.15 A 991 4.51 B 1035 4.90 B 1080 5.33 B 1126 5.81 C 1174 6.33 C
7600 966 4.58 B 1007 4.94 B 1049 5.33 B 1091 5.74 B 1133 6.20 C 1177 6.69 C
8000 986 5.06 B 1025 5.43 B 1065 5.81 C 1104 6.22 C 1144 6.66 C 1185 7.13 C
8400 1007 5.58 B 1045 5.96 C 1083 6.35 C 1120 6.75 C 1158 7.18 C 1196 7.64 C
8800 1028 6.14 C 1066 6.53 C 1102 6.93 C 1138 7.34 C 1174 7.77 C 1210 8.22 C
9200 1050 6.74 C 1087 7.15 C 1123 7.56 C 1157 7.98 C 1192 8.42 C 1226 8.86 D
9600 1073 7.39 C 1109 7.81 C 1144 8.24 C 1178 8.67 D 1211 9.11 D 1244 9.56 D
10000 1096 8.08 C 1131 8.52 C 1165 8.97 D 1198 9.41 D 1231 9.86 D 1263 10.32 D
LEGEND
Bhp - Brake Horsepower Input to Fan
Rpm - Fan speed
Drive - Drive option code based on 460V motor max BHP
Grey cells indicate field-supplied pulley change required.
48/50PG and PM
