Carrier 48/50PM C16-28 - Manual (Page 135)

135

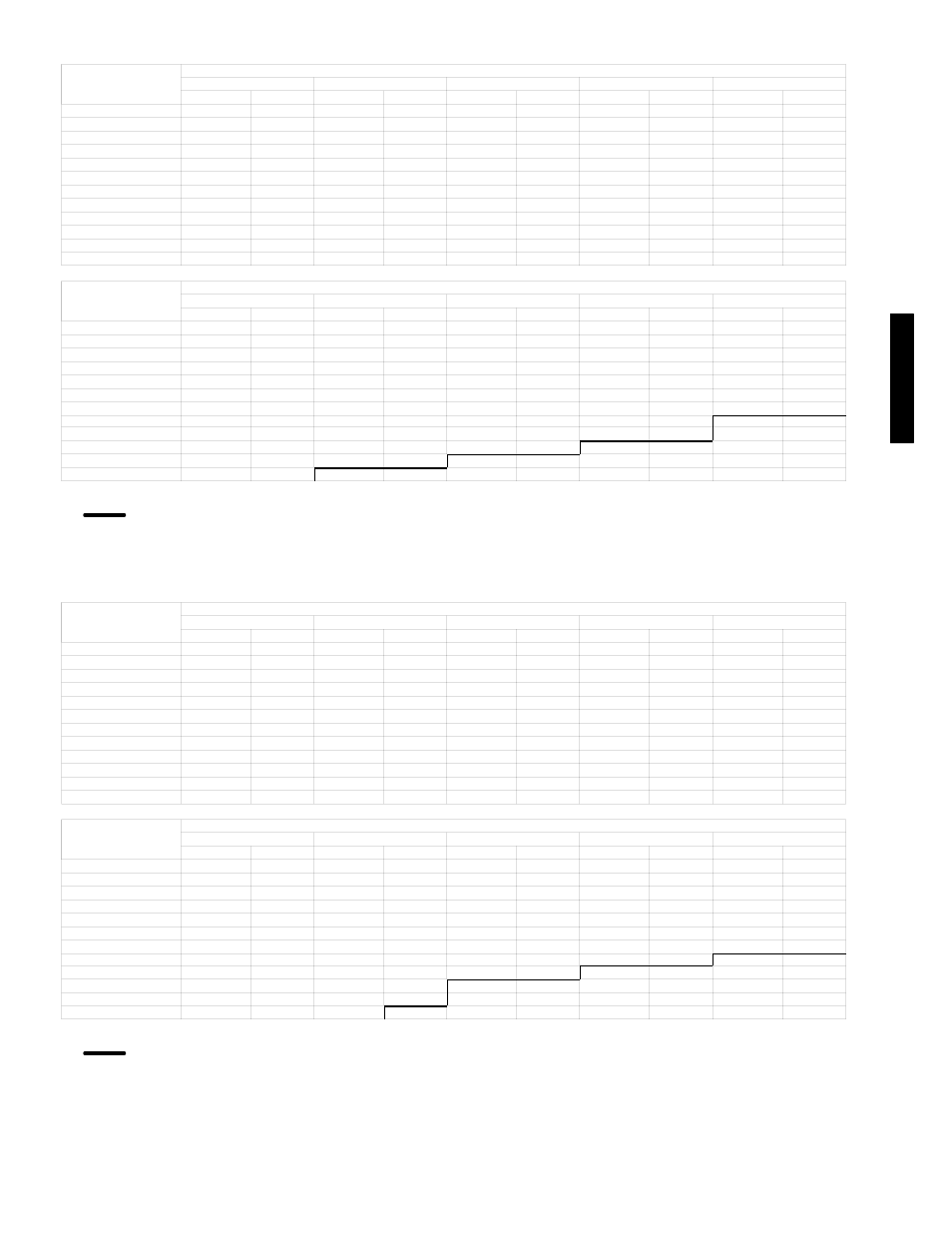

Fan Performance — 48PGD09 Horizontal Units
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
0.2 0.4 0.6 0.8 1.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
2550 436 0.38 515 0.49 585 0.62 650 0.74 710 0.88
2700 450 0.43 527 0.55 595 0.68 658 0.81 717 0.95
2850 465 0.49 539 0.62 606 0.75 667 0.89 724 1.03
3000 480 0.56 552 0.69 617 0.83 676 0.97 732 1.12
3150 496 0.63 566 0.77 629 0.91 687 1.06 741 1.21
3300 511 0.70 579 0.85 641 1.00 698 1.16 751 1.31
3450 527 0.79 593 0.94 653 1.10 709 1.26 761 1.42
3600 543 0.88 608 1.04 666 1.21 721 1.37 772 1.54
3750 560 0.98 622 1.15 680 1.32 733 1.49 783 1.66
3900 576 1.08 637 1.26 693 1.44 745 1.61 794 1.79
4050 593 1.19 652 1.38 707 1.56 758 1.75 806 1.93
4200 610 1.32 668 1.51 721 1.70 771 1.89 818 2.08
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
1.2 1.4 1.6 1.8 2.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
2550 768 1.02 822 1.16 874 1.32 924 1.47 973 1.63
2700 773 1.10 826 1.25 877 1.40 927 1.56 974 1.73
2850 779 1.18 831 1.34 881 1.50 929 1.66 976 1.83
3000 786 1.27 837 1.43 886 1.60 933 1.77 979 1.94
3150 793 1.37 843 1.54 891 1.70 938 1.88 983 2.06
3300 802 1.48 851 1.65 898 1.82 943 2.00 987 2.18
3450 811 1.59 859 1.76 905 1.94 949 2.12 992 2.31
3600 820 1.71 867 1.89 912 2.07 956 2.26 998 2.45
3750 830 1.84 876 2.02 920 2.21 963 2.40 1005 2.60
3900 841 1.98 886 2.16 929 2.35 971 2.55 1012 2.75
4050 852 2.12 896 2.31 938 2.51 980 2.71 1020 2.91
4200 863 2.27 906 2.47 948 2.67 989 2.88 1028 3.09
LEGEND
Bhp - Brake Horsepower
High Range Motor/Drive Required
NOTES:
1. Motor drive range is 568 to 771 rpm for low range motor/drive and 812 to 1015 rpm
for high range motor/drive. All other rpms require a field‐supplied drive.
2. Maximum continuous bhp is 2.40 for low range motor/drive and 3.70 for high range
motor/drive.
3. See General Fan Performance Notes.
Fan Performance — 48PGE09 Horizontal Units
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
0.2 0.4 0.6 0.8 1.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
2550 440 0.38 519 0.50 588 0.62 653 0.75 713 0.88
2700 457 0.44 532 0.56 600 0.69 662 0.82 721 0.96
2850 473 0.50 547 0.63 612 0.77 673 0.90 730 1.05
3000 490 0.57 561 0.71 625 0.85 684 0.99 740 1.14
3150 507 0.65 576 0.79 638 0.94 695 1.08 750 1.24
3300 524 0.73 591 0.88 651 1.03 708 1.19 760 1.34
3450 542 0.82 606 0.98 665 1.13 720 1.29 772 1.46
3600 559 0.92 622 1.08 679 1.24 733 1.41 783 1.58
3750 577 1.02 638 1.19 694 1.36 746 1.53 795 1.71
3900 594 1.13 654 1.31 708 1.49 759 1.66 808 1.84
4050 612 1.25 670 1.44 723 1.62 773 1.80 821 1.99
4200 630 1.38 686 1.57 738 1.76 787 1.95 834 2.14
AIRFLOW
(Cfm)
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
1.2 1.4 1.6 1.8 2.0
Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp
2550 770 1.03 825 1.17 877 1.32 927 1.48 975 1.64
2700 777 1.11 830 1.26 881 1.42 930 1.58 977 1.74
2850 784 1.20 836 1.35 886 1.51 934 1.68 981 1.85
3000 793 1.29 843 1.45 892 1.62 939 1.79 985 1.96
3150 801 1.40 851 1.56 899 1.73 945 1.91 990 2.09
3300 811 1.51 859 1.68 906 1.85 951 2.03 995 2.21
3450 821 1.63 868 1.80 914 1.98 958 2.16 1001 2.35
3600 831 1.75 878 1.93 923 2.11 966 2.30 1008 2.49
3750 843 1.89 888 2.07 932 2.26 974 2.45 1016 2.65
3900 854 2.03 898 2.22 941 2.41 983 2.61 1024 2.81
4050 866 2.18 909 2.37 951 2.57 992 2.77 1032 2.98
4200 878 2.34 921 2.54 962 2.74 1002 2.95 1041 3.16
LEGEND
Bhp - Brake Horsepower
High Range Motor/Drive Required
NOTES:
1. Motor drive range is 568 to 771 rpm for low range motor/drive and 812 to 1015 rpm
for high range motor/drive. All other rpms require a field‐supplied drive.
2. Maximum continuous bhp is 2.40 for low range motor/drive and 3.70 for high range
motor/drive.
3. See General Fan Performance Notes.
48/50PG and PM
