Example 3, Example 4, Example 5 – Rockwell Automation 20A PowerFlex 70EC/700VC User Manual

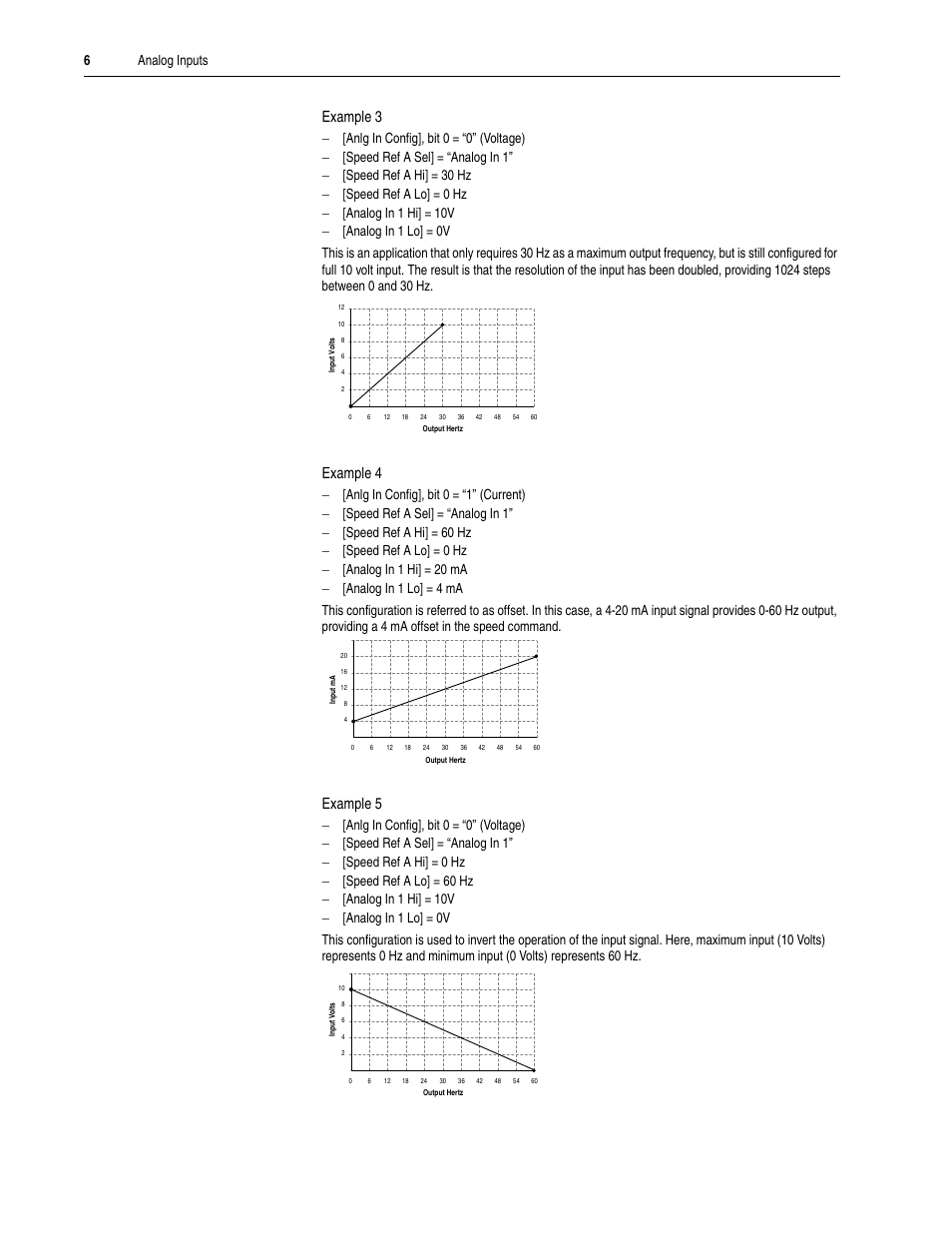

Page 10: 6analog inputs
This manual is related to the following products:
