Post-Installation Tasks Chapter 5
Rockwell Automation Publication HSE-IN024A-EN-E–December 2012 59

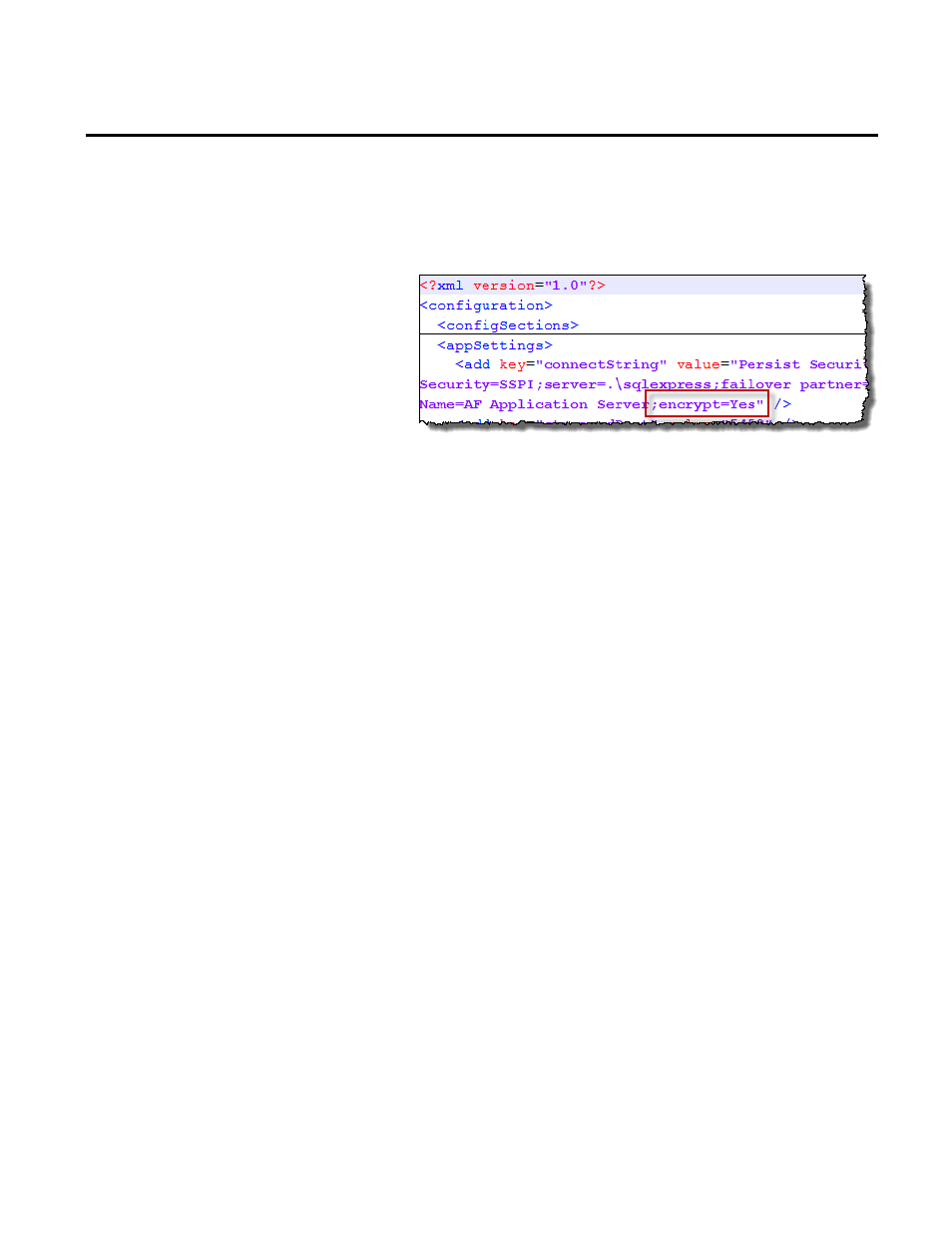

• If you want to enable the encrypted communication
between the AF service and the AF SQL database, add the
encrypt=Yes attribute to the code, for example:
• If you want to configure other options, refer to the
Microsoft SQL Native Client documentation.
4. Save the file.
5. If the Asset Framework service is running, restart it for the
changes to take effect:
1. Go to Start > All Programs > Administrative Tools >
Services.
2. In the Services dialog box, right-click PI AF Server 2.x and
select Restart.
Once you have the FactoryTalk Historian Asset Framework and the
FactoryTalk Historian SE Server installed, you need to set up
synchronization between the AF service and the Historian server.
This process is called the
MDB to AF transition. For more
information, refer to the FT Historian SE MDB to AF Transition
Guide.
To verify the MDB to AF synchronization:
1. Click Start > All Programs > Rockwell Software > FactoryTalk
Historian SE > System Management Tools. The System
Management Tools dialog box appears.
Perform the MDB to AF
Synchronization
Verify the MDB to AF
Synchronization
