C-4 Configuring the Daisy Chain Configuration
Configure the SynchLink Module

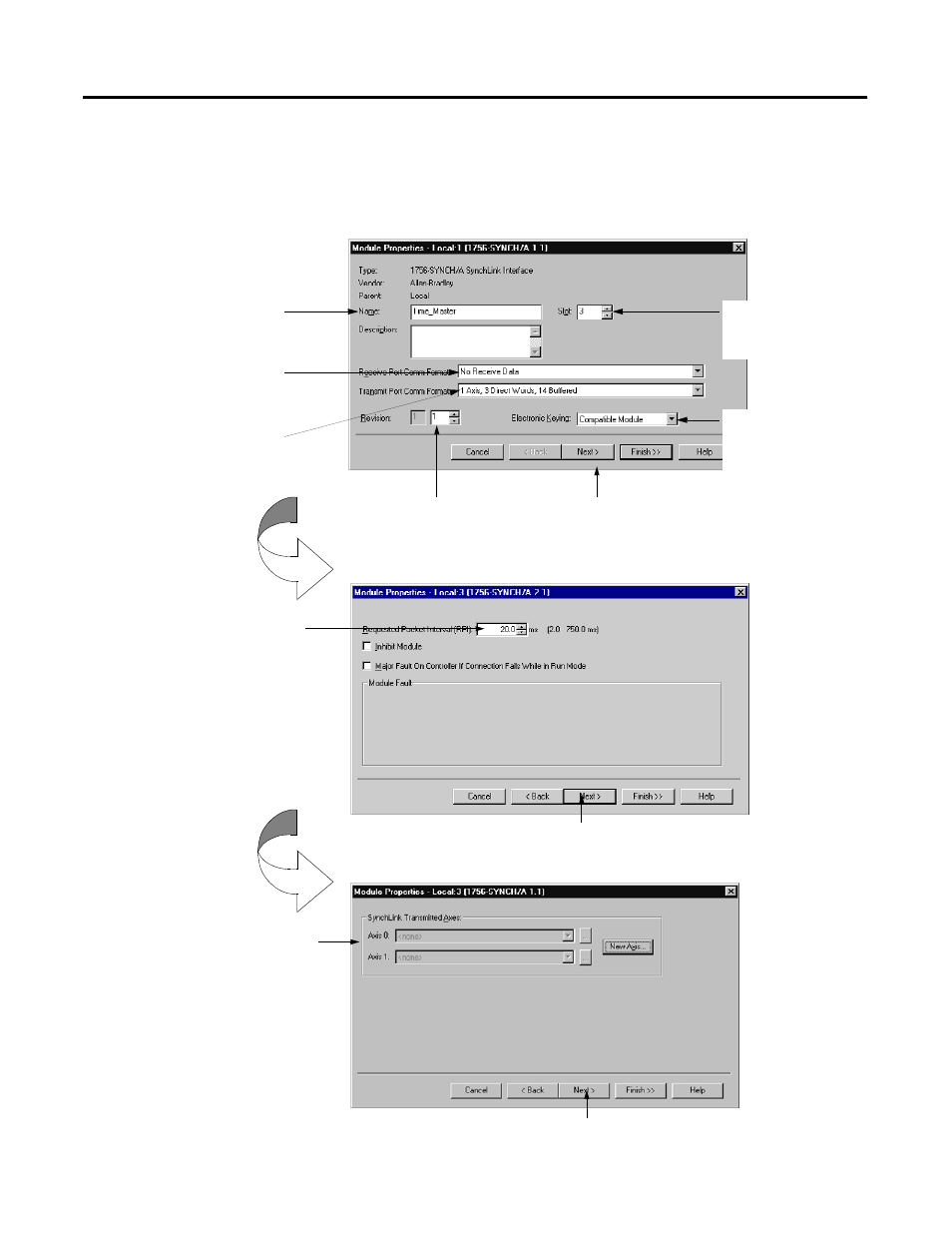

1. Use the new module creation wizard as shown below.
E. Electronic Keying
method is Compatible
Module.
G. Click here after
completing the
information on this page.
F. Minor Revision = 1.
A. Module name is
Time_Master.
B. Receive Port Comm Format is
No Receive Data.
C. Transmit Port Comm Format is
2 Direct Words, 18 Buffered.
D. Module slot number
is 3 as shown in the
graphic on page C-1.
Click here to move to the next page
Requested Packet Interval = 20mS
Click here to move to the next page
This module does not transmit any
SynchLink axes.
