Publication 1756-UM521C-EN-P - July 2004

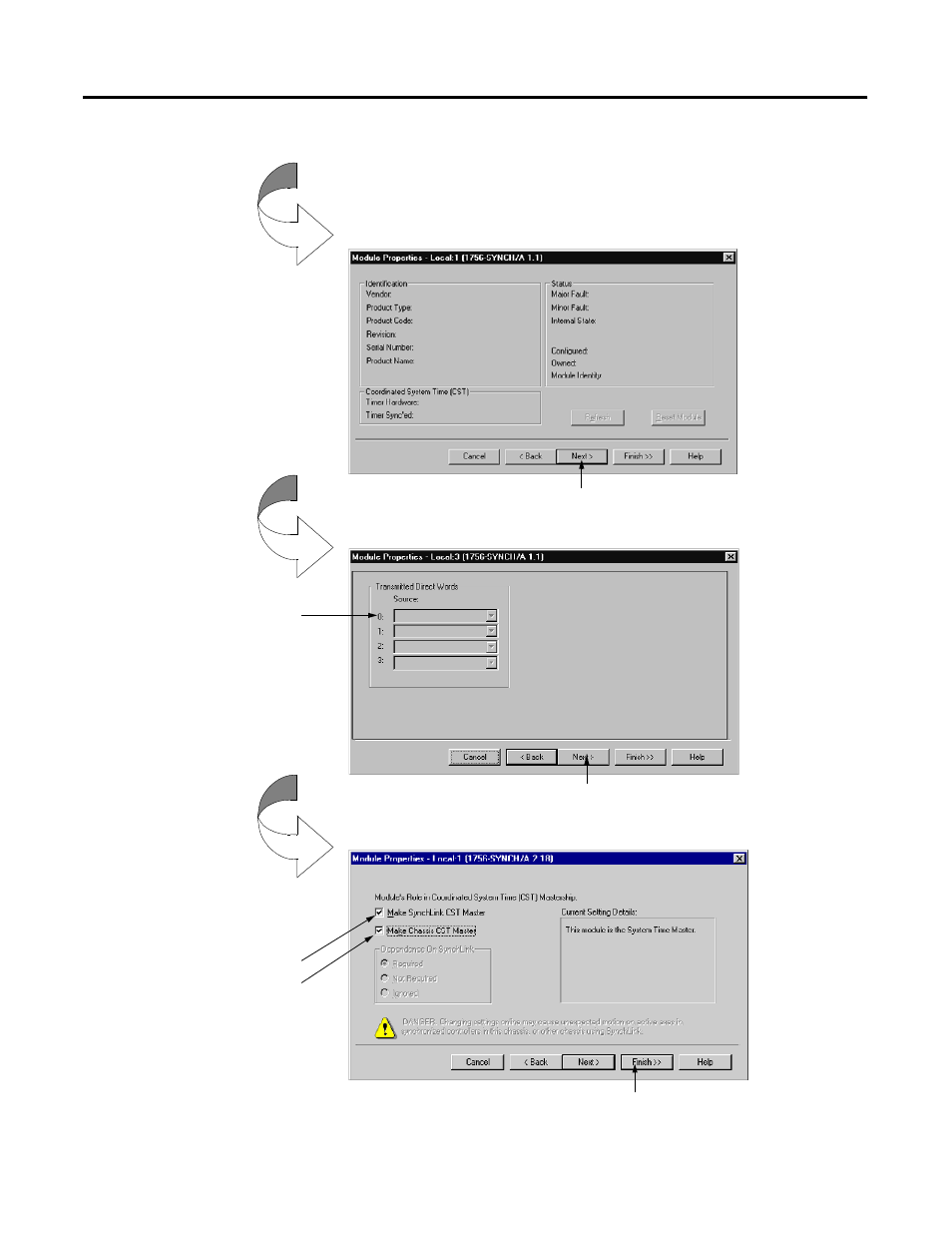

B-6 Configuring the Star Configuration
Click here to move to the next page
Click here to move to the next page
The module does not transmit any
direct words because the
Communications Format only calls
for Axis data.
The Module Identification page
is blank during initial
The module is configured as the Time
Master for:
• the chassis - optional
• the SynchLink - required
IMPORTANT: In this configuration,
the SynchLink module must be the
Time Master of the SynchLink, but it
is not required to be the Time Master
of the chassis. If the module is not
the Time Master of the chassis, it
receives the CST timer value from the
chassis backplane.
Click here to finish configuration.
