Removing the module, Chapter summary and what’s next – Rockwell Automation 1756-SYNCH ControlLogix SynchLink Module User Manual User Manual
Page 52
Publication 1756-UM521C-EN-P - July 2004
4-4 Installing the SynchLink Module
Removing the Module
1. Pull the fiber optic cable out of the connection port.
2. Push in the top and bottom locking tabs.
3. Pull the module out of the chassis as shown.

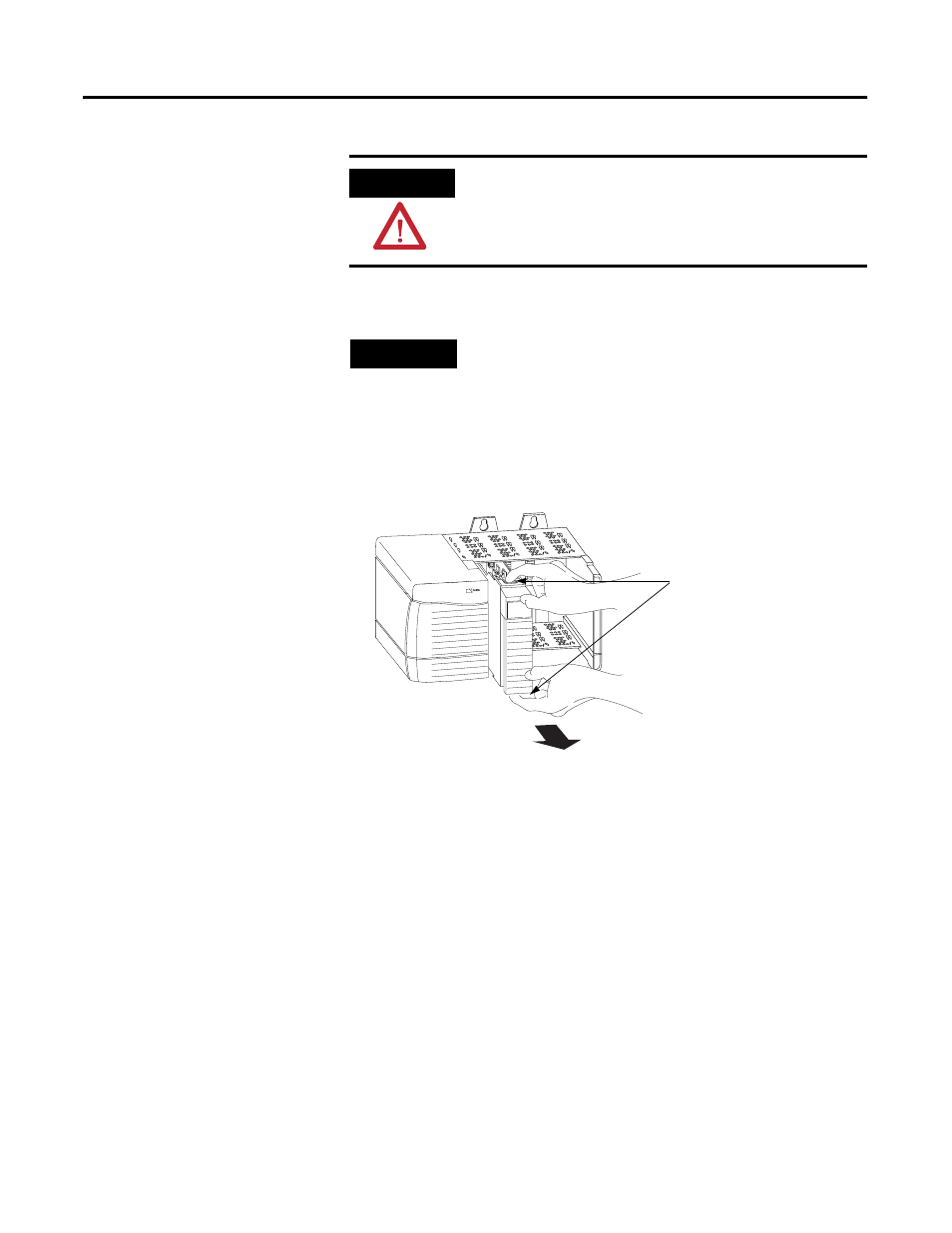

Figure 4.4
Chapter Summary and
What’s Next
In this chapter, you read about how to install the ControlLogix SynchLink
module. For information about Configuring the SynchLink Module, see
Chapter 5.
ATTENTION
Before you remove the module, you must disconnect the
fiber optic cables.
TIP
If you kept the plugs that were removed to connect the
fiber optic cables, reinsert them to protect the ports.
20808-M
Locking tabs
