Configuring the Daisy Chain Configuration C-15

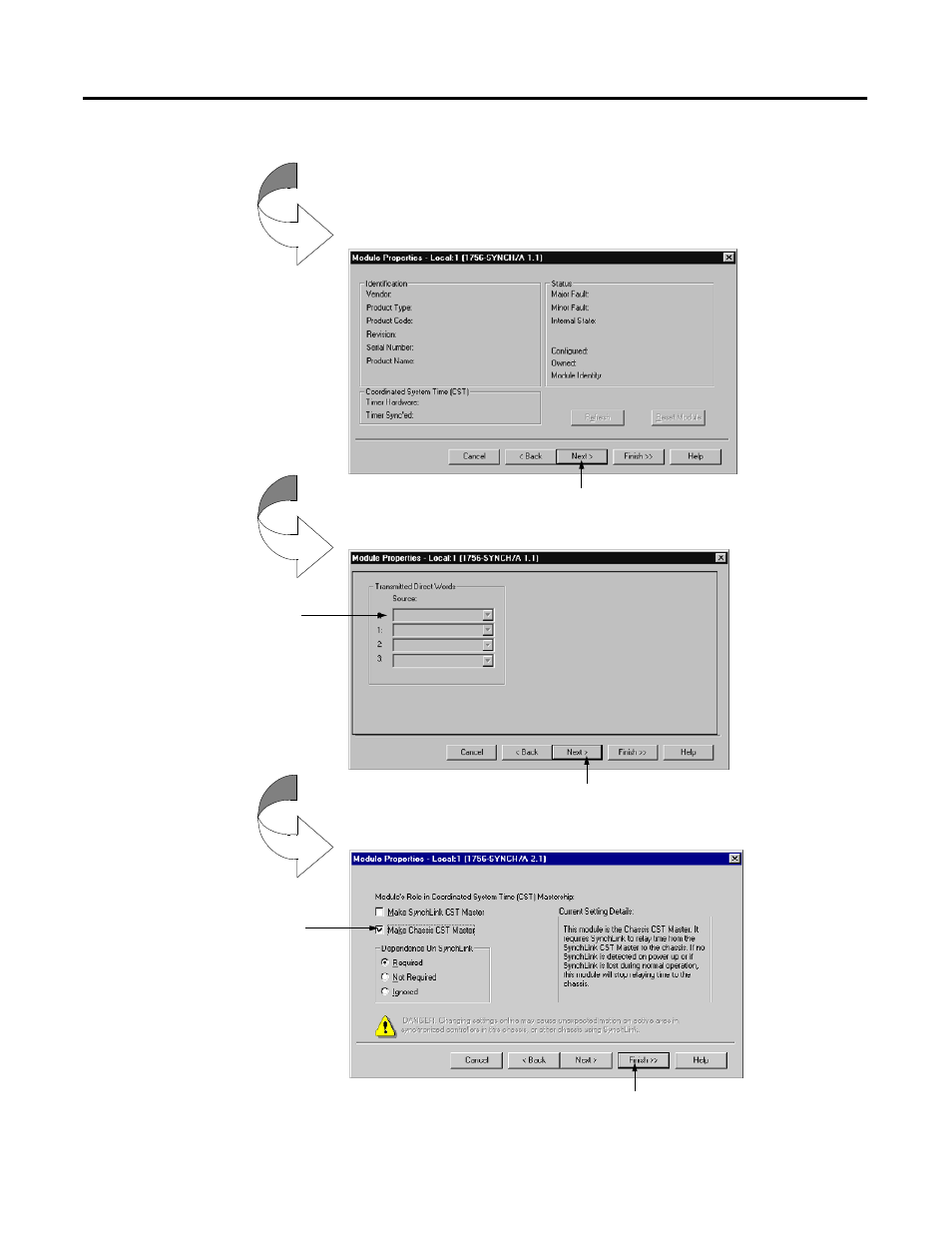

Click here to move to the next page
Click here to move to the next page
As the end node in the Daisy Chain
configuration, this module does not
transmit any Direct Words.
The Module Identification page is
blank during initial configuration.
Time slave modules must be
configured as Time Masters
for their respective chassis if
you want to synchronize each
chassis’ CST time value with
the CST Time Master.
Click here to finish configuration.
