1-4 What is the 1756-SYNCH module?

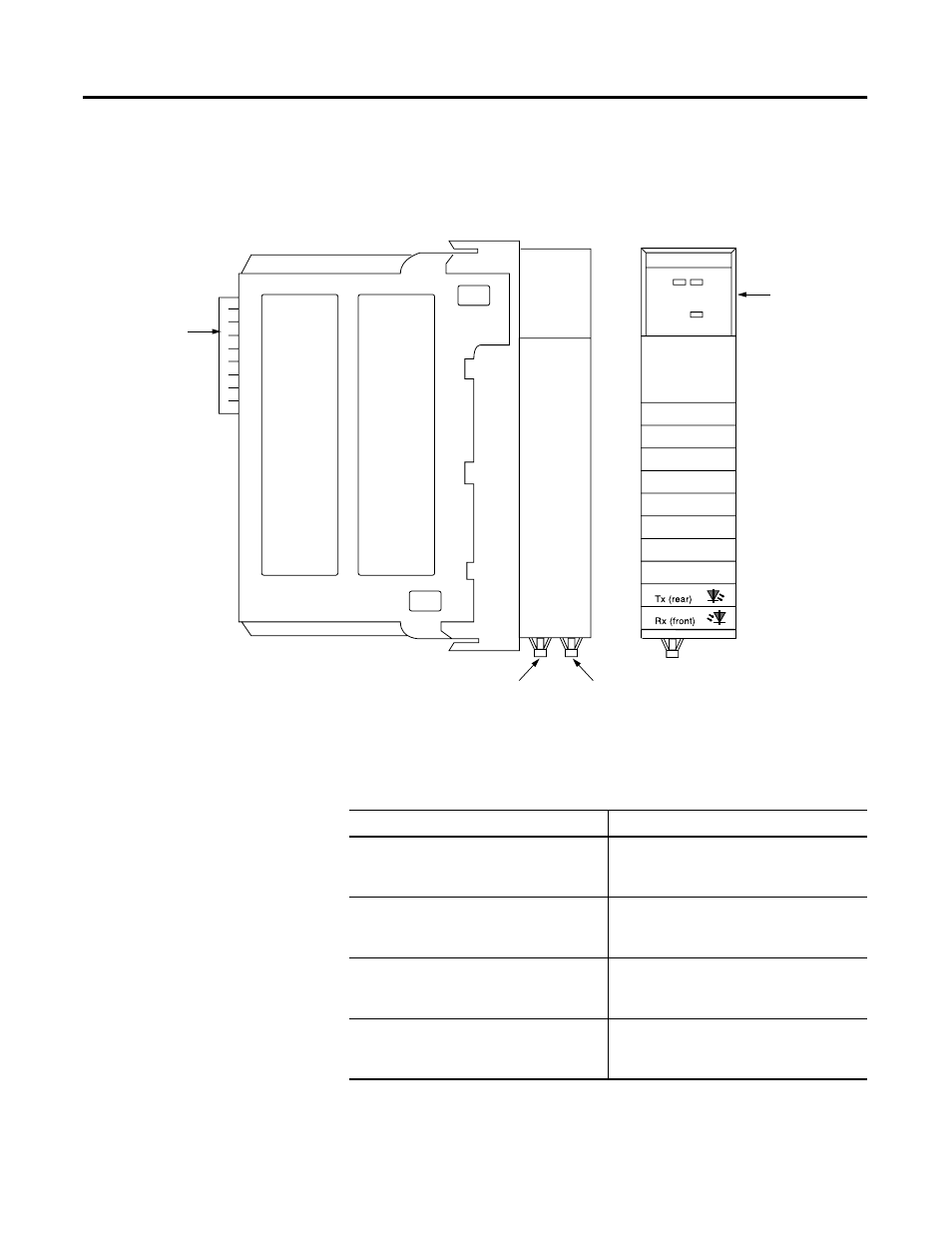

Physical Features of the ControlLogix SynchLink Module
Figure 1.1
Table 1.4 lists descriptions of the physical features shown in Figure 1.1.
Backplane
Connector- Interface
to the ControlLogix
system backplane
Status
Indicators
42744
LINK
SYNC
OK
Module side view Module front view
LINK
COMM
Transmit
Fiber Port Receive
Fiber Port
Table 1.4
Physical Feature: Description:
Backplane connector The backplane connector connects the
module to the ControlLogix chassis
backplane.
Status indicators The status indicators display the module’s
communications and SynchLink system
status.
Transmit fiber port The transmit fiber port allows connection
(via fiber optic cables) to other SynchLink
modules so the module can send data.
Receive fiber port The receive fiber port allows connection (via
fiber optic cables) to other SynchLink
modules so the module can receive data.
