Configuring the Star Configuration B-3

Create a New RSLogix 5000 Project

1. Use the File menu to create a new project.

2. Name the controller.

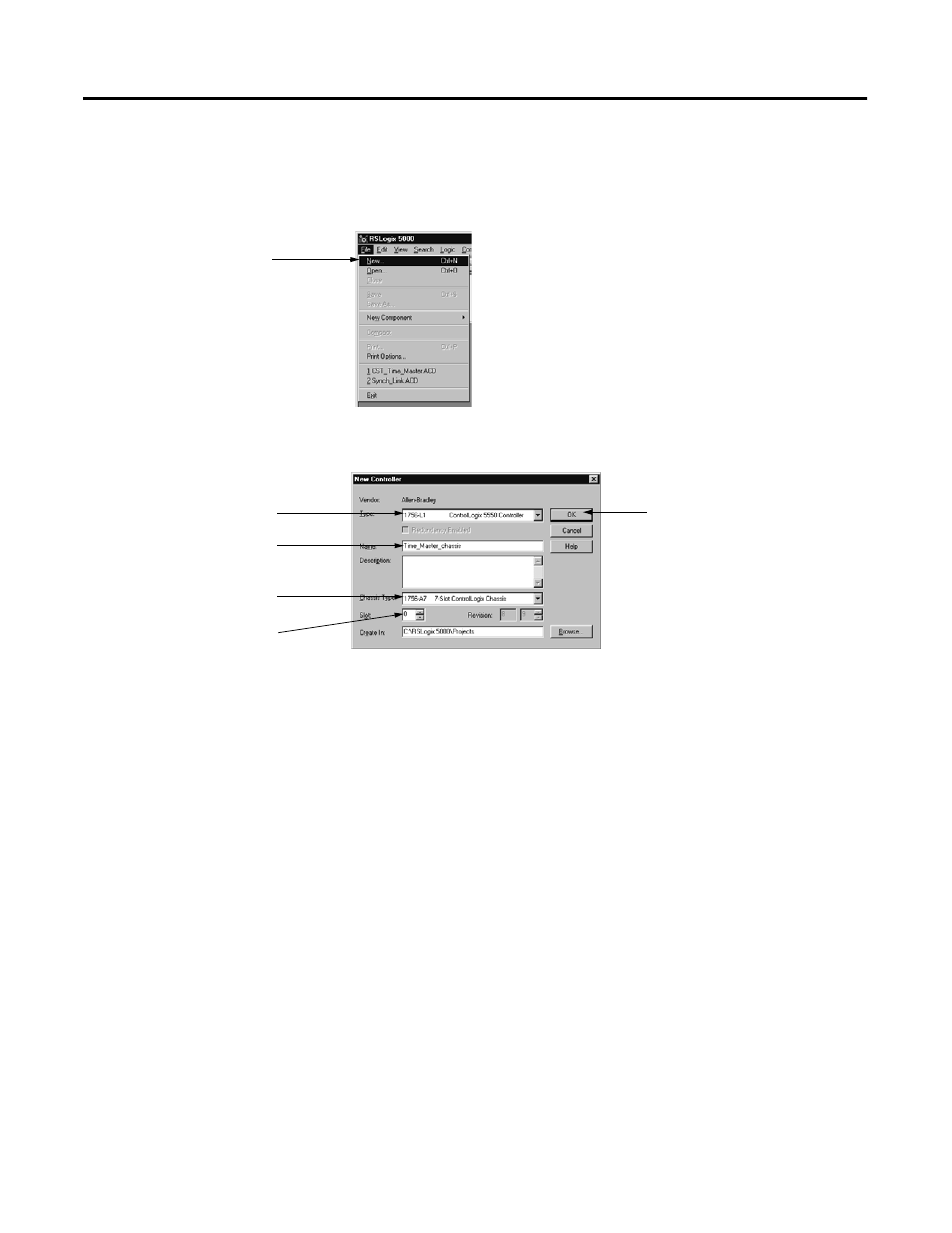

Choose a New project
from the File menu.

E. Click here to use the

new controller.

A. This controller is a 1756-L1.

B. This controller is named

Time_Master_chassis.

C. This controller is used in a

7-slot chassis.

D. The controller slot number

is 0.
