Publication 1756-UM521C-EN-P - July 2004

B-8 Configuring the Star Configuration

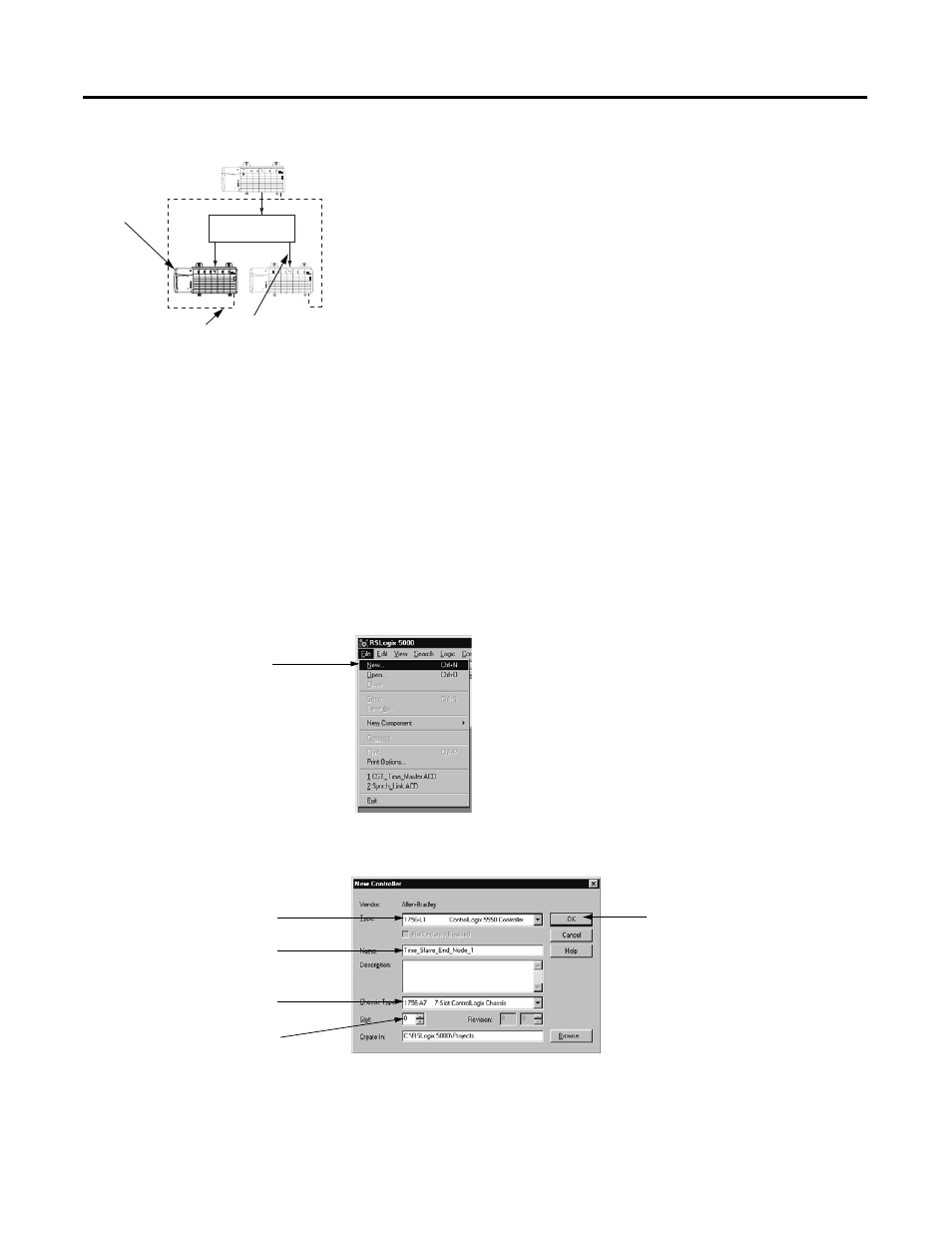

Configure Time Slave Chassis - End Node

You must complete the following tasks to configure the first time
slave chassis.

Create a New RSLogix 5000 Project
Add a SynchLink Module
Configure the SynchLink Module

Name the module
Choose a receive communications format
Choose a transmit communications format
Choose an electronic keying option
Set the RPI
Set the module as the CST Time Master for the chassis

Create Axis Data Tags
Download Configuration

Create a New RSLogix 5000 Project

1. Use the File menu to create a new project.

2. Name the controller.

CST Time

Slave Chassis

ControlNet

SynchLink

Hub

Choose a New project
from the File menu.

A. The controller is a 1756-L1.

B. The controller is named

Time_Slave_End_Node_1.

C. The controller is used in a

7-slot chassis.

D. The controller’s slot location

is 0.

F. Click here to use the

new controller.
