Publication 1756-UM521C-EN-P - July 2004
Configuring the Star Configuration B-15
Configure the SynchLink Module

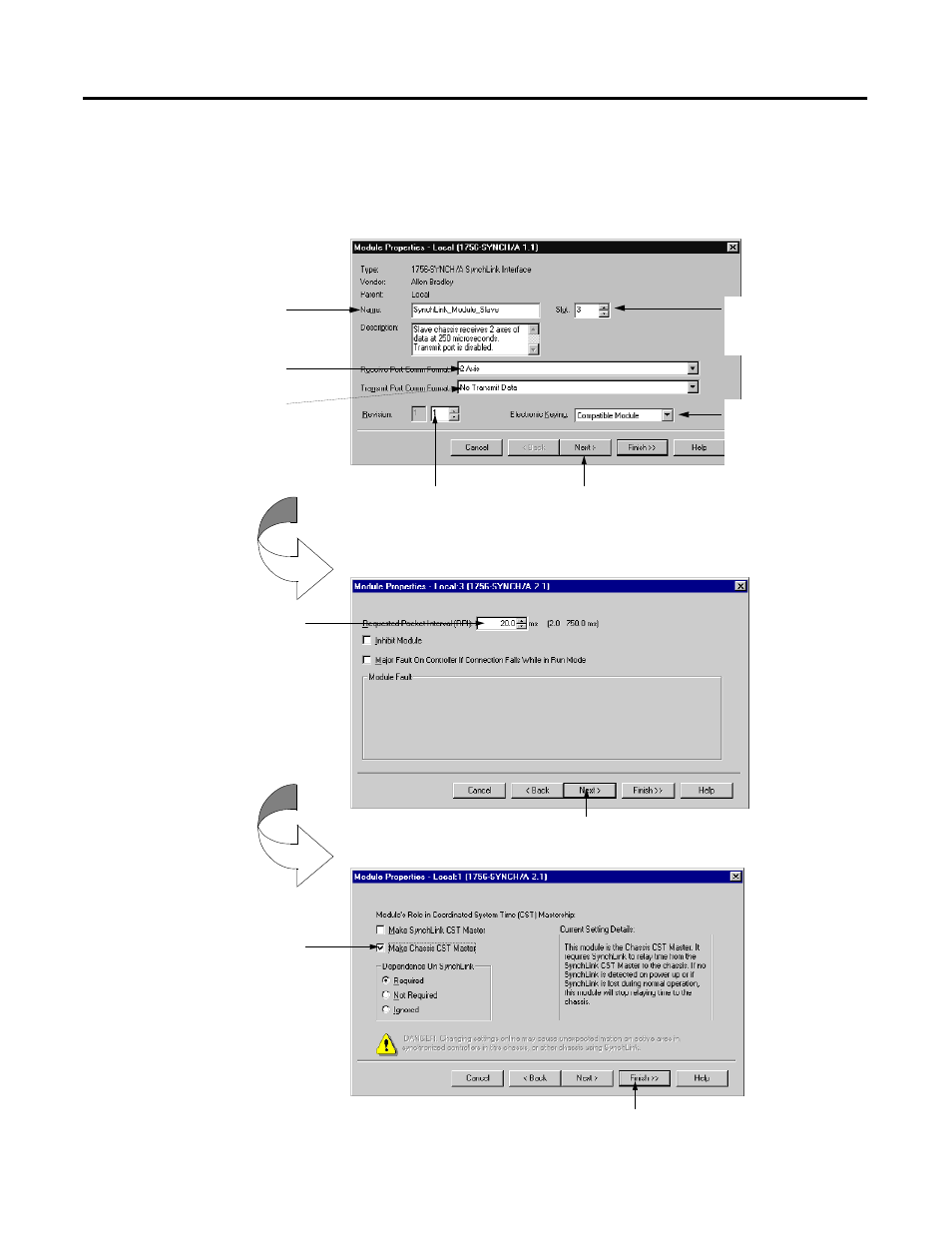

1. Use the new module creation wizard as shown below.
Requested Packet Interval =
Click here to continue to the next
Time slave modules must be
configured as Time Masters
for their respective chassis if
you want to synchronize each
chassis’ CST time value with
the CST Time Master.
Click here to finish configuration. This module does not transmit
SynchLink axis or direct words so the screens shown on pages B-5 &
E. Electronic Keying
method is Compatible
Module.
G. Click here after
completing the
information on this page.
F. Minor Revision = 1.
A. Module name is
Time_Slave_End_Node_1.
B. Receive Port Comm Format is
2 Axis.
C. Transmit Port Comm Format is
No Transmit Data.
D. Module slot number
is 3 as shown in the
graphic on page B-1.
