6-8 Troubleshooting the SynchLink Module

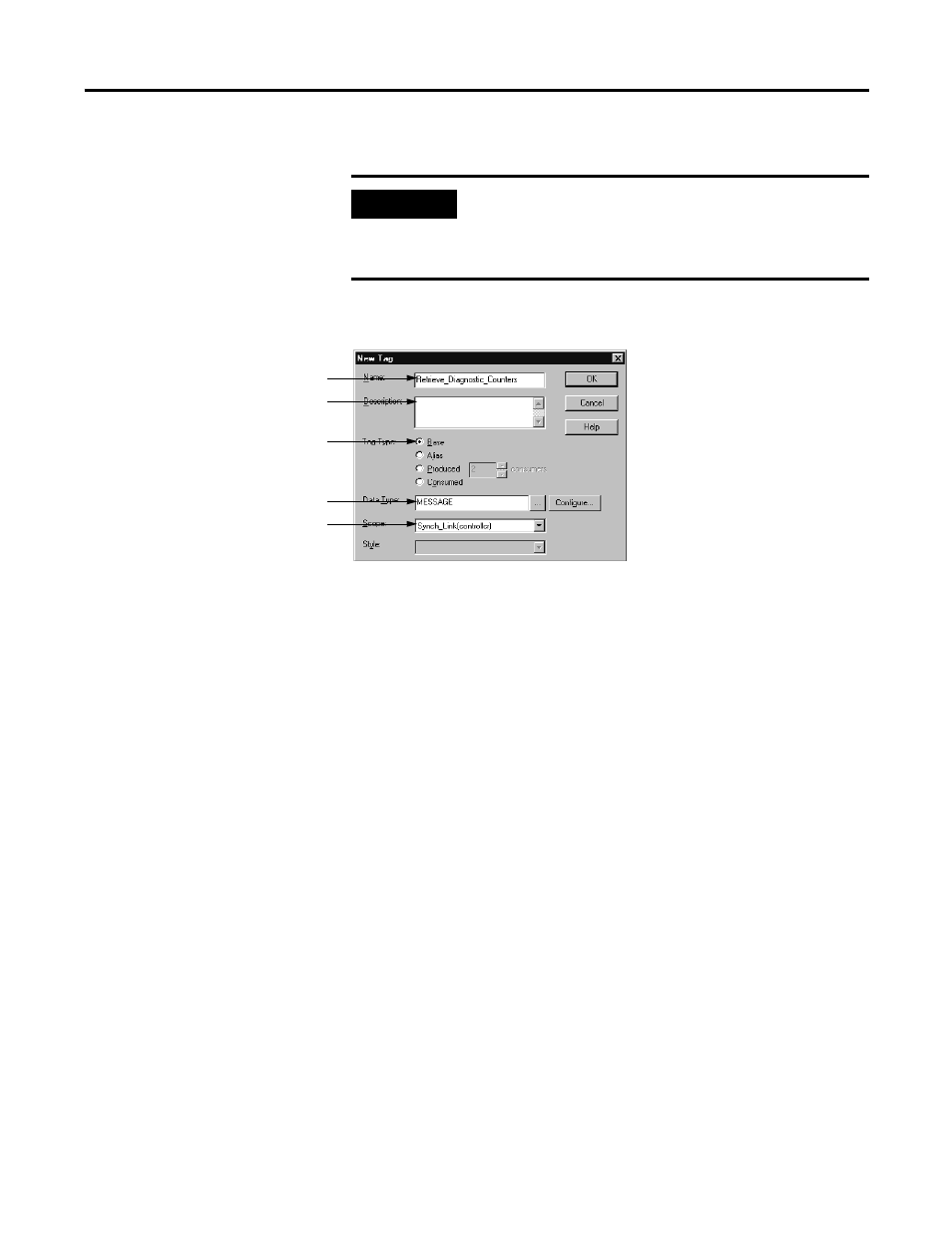

Fill in the following information when the New Tag pop-up screen appears:

IMPORTANT

We suggest you name the tag to indicate what module
service the message instruction is sending. For example, the
message instruction below is used to retrieve diagnostic
counters, and the tag is named to reflect this.

Name the tag here.

Choose the Base Tag Type here.

Choose the Message Data Type here.

Choose the Controller Scope here.

IMPORTANT: Message tags can only
be created with the Controller Scope.

Enter an optional description here.
