Downloading new configuration data, Downloading new configuration data -8 – Rockwell Automation 1756-SYNCH ControlLogix SynchLink Module User Manual User Manual
Page 60
Publication 1756-UM521C-EN-P - July 2004
5-8 Configuring the SynchLink Module
Downloading New
Configuration Data
After you have changed the configuration data for a module, the change does
not actually take affect until you download the new program which contains
that information. This downloads the entire program to the controller
overwriting any existing programs.

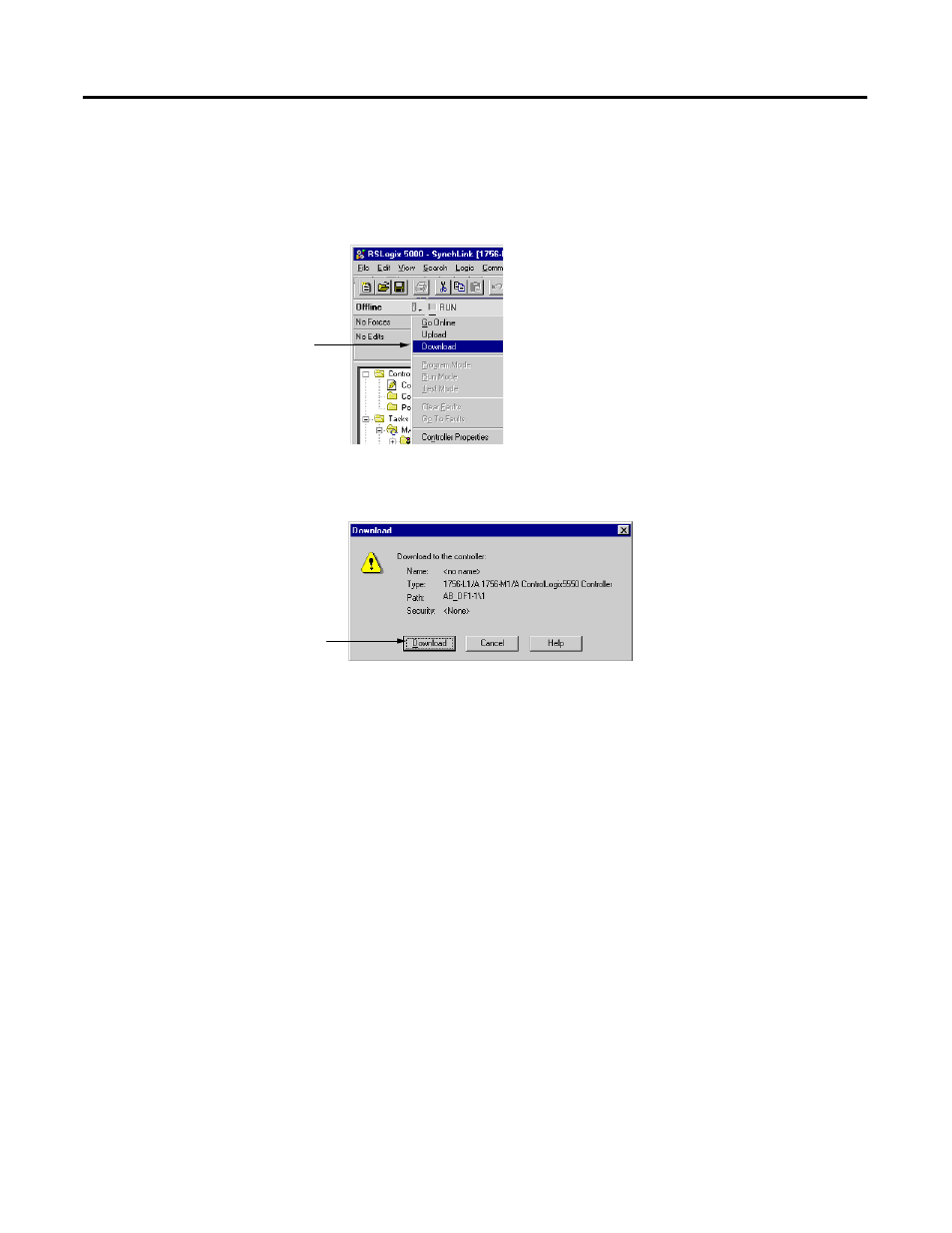

RSLogix 5000 verifies the download process with this pop-up screen.
This completes the download process.
Pull down this menu and click
here to download the new data
Click here to download new data
