B-10 Configuring the Star Configuration
Configure the SynchLink Module

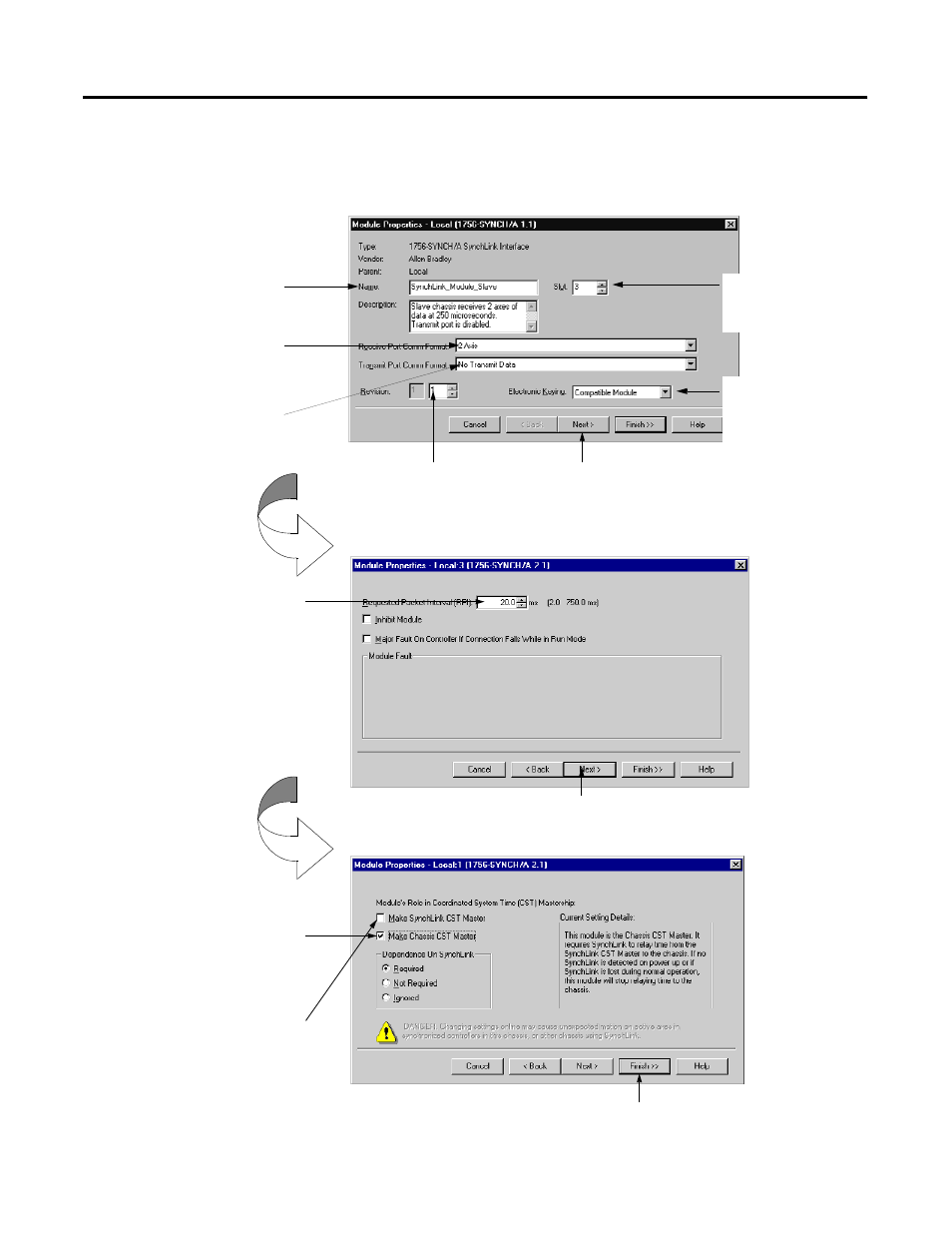

1. Use the new module creation wizard as shown below.
E. Electronic Keying
method is Compatible
Module.
G. Click here after
completing the
information on this page.
F. Minor Revision = 1.
A. Module name is
SynchLink_Module_Slave.
B. Receive Port Comm Format is
2 Axis to match the Transmit
Port Comm Format of the
master module.
C. Transmit Port Comm Format is
No Transmit Data.
D. Module slot number
is 3 as shown in the
graphic on page B-1.
Click here to continue to the next screen.
Requested Packet Interval =
Time Slave modules must be
configured as Time Masters for their
respective chassis if you want to
synchronize each chassis’ CST time
value with the CST Time Master.
This module must also NOT be
configured as the CST master of the
SynchLink (i.e. the box is unchecked)
Click here to finish configuration. This module does not transmit SynchLink axis
or direct words so the screens shown on pages B-5 & B-6 are not used.
