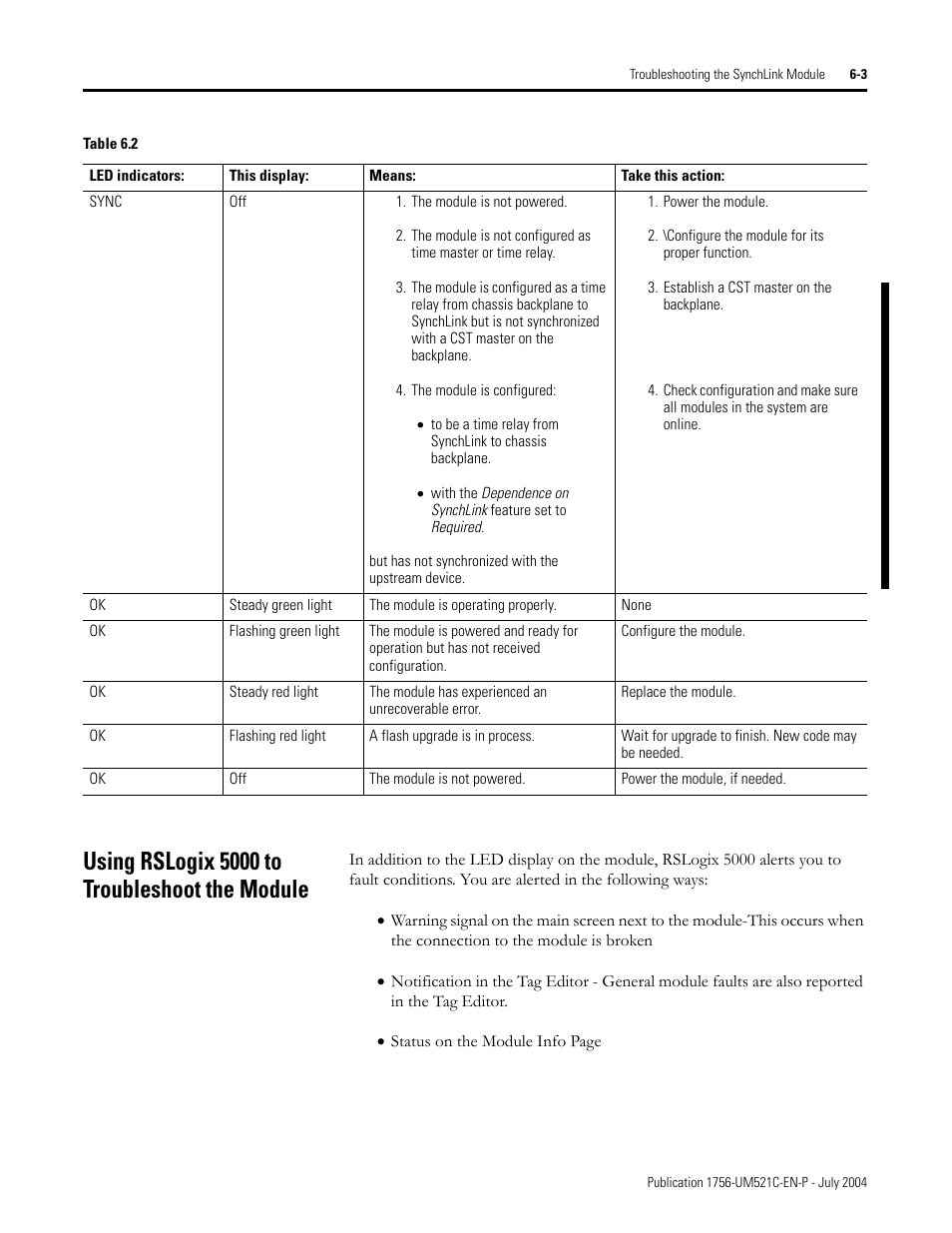

Using rslogix 5000 to troubleshoot the module, Using rslogix 5000 to troubleshoot the module -3 – Rockwell Automation 1756-SYNCH ControlLogix SynchLink Module User Manual User Manual
Page 65
