PowerFlex 750-Series AC Drives

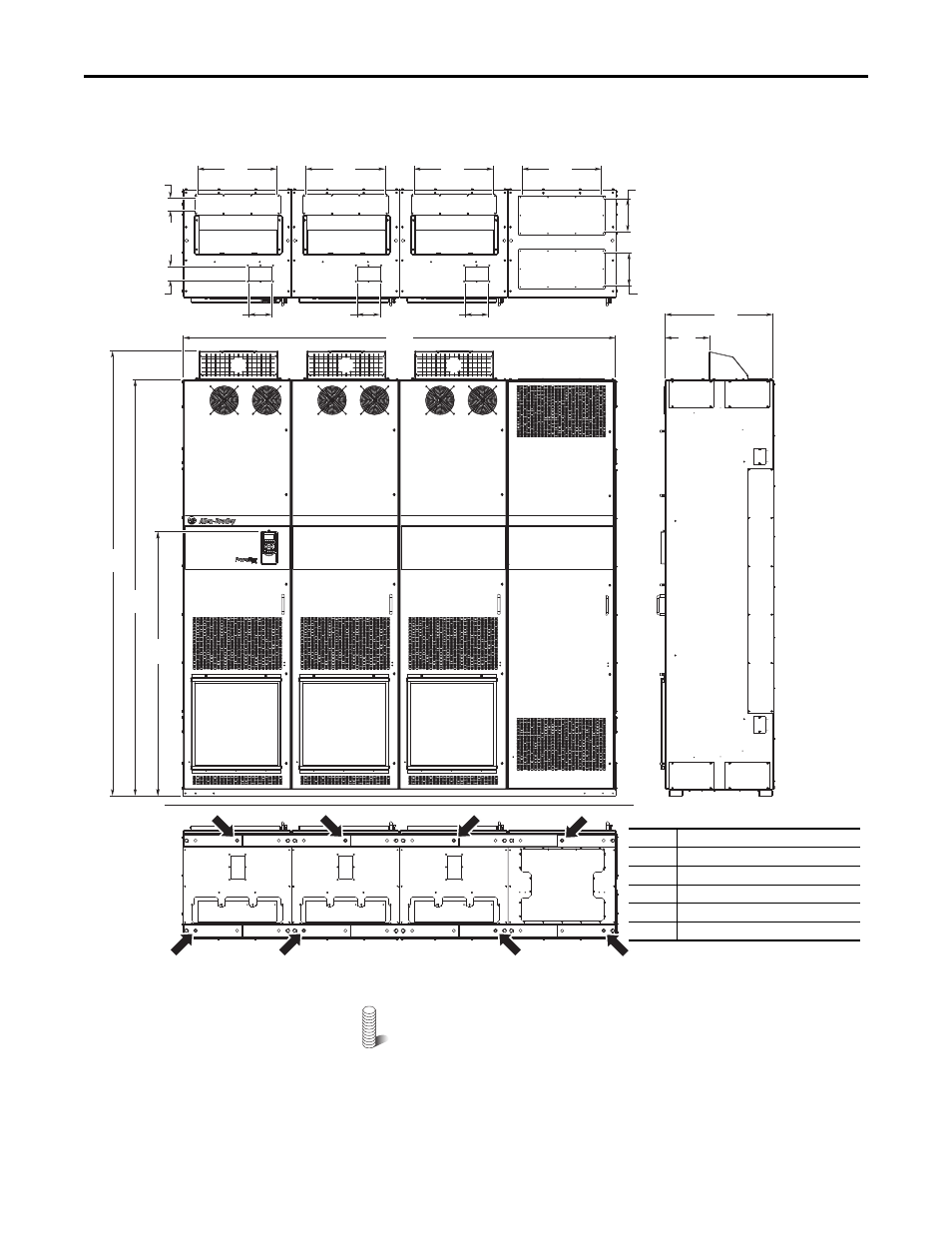

Figure 63 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 10
Enclosure Code B with P14 - 600 mm Deep Drive and Wiring Bay.
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
600
(23.6)
240
(9.4)
➊
➊
➊
➋
➎
2400
(94.5)
➊
➋
2453
(96.6)
2300
(90.6)
➊
➋
440
(17.3)
127
(5.0)
183
(7.2)
183
(7.2)
440
(17.3)
127
(5.0)
440
(17.3)
127
(5.0)
76
(3.0)
68
(2.7)
440
(17.3)
1464
(57.6)
➌
➌
➌
➍
No.
Description
➊
Power wiring conduit plates.
➋
Control wiring conduit plates.
➌
Optional exhaust hood.
➍
Optional HIM.
➎
Recommended eight-hole anchoring.
BOTTOM
TOP
