PowerFlex 750-Series AC Drives

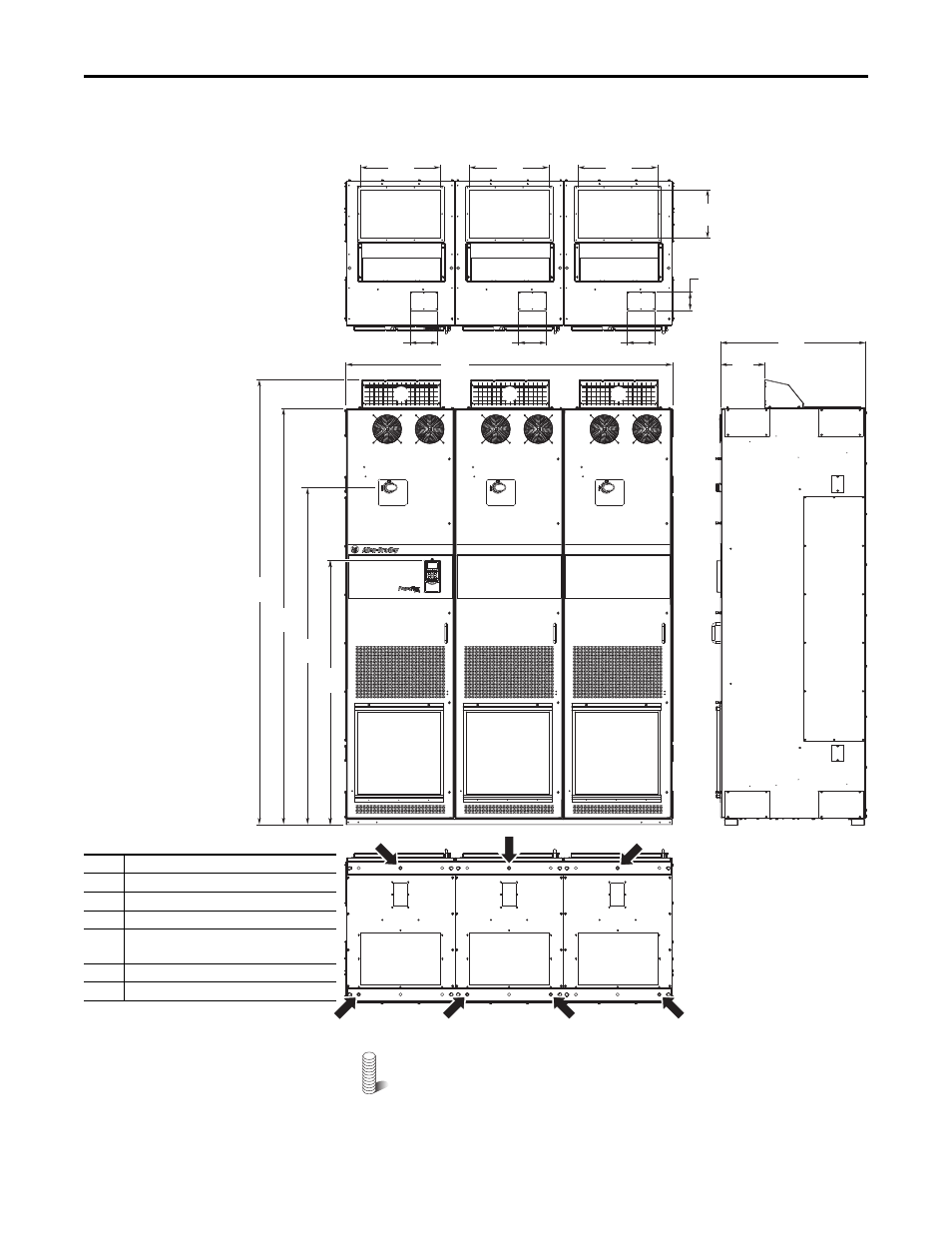

Figure 40 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 10
(Enclosure Codes L, P, W)
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
1800
(70.9)
800
(31.5)
240
(9.4)
➏
➎
440
(17.3)
152
(6.0)
➊
➋
440
(17.3)
152
(6.0)
➊
➋
➍
➍
➍
440
(17.3)
152
(6.0)
102
(4.0)
270
(10.6)
➊
➋
2453
(96.6)
2300
(90.6)
1862
(73.3)
1464
(57.6)
➌
➌
➌
No.
Description
➊
Power wiring conduit plates.
➋
Control wiring conduit plates.
➌
Optional exhaust hood.
➍
Disconnect switches (SW2). Common DC Input
drives.
➎
Optional HIM.
➏
Recommended seven-hole anchoring.
BOTTOM
TOP
