Floor Mount Frames 8…10 Drive Assembly Jumper Removal and
Storage
Frame 8…10 drive assemblies use jumper plugs to complete an electrical
connection when installed. Install or remove jumper plugs according to the
recommendations in
Table 30 .

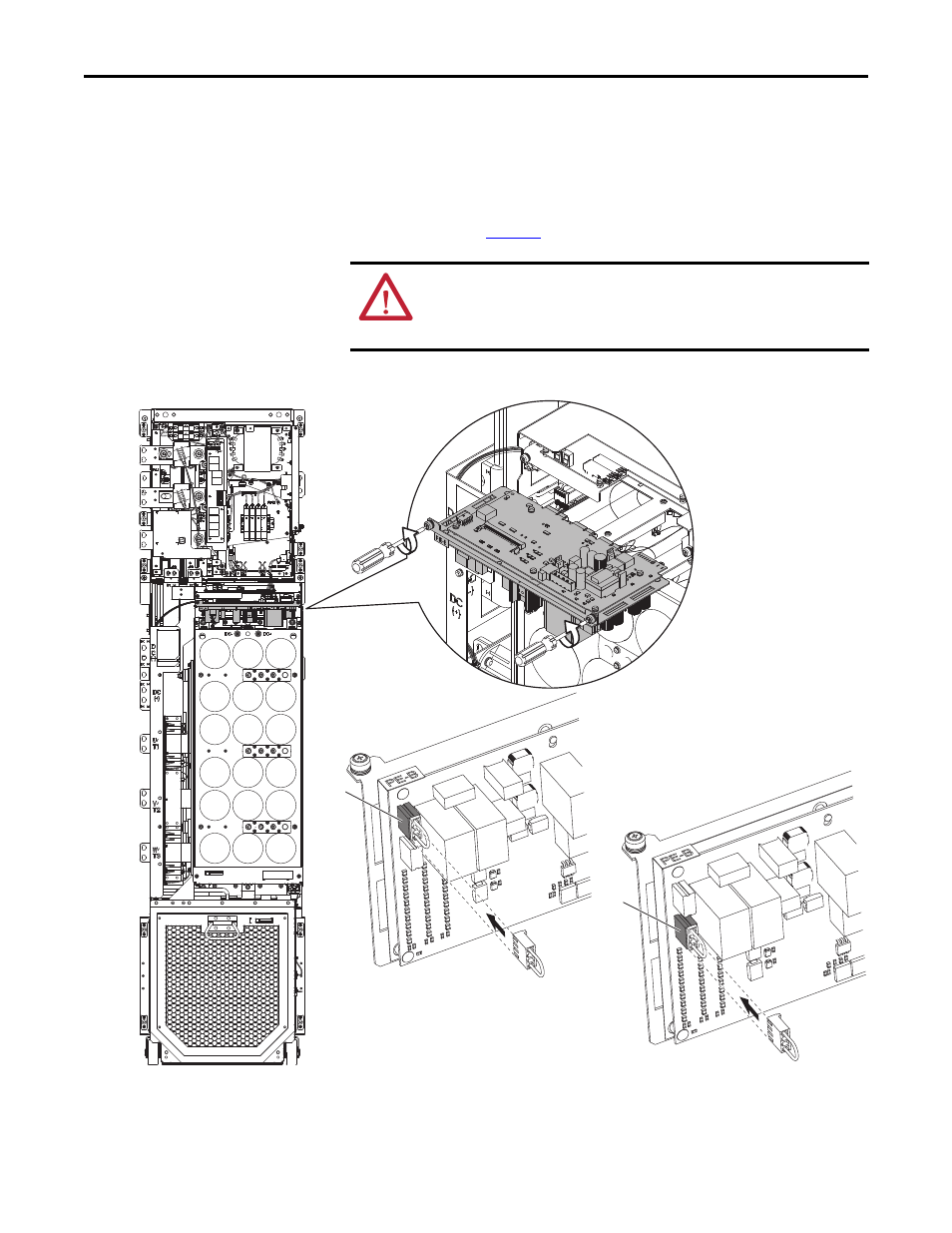

Figure 110 - Frames 8…10 Drive Assembly PE-B Common Mode Jumper Location
Removal and installation the Inverter Power Control Board tray:
• Recommended torque = 1.86 N•m (16.0 lb•in)
• Recommended screwdriver = T20 Hexalobular
ATTENTION: Hazard of equipment damage exists if jumpers are not properly
disconnected or are set differently between drive assemblies. For Frame 8…10 drive
assemblies, secure the disconnected jumper plug in the socket provided and ensure that
all drive assemblies are identically configured.
J4
J3
Disconnected
Connected
AC Input Drive Shown
