PowerFlex 750-Series AC Drives

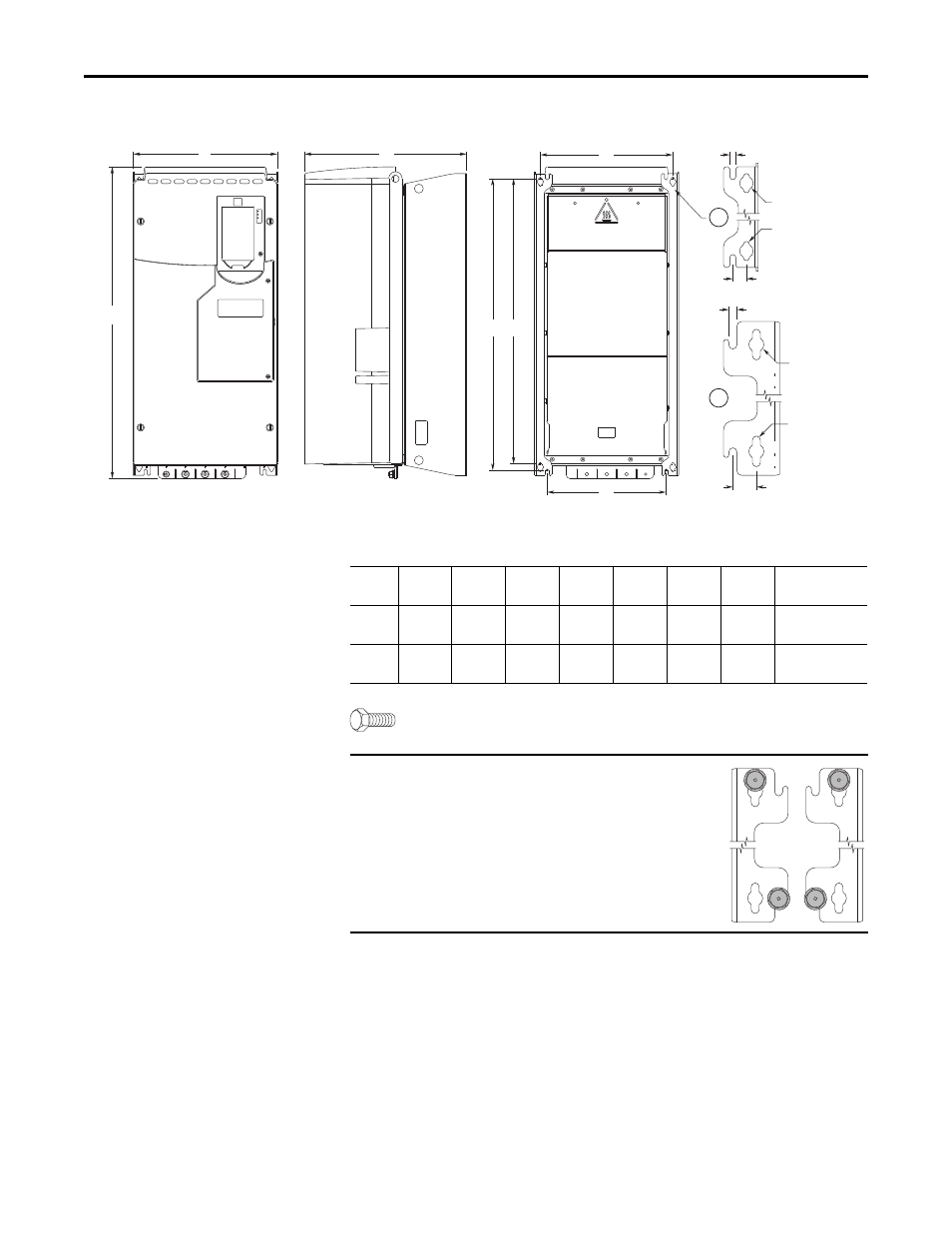

Figure 25 - IP00, NEMA/UL Open Type, Wall Mount Frames 6 and 7 (Frame 6 Shown)
Dimensions are in millimeters and (inches).
Frame 6: M6 (#12) mounting hardware recommended.
Frame 7: M8 (5/16 in.) mounting hardware recommended.
G
E
F
D
C
6.4 (0.25)
14.5 (0.57)
A
B
ш6.5 (0.26)
ш14.5 (0.57)
6
7
8.5 (0.33)
25.0 (0.98)
ш8.5 (0.33)
ш16.0 (0.63)
Frame
A
B
C
D
E
F
G
Weight
kg (lb)
6
308.0
(12.13)
665.5
(26.20)
346.4
(13.64)
283.0
(11.14)
623.0
(24.53)
254.0
(10.00)
609.0
(23.98)
38.6
(85.0)
7
430.0
(16.93)
881.5
(34.70)
349.6
(13.76)
380.0
(14.96)
838.0
(32.99)
330.0
(12.99)
825.0
(32.48)
72.6…108.9
(160.0…240.0)
IMPORTANT
Always install mounting hardware in all four corners
of the mounting legs for stability.
Only install mounting hardware through the top key
holes to help insure the drive is securely fastened to
the mounting surface.
At the bottom of the mounting legs, either the key
holes or optional open mounting slots may be used.
