Control Pod Cable Routing
Floor Mount Frames 8…10
Supports, clips, and cable ties are provided to help route cabling inside the control pod.

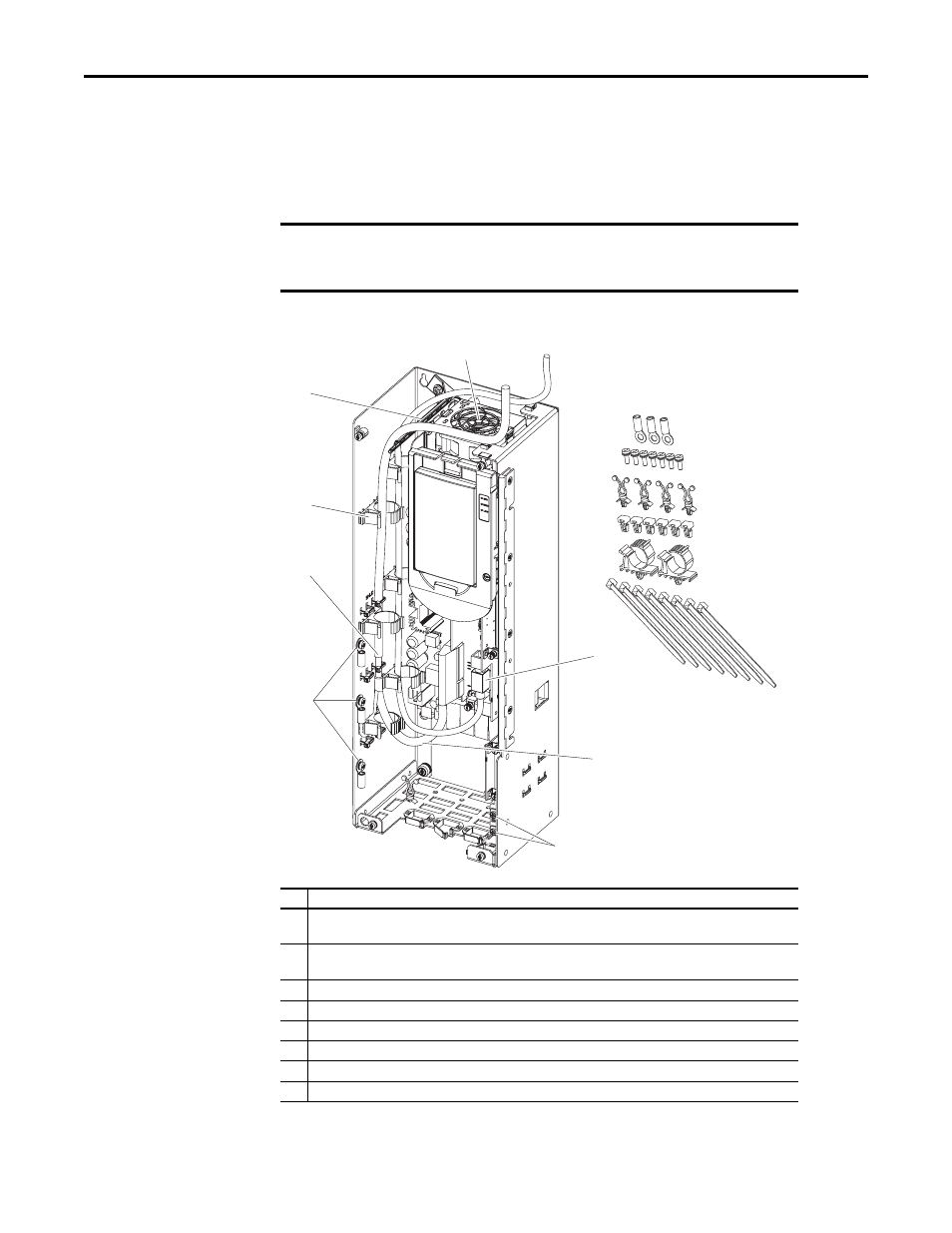

Figure 139 - Control POD Detail
IMPORTANT
•
When routing cabling into the control POD, do not block the cooling fan outlet.
•
Do not ground shield wires to inner sheet metal bucket supporting option
modules.
No. Description
➊
I/O Signal shield termination points. Use M4 screws and ring terminals provided to tie together and terminate
drain wires and shields.
➋
Ground shield wires to outer sheet metal bucket. Strip cable insulation 25 mm (1 in.) to expose braid. Attach cable
ties around shield and through slots. Pull tight.
➌
Attachment points for cable management devices provided (6 places).
➍
Cable support ladder.
➎
Fan outlet. Keep clear to help ensure proper cooling.
➏
Control cable entry and routing.
➐
Human Interface Module (HIM) cable entry and routing.
➑
Shield termination points.
