Rockwell Automation Publication 750-IN001N-EN-P - April 2014 253
PowerFlex 750-Series AC Drives
Profibus Option Module
For complete information on the Profibus Option Module, refer to the
PowerFlex 20-750-PBUS Profibus DPV1 Option Module User Manual,
publication
750COM-UM004 .

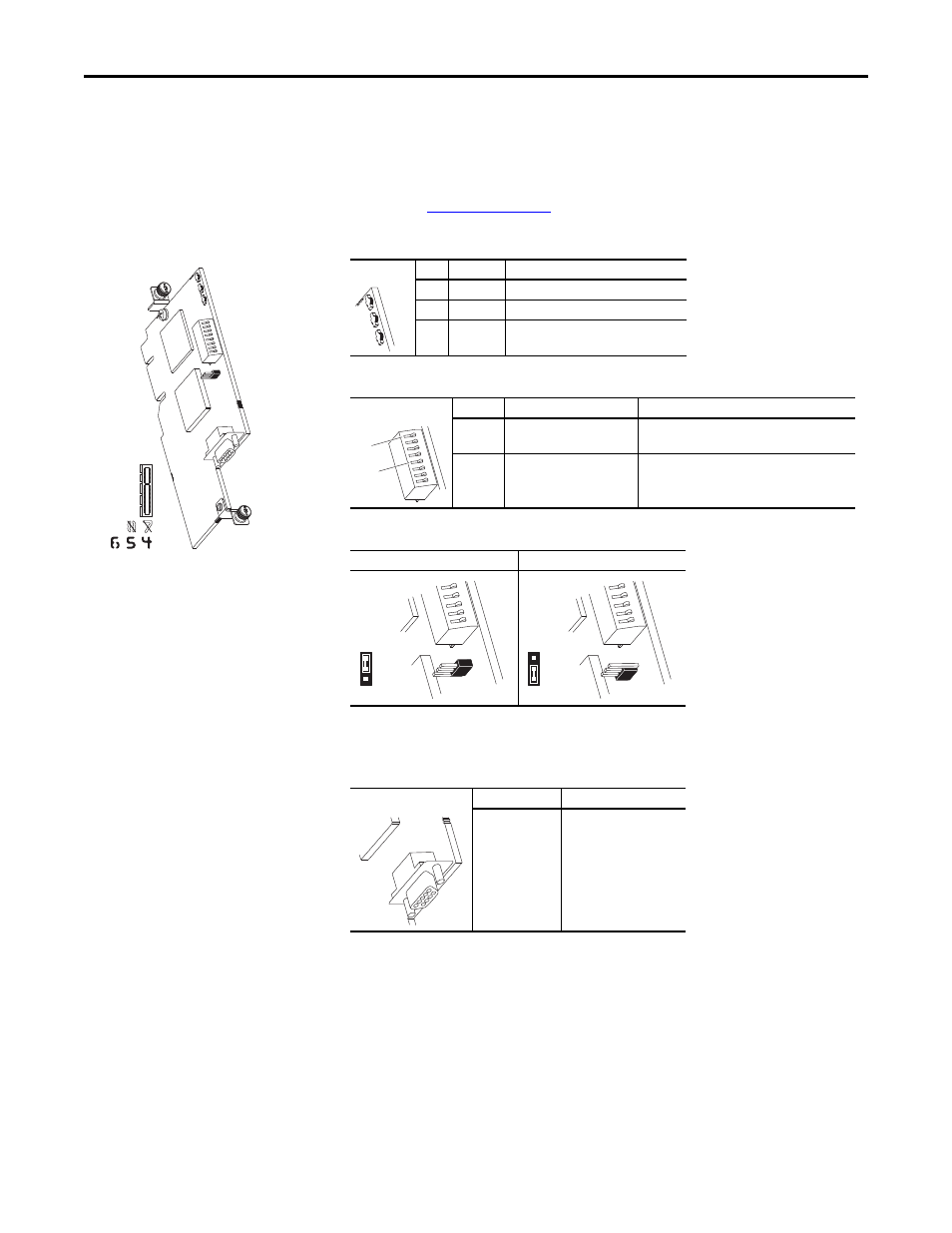

Table 77 - Profibus Option Module LED Indication
Table 78 - Profibus Option Module Node Address Switches
Table 79 - Profibus Option Module Selection Jumper
Table 80 - Network Connector
20-750-PBUS
LED Name Description
➊ PORT DPI Connection Status
➋ MOD Option Module Status
➌ NET A ControlNet Channel A Status
Switch Name Description
➊ Endianness Selection Switch
(Switch 8) Sets endianness of data transmitted over
network.
➋ Node Address Switches
(Switches 1…7) Sets the node address of the option module.
Profibus Mode Profidrive Mode
(1)
(1) Profidrive Mode is not yet supported. Changing the jumper position has no effect.
Profibus is selected in both positions.
Name Description
Profibus DB9
Female Connector Profibus connection to the
network.
➊
➋
➌
➊
➋
P2 P2
