PowerFlex 750-Series AC Drives

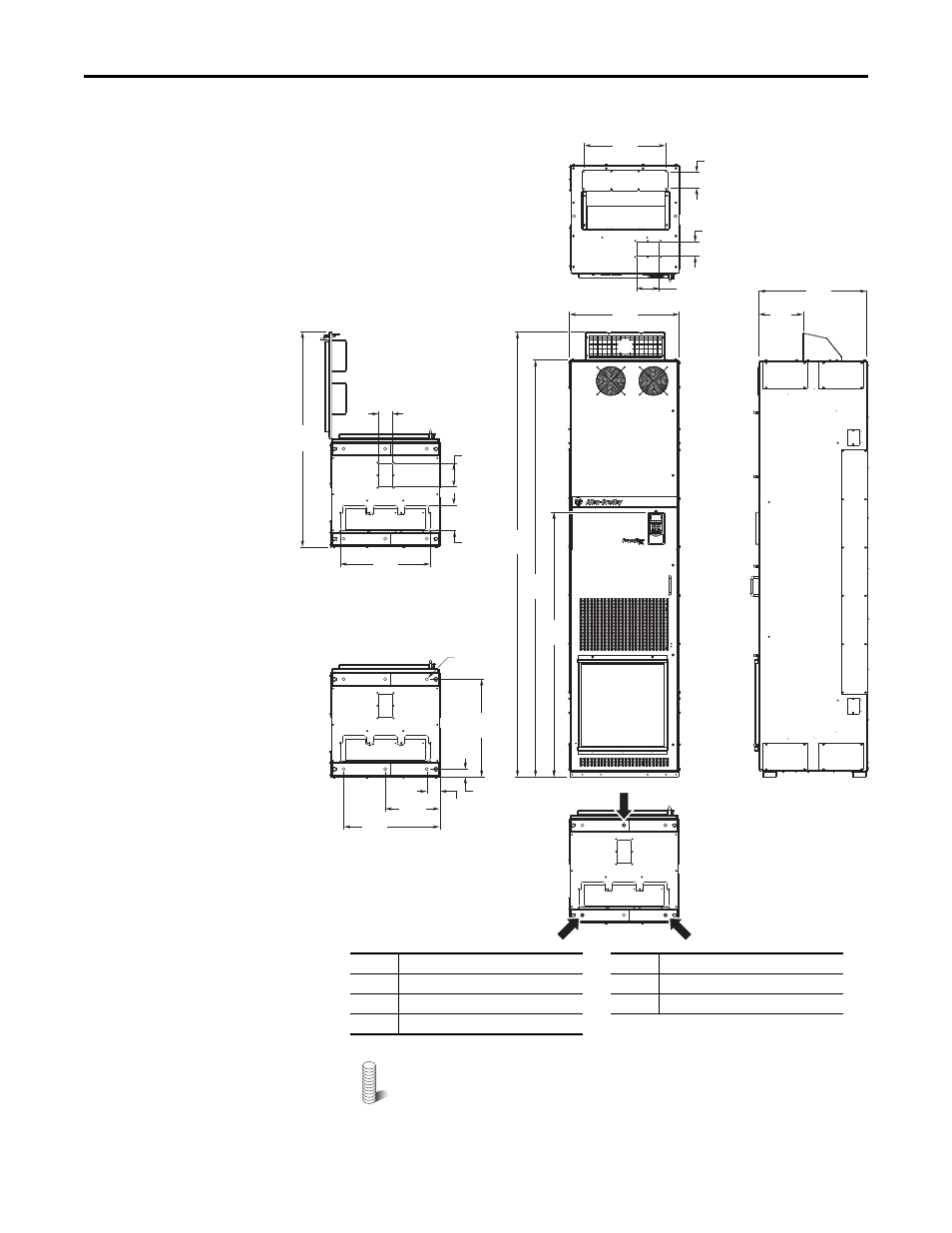

Figure 32 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8 (Enclosure Code B)
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
2453
(96.6)
600
(23.6)
440
(17.3)
2300
(90.6)
300
(11.8)
531
(20.9)
600
(23.6)
240
(9.4)
ø18.0
(0.71)
68
(2.7)
542
(21.3)
1183
(46.6)
500
(19.7)
141
(5.6)
43
(1.7)
69
(2.7)
127
(5.0)
76
(3.0)
➎
➍
➊
➋
76
(3.0)
127
(5.0)
➊
➋
1464
(57.6)
➌
BOTTOM
BOTTOM
TOP
No.
Description
No.
Description
➊
Power wiring conduit plates.
➍
Optional HIM.
➋
Control wiring conduit plates.
➎
Recommended three-hole anchoring.
➌
Optional exhaust hood.
