270 Rockwell Automation Publication 750-IN001N-EN-P - April 2014
PowerFlex 750-Series AC Drives

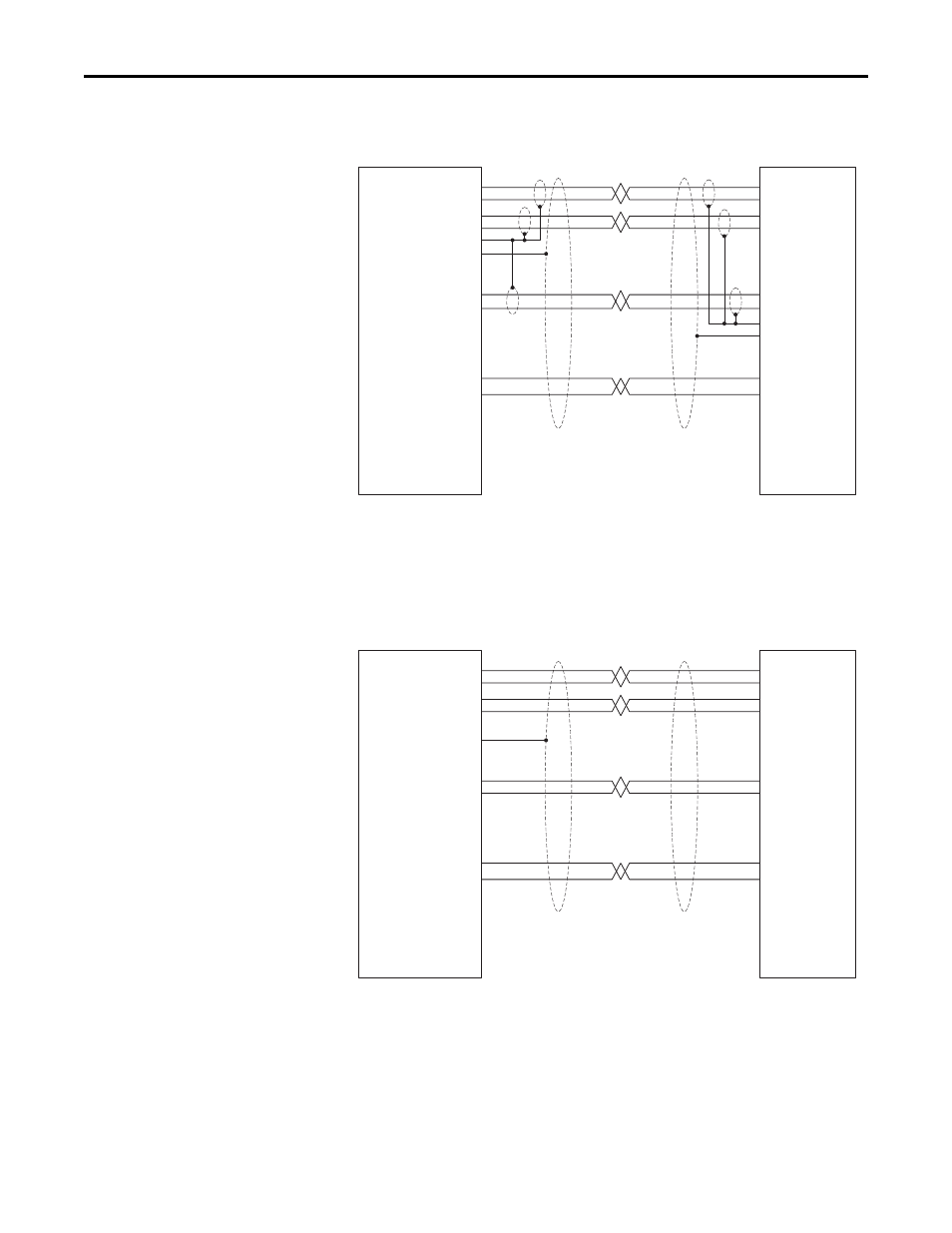

Figure 129 - Stegmann Rotary Encoder connected via a 1326-CECU-XXL-XXX Cable
Set Universal Feedback parameter P6 [FB0 Device Sel] or P36 [FB1 Device Sel]
to 2 “Hiperface SC.”
Figure 130 - Stegmann Rotary Encoder connected via a Pre-Attached, Shielded, Twisted Pair
Cable
Set Universal Feedback parameter P6 [FB0 Device Sel] or P36 [FB1 Device Sel]
to 2 “Hiperface SC.”
Universal Feedback Option
Module TB1
Stegmann
Encoder TB
C
D
E
F
B
A
BK
BU
WH
BK
BK
RD
BK
RD
BK
BU
WH
BK
GN
BK
GN
BK
REFSIN
+SIN
REFCOS
+COS
DATA- (RS485)
DATA+ (RS485)
SHIELD
POWER COMMON
POWER
OVERALL SHIELD
H
G
I
J
-Sn
+Sn
-Cs
+Cs
IS
OS
-Xc
-Xd
+Xd
-Hf
+Hf
5c
+5
+Xc
12c
-A
A
-B
B
-Z
Z
+12
Universal Feedback Option
Module TB1
Stegmann
Encoder TB
3
7
4
8
2
1
BK
PK
BU
RD
BN
WH
BN
WH
BK
PK
BU
RD
GN
GY
GN
GY
REFSIN
+SIN
REFCOS
+COS
DATA- (RS485)
DATA+ (RS485)
POWER COMMON
POWER
6
5
-Sn
+Sn
-Cs
+Cs
IS
OS
-Xc
-Xd
+Xd
-Hf
+Hf
5c
+5
+Xc
12c
-A
A
-B
B
-Z
Z
+12
