134 Rockwell Automation Publication 750-IN001N-EN-P - April 2014
PowerFlex 750-Series AC Drives
Three-Phase Terminal Locations

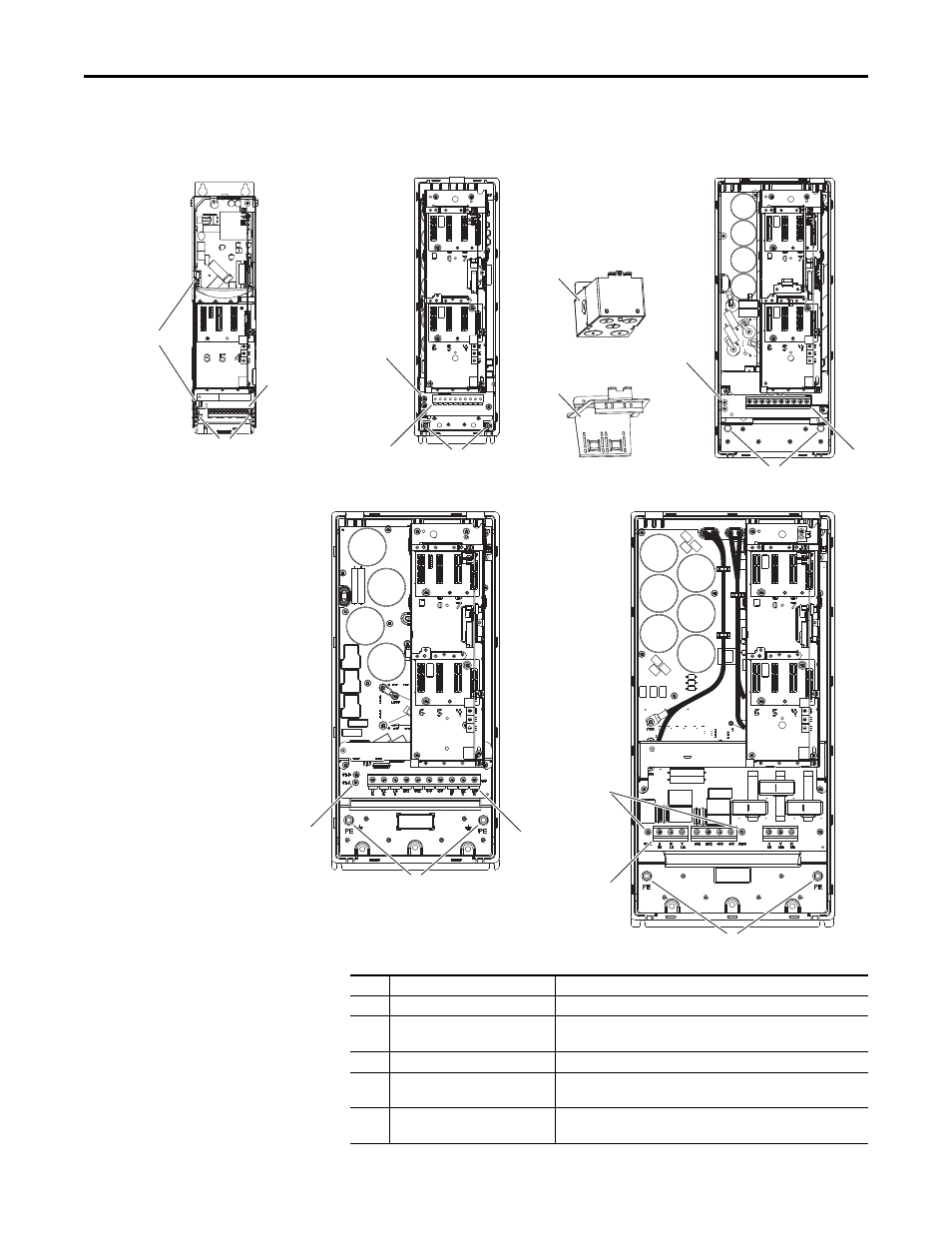

Figure 79 - Wall Mount Frames 1…5 Power Terminal Block and Termination Point Locations
➊ ➊
➊
➌
➊
➌
➋
➌
➋
➌
➋
➋
➍
➎
➊
➌
➋
Wall Mount Frame 2
Wall Mount Frame 3
Wall Mount Frame 4
Wall Mount Frame 5
Wall Mount Frame 1
No. Name Description
➊ Power Terminal Block R/L1, S/L2, T/L3, BR1, BR2, +DC, -DC, U/T1, V/T2, W/T3
➋ PE Grounding Studs Terminating point to chassis ground for incoming AC line and motor
shields.
➌ PE-A and PE-B MOV and CMC Jumpers
➍ Optional NEMA/UL Type 1 Conduit
Box Terminating point to chassis ground for incoming AC line, motor shields,
and control wire shields.
➎ Optional EMC Plate Terminating point to chassis ground for incoming AC line, motor shields,
and control wire shields.
