Rockwell Automation 21G PowerFlex 750-Series AC Drives User Manual
Page 79

Rockwell Automation Publication 750-IN001N-EN-P - April 2014
79
PowerFlex 750-Series AC Drives

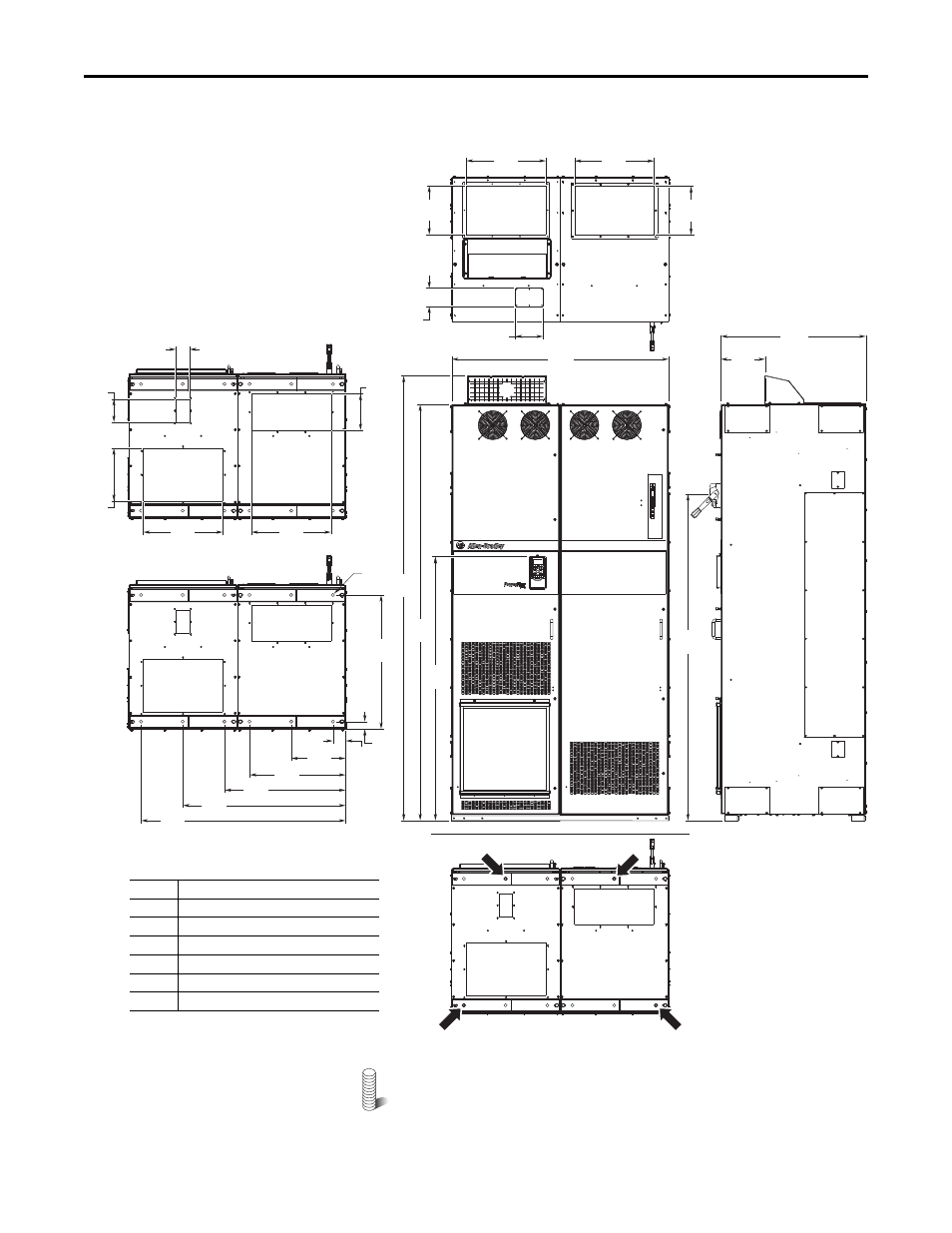

Figure 46 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8
Enclosure Code L, P, W - 800 mm Deep Drive with Cabinet Options Bay.
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
152
(6.0)
2453
(96.6)
1200
(47.2)
2300
(90.6)
440
(17.3)
440
(17.3)
102
(4.0)
300
(11.8)
531
(20.9)
669
(26.3)
900
(35.4)
1131
(44.5)
69
(2.7)
ø18.0
(0.71)
742
(29.2)
43
(1.7)
800
(31.5)
240
(9.4)
292
(11.5)
127
(5.0)
76
(3.0)
440
(17.3)
200
(7.9)
➊
➊
➋
➊
➊
➋
➍
➏
➎
1808
(71.2)
270
(10.6)
270
(10.6)
440
(17.3)
1464
(57.6)
➌
No.
Description
➊
Power wiring conduit plates.
➋
Control wiring conduit plates.
➌
Optional exhaust hood.
➍
Option bay disconnect switch.
➎
Optional HIM.
➏
Recommended four-hole anchoring.
BOTTOM
TOP
BOTTOM
