38
3 DRO Mode and Calculator
3.1 DR
O Manual D
a
ta Input
DRO Operations
The following explains a few of the machining operations that are
available. This example is providing an overview to the operator of the
MILLPWR
G2
capabilities.
The RECT, or CIRCLE keys as an example access popup menus to
further refine the type of milling to be completed. Selecting the type
of milling operation required will open the dialogue for that type of
milling operation.
An operation is run by pressing the USE key. The CANCEL key can be
pressed at anytime to cancel an operation.

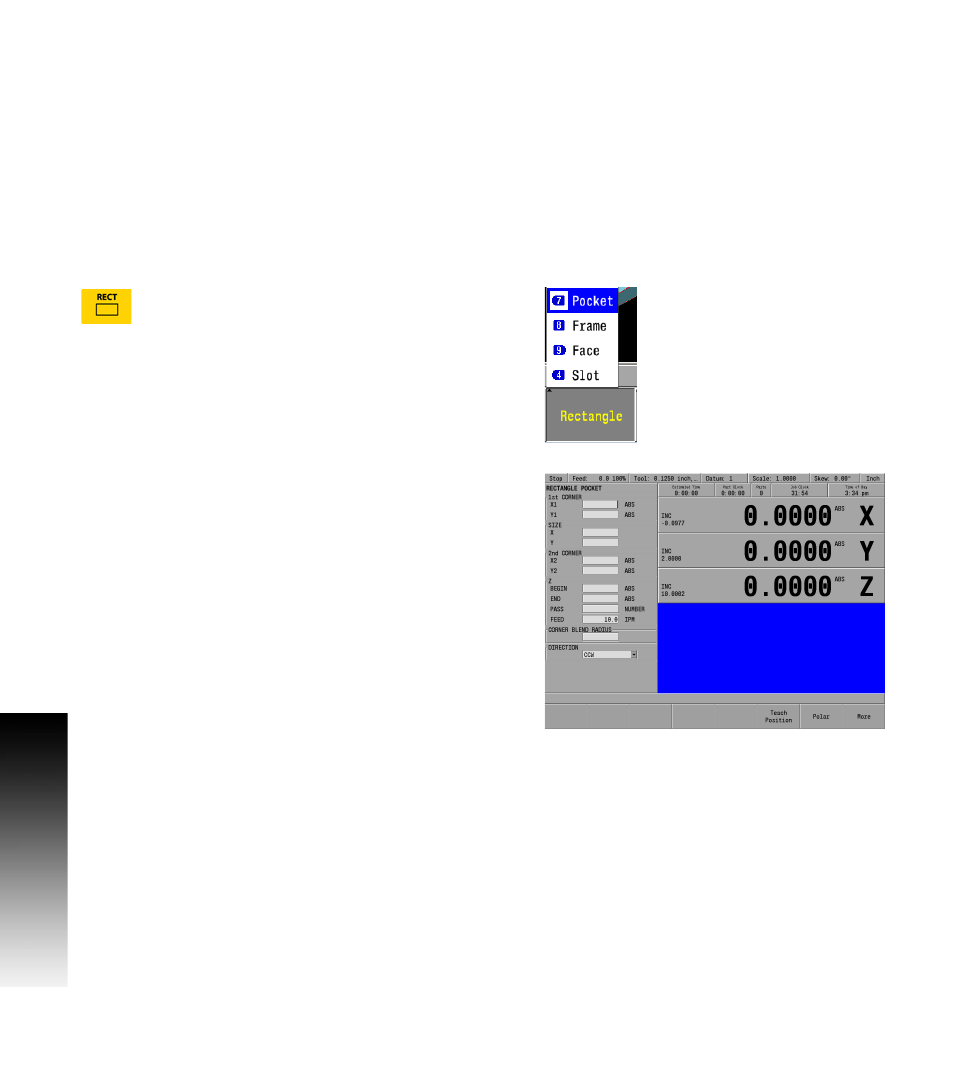

Rectangle milling
Press the RECT key on the front panel. The soft key is
displayed, and a popup menu appears on the display
listing the type of rectangles available for milling.
Rectangle milling example
(e.g. pocket, frame, face, or slot)
Select Pocket from the popup menu.
The popup menu disappears, and the RETANGLE POCKET dialogue
is displayed.
Enter the data to mill the pocket.
An operation is run by pressing the GO key. While running a graphic
representation can be seen by pressing the VIEW key. The STOP key
can be pressed at anytime to pause, or stop an operation.
