ACU-RITE MILLPWR G2 15
1
.3 Console

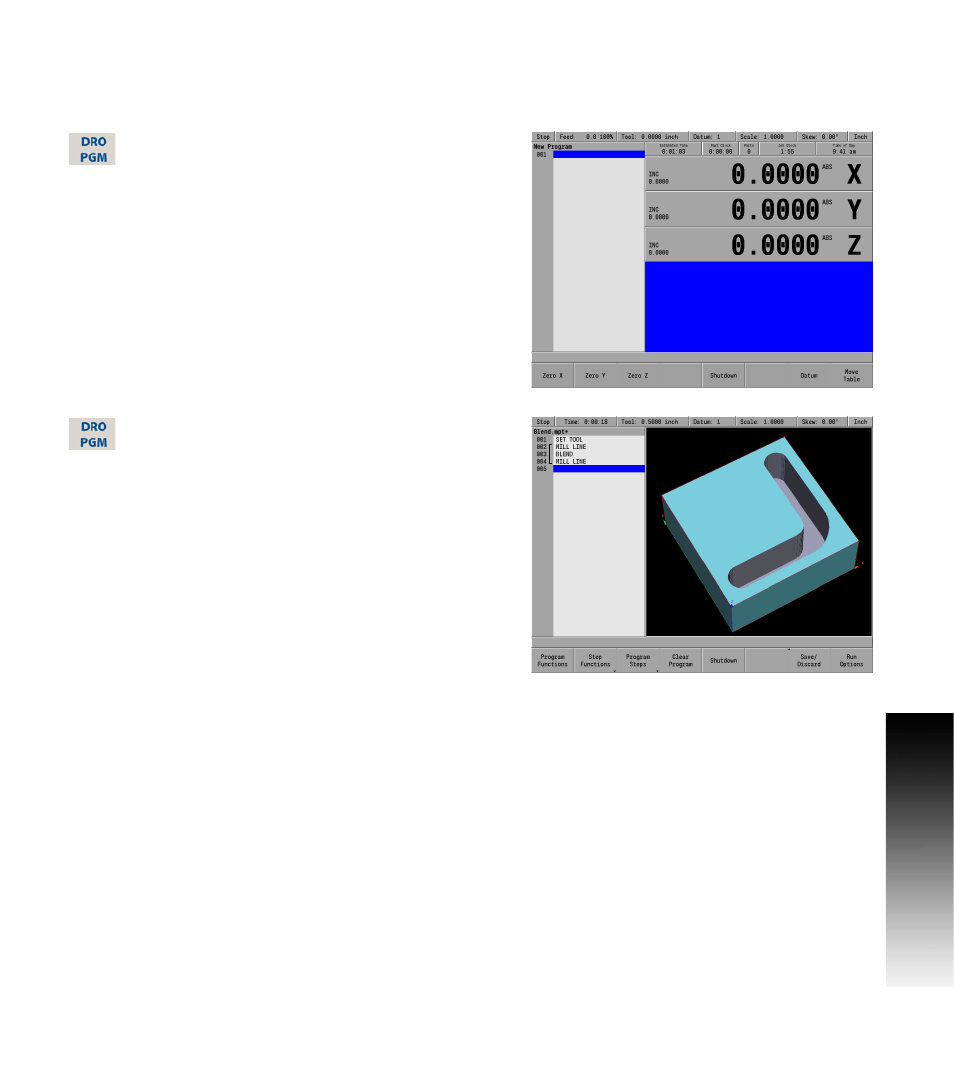

Operating Modes
The MILLPWR
G2
has two main operating modes: DRO, and PGM
(Program). These are accessed from the front panel hard key. This is a
toggle key.
 DRO mode shows the current position of each axis
relative to current datum. In DRO mode, manual
machining, and Single Cycles can be performed. Tool
selection, units, along with most setup features can
be accessed.
 Program mode PGM, displays the list of program steps
and part-view graphics. New programs can be
created as well as editing existing programs.
Programs, new or existing, can be saved, deleted, or
copied using program functions.
 A USB pointing device e.g. mouse, trackball, etc. may also be used.
If a pointing device is being used, the action of clicking on a soft key
button is the same as pressing the corresponding soft key. A USB
keyboard can also be used for data entry and cursor control.
