ACU-RITE MILLPWR G2 31
3.1 DR
O Manual D
a
ta Input

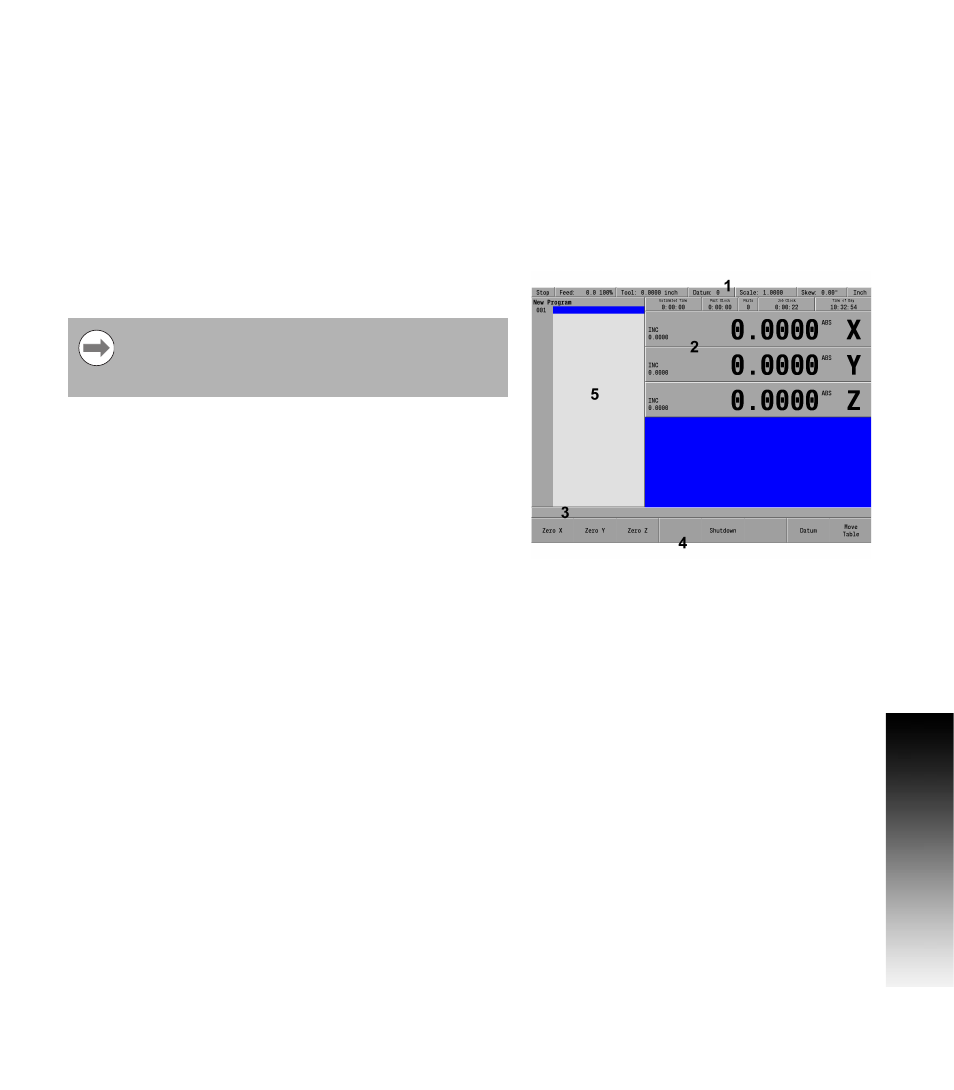

DRO Screen
The DRO screen displays information per the current operation. The
DRO
mode allows the use of the milling function hard keys, or can be
used as a DRO in manual machining operations.
In addition to the information provided in Chapter 1 "DRO Mode
display" on page 12, the following table describes what is being
viewed on the display in DRO mode.
When the console is first turned on, the soft keys Shut Down, Find
Home
, and Cancel are displayed.
 Press the Find Home soft key.
After pressing either the Find Home, or Cancel soft key, the default
DRO screen will be displayed.
If the MILLPWR
G2
did not perform the Find Home feature
at start up, press the Datum soft key from the default DRO
screen to display the Home soft key. Press the Home soft
key then the Find Home soft key will be displayed.
1 Status Bar displays the servo motor status Stop/Run/Pause,
feedrate override, current Tool (blank if none is selected), Datum,
Scale, Skew, unit of measure selected (Inch/MM), Estimated
Time, Part Clock, Parts (run), Job Clock, and Time of Day.
See "Status Bar Display" on page 32
2 Display current position of each axis, and relative to the current
datum.
3 Operator Intervention Message line (OIM) that provides prompts,
and messages to the operator.
4 Soft keys display. The soft keys change per the function that has
been selected. Each are activated by the associated hard key that
is directly below it. When a soft key appears as being pressed, it
is activated. If the key is not pressed in, it is not currently active.
Active soft key text changes to yellow text.
5 This window displays program steps if a program is loaded. If no
program is loaded, then this window is blank. When a function
has been selected (e.g. Pocket), its dialogue box is displayed in
this window.
