1.4 Operating Mode Screens
Display navigation
The DRO mode is the default start up mode, and PGM mode can be
selected from the front panel key after start up. A condensed
description of these has been provided here on how to navigate, and
become familiar with the information that is being provided.
Complete descriptions, and details of these are provided later in this
manual, see "DRO Screen" on page 31.

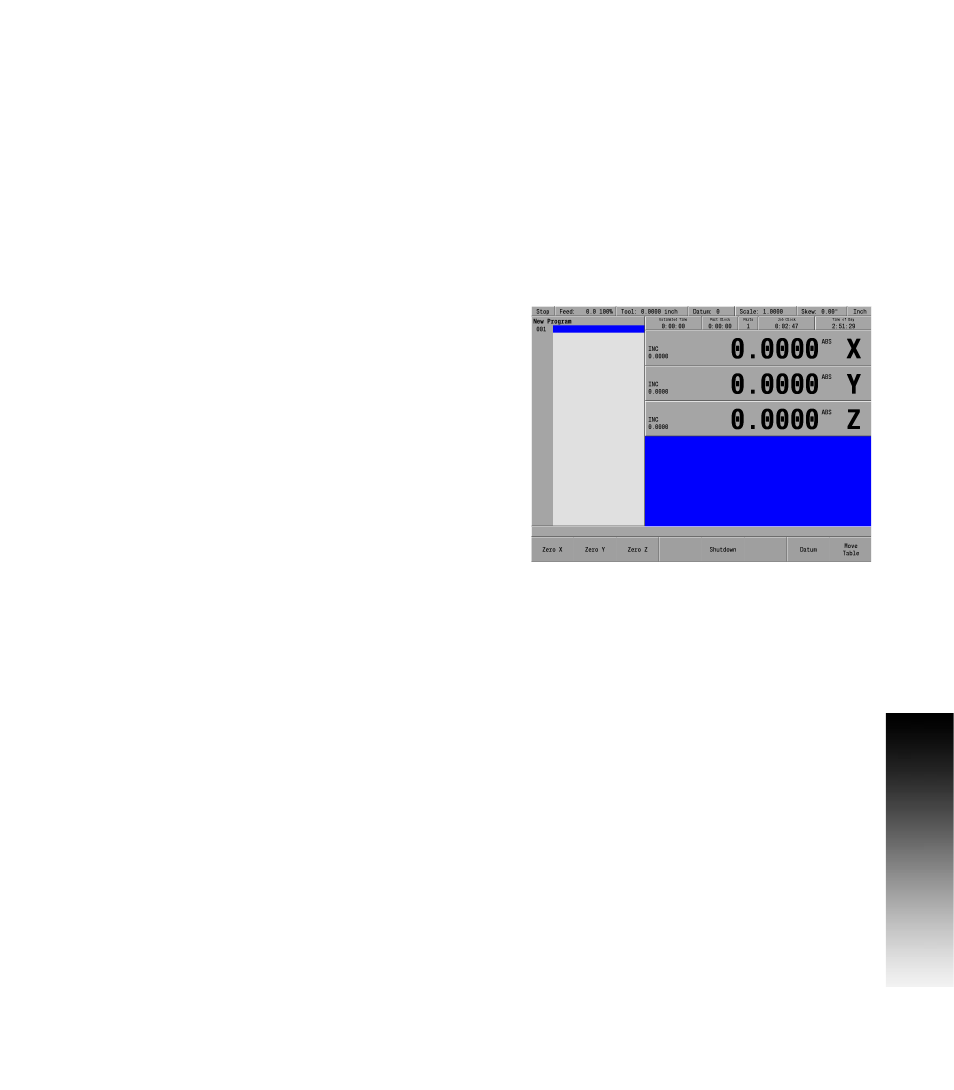

DRO display screen
The MILLPWR
G2
display screen provides the information required to
monitor the machine, it’s movement, programming, and more.
The default screen, or home screen, displays two main windows, and
soft keys in the soft key display area. When the console is first turned
on, the unit defaults to this screen. See "Screen Navigation" on page
12.
The DRO screen displays information per the current operation. DRO
mode allows the use of the milling function keys, or can be used as a
DRO in manual machining operations.
The system Shutdown soft key is located here as well as in PGM mode.
