ACU-RITE MILLPWR G2 155
8.1 Milling and Dr
illing
Hole Patterns
MILLPWR
G2
includes several built-in routines that let you program
hole patterns quickly and easily. The following hole patterns are
described here:
 Row of Holes
 Rectangle Frame
 Rectangle Array
 Bolt Circle
Row of Holes
A row of holes, can be programmed two ways:
 By entering the coordinates of the first and last hole
 By entering the coordinates of the first hole, the spacing between
each hole and the row’s angle
The “From” point refers to the center of the first hole, while the “To”
point is the center of the last hole. Any additional holes will be spaced
equally between these two.
You’ll also be prompted for peck and tool retract values. “Peck” lets
you break chips and reduce chip buildup during drilling operations.
“Tool Retract” allows you to program MILLPWR
G2 to raise the tool at
regular intervals.

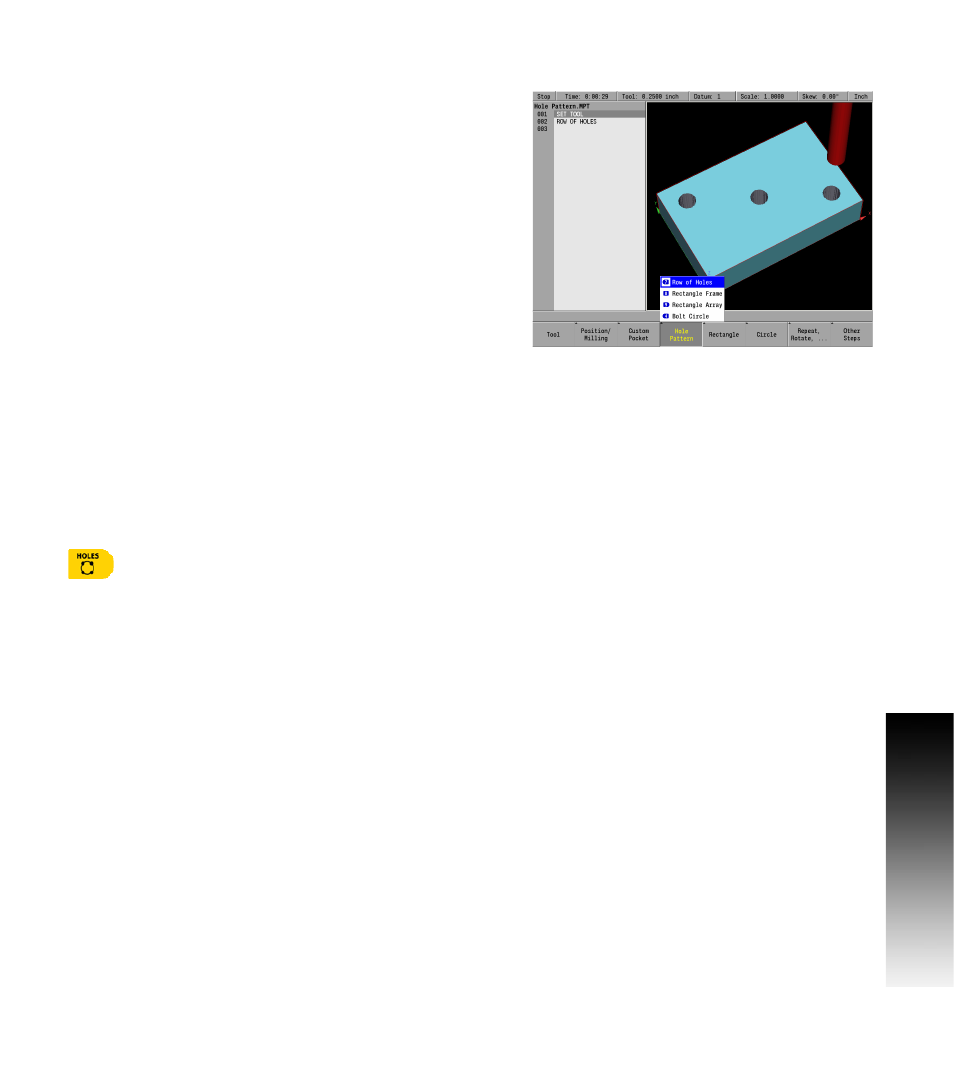

To program a row of holes:
MILLPWR
G2
includes several built-in routines that let you program
hole patterns quickly and easily
 From the PGM screen, press the HOLES key to access
the HOLES popup Menu.
