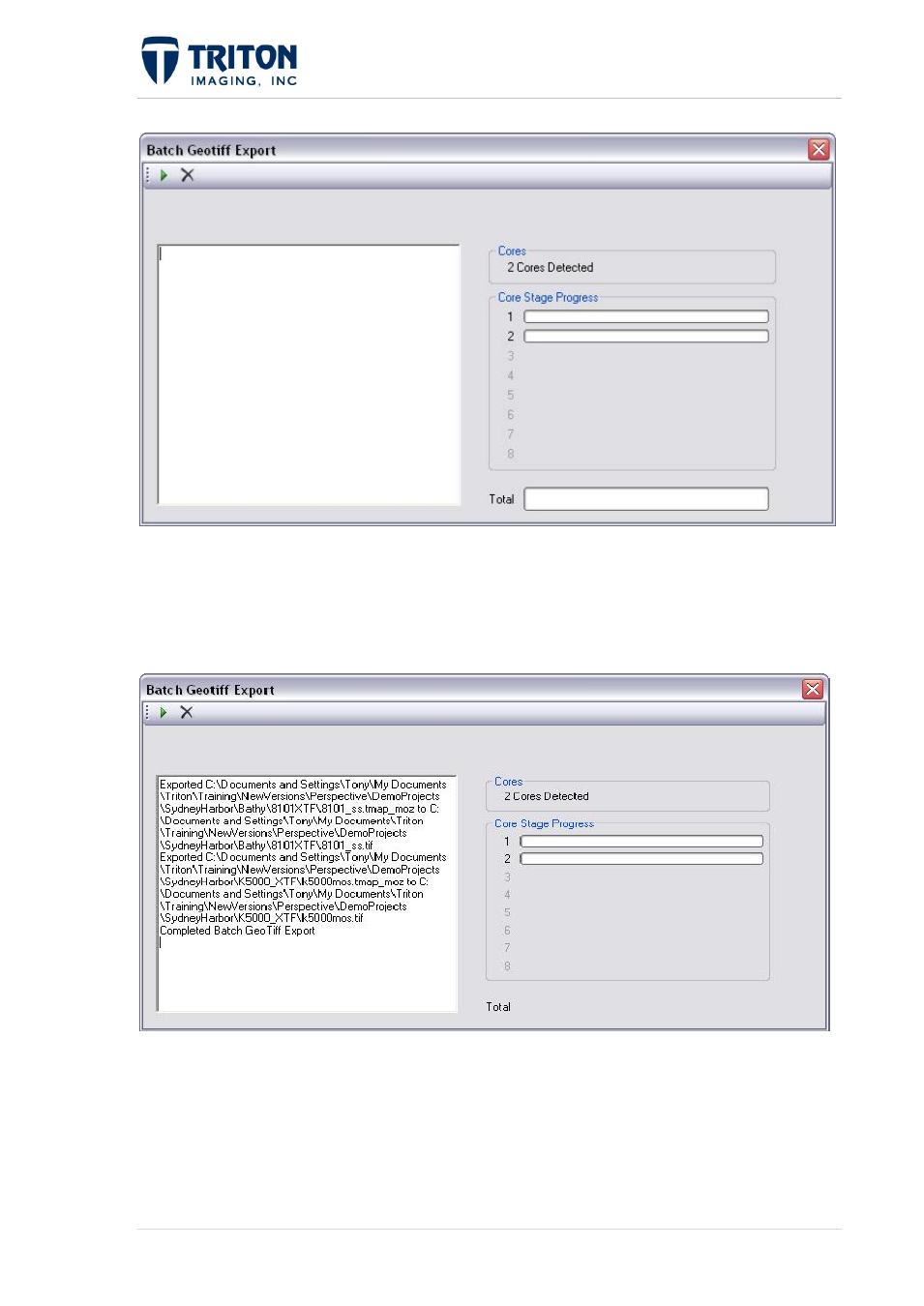

There are no settings to change in this window and default export options are automatically
applied. To complete the export, select the green 'Play' button in the upper left corner of the
window. The files are exported to the default project folder and the results are shown in the
output window as seen in the image below:
2.3.4 KML File Export
Sidescan and bathymetry data can be exported from an existing project from the File Tree to
a Google Earth KML file. For sidescan and bathymetry data, the ‘KML Exporter’ is
launched from either the sidescan/bathymetry root node or the individual mosaic/DTM layer.
