Rawson Accu-Rate/Accu-Plant PFadvantage
Application Rate Mode Ag Leader Technology
September 2003 2-66
Cable attachment
for Rawson Accu-
Rate and Seed
Manager

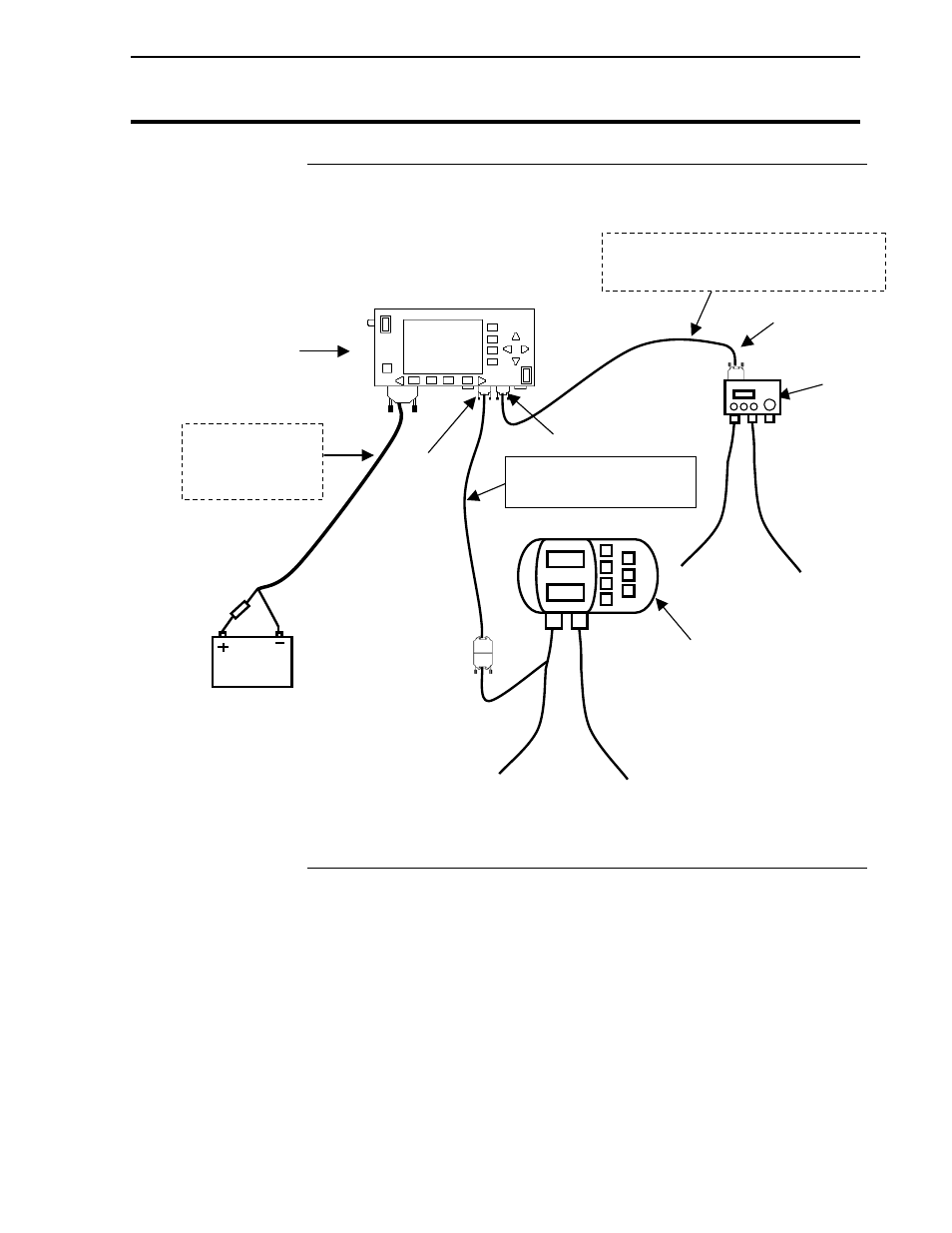

The diagram above shows connections required for the PF to control the
population of the Accu-Rate and record the actual population as
measured by the Seed Manager or Vanguard VM 2500 (PIC). The
ground speed, swath width and area count status come from the Seed
Manager.
ATV Battery
Power Cable
(p.n. 2000497-2)
Com A
Rawson Serial Cable (p.n. 2000952)
(Same as PC cable)
Dickey-john Serial
Cable (p.n. 2000947)
Vanguard PIC or
Dickey-john Seed
Manager Console
Rawson
Console
PFadvantag e
Port 3
Port 2
