General PFadvantage
Ag Leader Technology
September 2003 1-10
Header Height

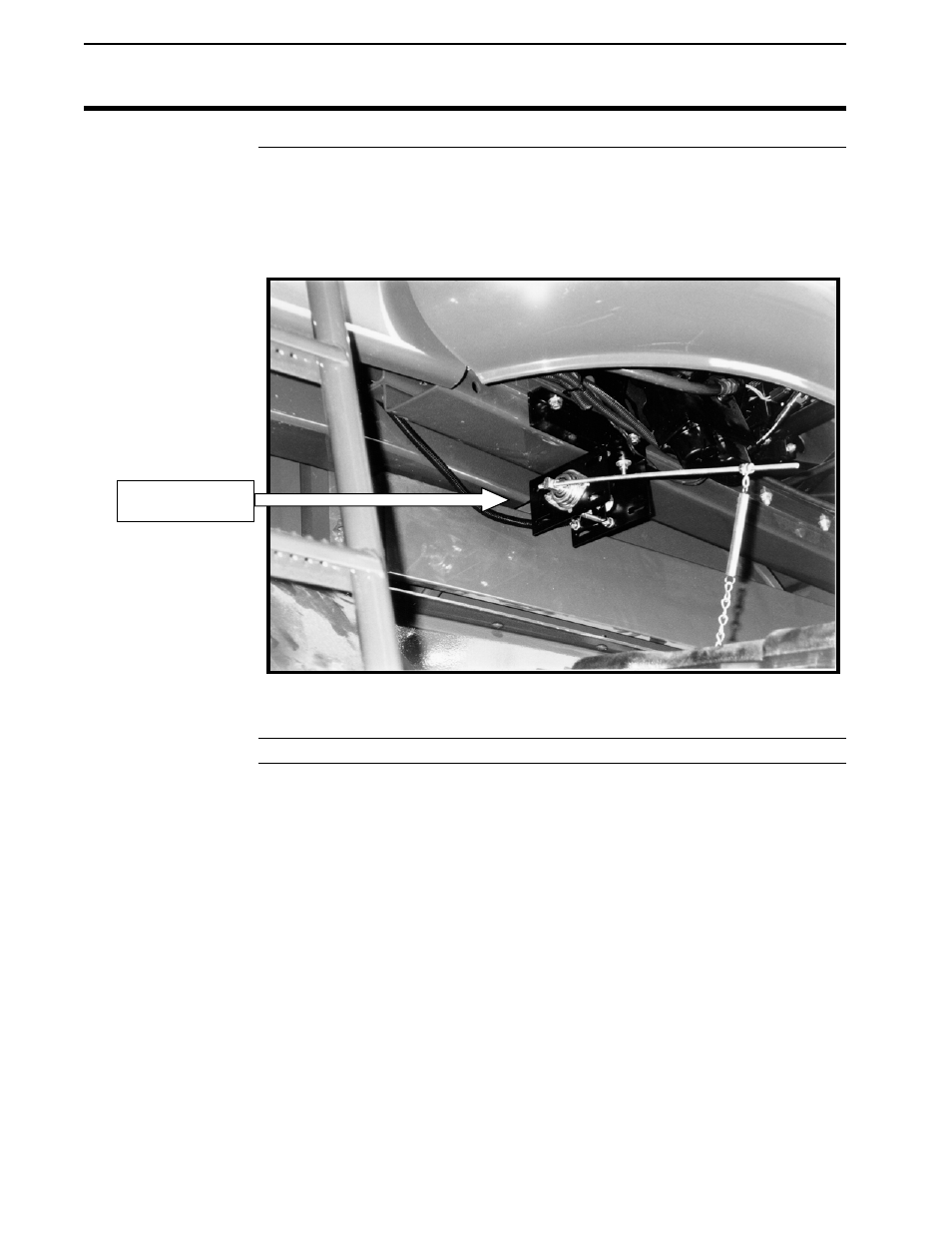

Sensor Below is an example of a header height sensor installed underneath a
combine cab. The header height sensor tells the monitor the position of the
combine head so that when the head is raised on the end rows, the monitor
stops counting area.
Figure 6: Header height sensor
* * *
Header Sensor
