Raven Controller (with Serial Port) PFadvantage
Application Rate Mode Ag Leader Technology
September 2003 2-44
Cable attachment
for Raven
controllers with
serial ports
NOTE: If your Raven console has a serial port, it
will be on the back of the console. It is a nine-pin
rectangular computer port. The Raven 750 and
760 serial port is built-in the main wiring harness.
Not all Ravens consoles have a serial port.

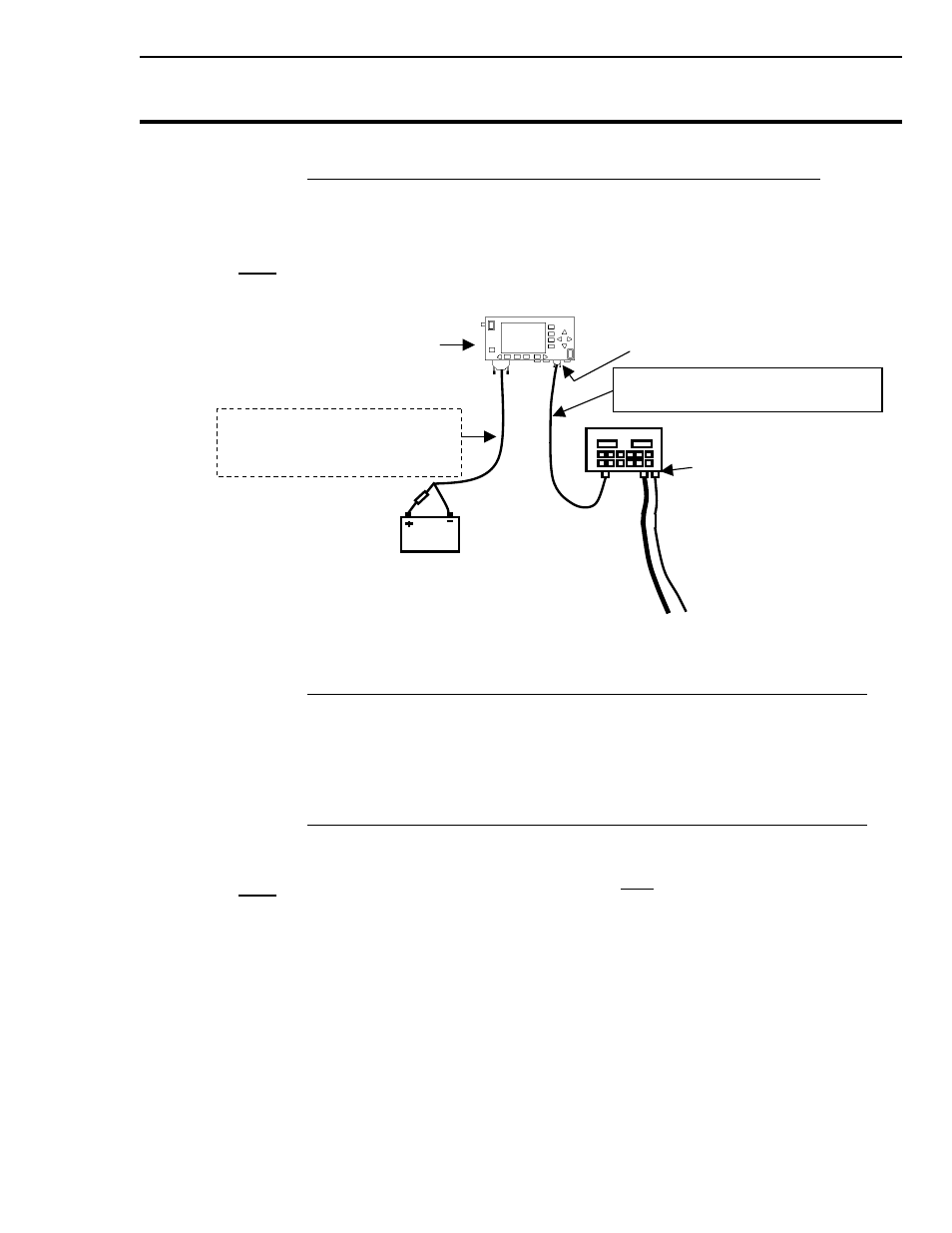

Cable attachment from Raven console to monitor
The Raven Serial Cable enables the PFadvantage to control the rate. It
also provides swath width (based on the number of booms on), actual
rate and area count status (based on Master Switch) information to the
PF.
Setup for Raven
controllers with
serial ports
Complete the following steps to set up for Raven – Sidekick, 440, 450,
460, 660, 700, 710, 750, 760 controllers with serial ports.
A separate configuration of settings should be created for every product
applied. A maximum of 16 different configurations can be created. The
screen below illustrates two configurations set up for a Raven 440.
1. Press SETUP key. Press APP RATE CONFIG key. A screen
similar to the one below should appear.
PFadvantage
Raven Console
Raven Serial Cable (p.n. 2000944)
Port 3
ATV Battery Power Cable
(p.n. 2000497-2)
