Installation PF3000
Ag Leader Technology
September 2003 9-4
Routing the GPS
Cable to the Cab You will need the following parts and tools to route the coaxial cable
into the combine:
• Bulkhead connector (threaded on both ends)
• ½ in. drill bit
• Power drill
Follow these steps to route cable to the cab:
Step Action
1 Find a place on the right side or bottom of the cab to route
cable into cab (the point of entry is up to you).
IMPORTANT: Do NOT route cable through a door or
window because this will crimp the cable and ruin it.
2 Attach the cable from the antenna to AUX 1 port of the
PFadvantage. See Figure 1

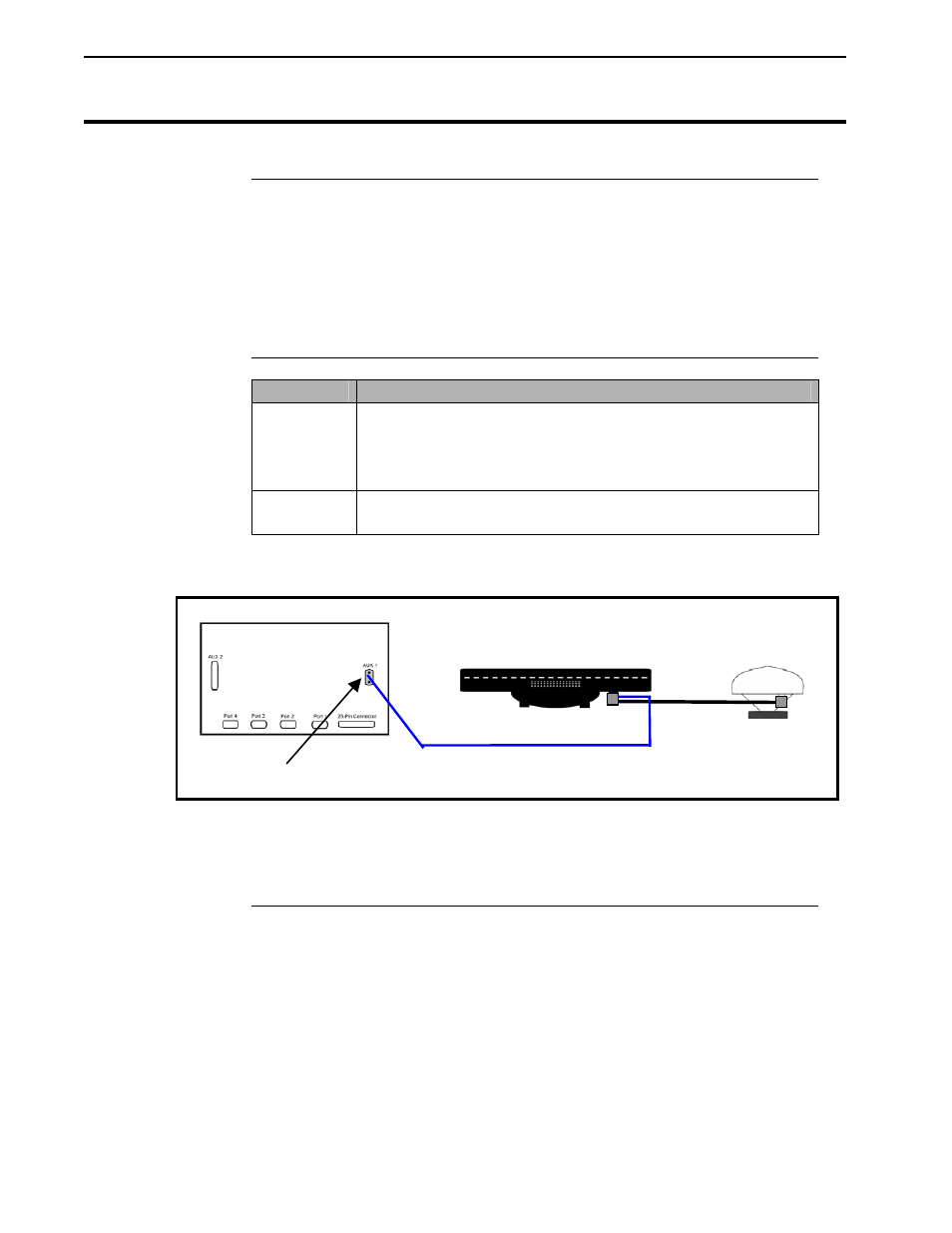

Figure 1. Cable attachment for PFadvantage, Optional Lightbar (if used) and
GPS 4100
***
AUX Port 1
