PFadvantage Rawson Accu-Rate/Accu-Plant
Ag Leader Technology Application Rate Mode
September 2003 2-65

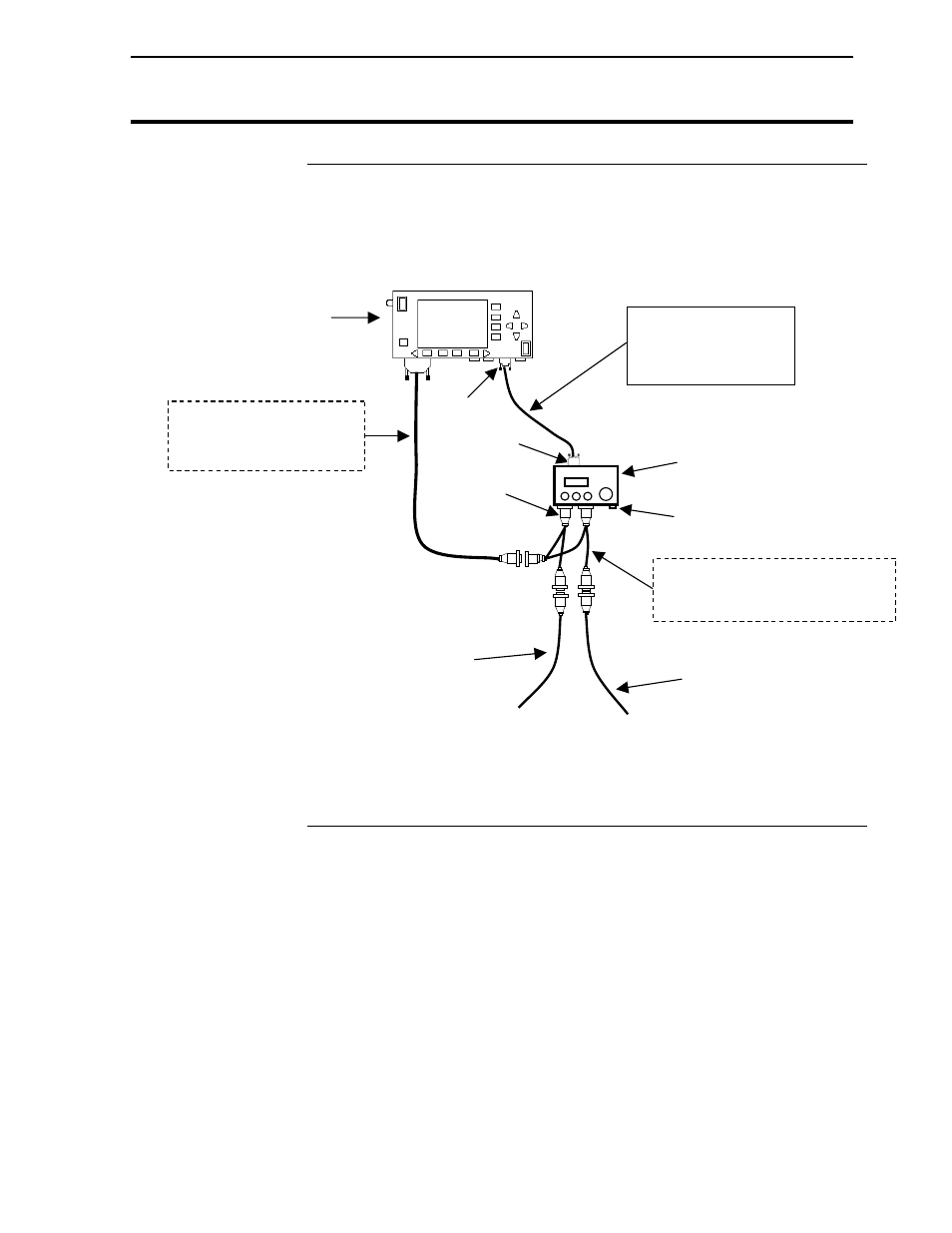

Cable attachment
for Rawson Accu-
Rate Controller
The Rawson serial cable (p.n. 2000952) enables the PFadvantage to
control the rate of the Rawson processor. The Rawson Accu-Rate Tee
Cable (p.n. 2000890) provides power, radar ground speed and actual rate
(based on drive rpm) signals to the PF.
Drive A
Connection
Com A
Rawson Wiring Harness--
Drive Speed Connection.
PFadvantage
Tractor Cab Cable
(p.n. 2000493)
Rawson Wiring Harness--Power,
Ground Speed, and Area Count
Connections.
Rawson Accu-Rate Console
Drive B Connection
Rawson Serial Cable
(p.n. 2000952)
(Same as PC Cable)
Rawson Accu-Rate Tee Cable
(p.n. 2000890)
Port 3
