PFadvantage Mid-Tech Controller
Ag Leader Technology Application Rate Mode
September 2003 2-49
Cable attachment
for Mid-Tech
controllers that
are connected to
Data-Link
consoles

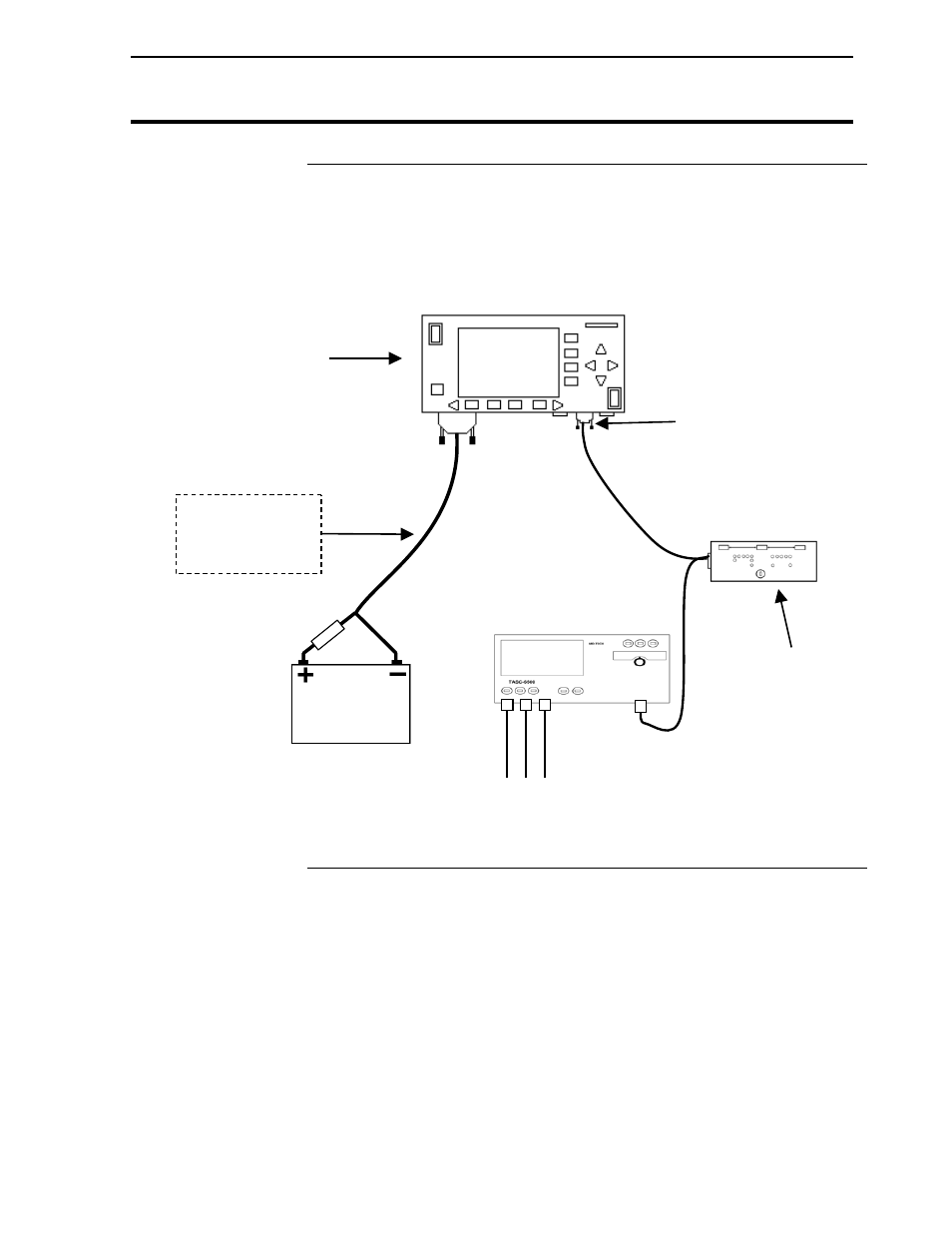

Cable attachment from Mid-Tech console to monitor
The Mid-Tech Data-Link console provides a serial cable connection
between the PF and Ag Logix or the TASC controller. The serial cable
enables the PFadvantage to control and record the rate. It also provides
swath width (based on the number of booms on), ground speed, actual
rate and area count status (based on Master Switch) information to the
PFadvantage.
ATV Battery
Power Cable
(p.n. 2000497-2)
Port 3
PFadvantage
Data-Link
