1. In the Remote Web Console Main window, click Actions > Logical Device >LUN Expansion.
2. Click to change to Modify mode.
3. Select a CU number from the LDEV Information tree. The LDEV Detail table lists all LDEVs in
the selected CU.
4. In the LUN Expansion window, select a LUSE volume in the LDEV Detail table.
5. Right-click the selected LUSE volume, and then select Release LUSE Volume.

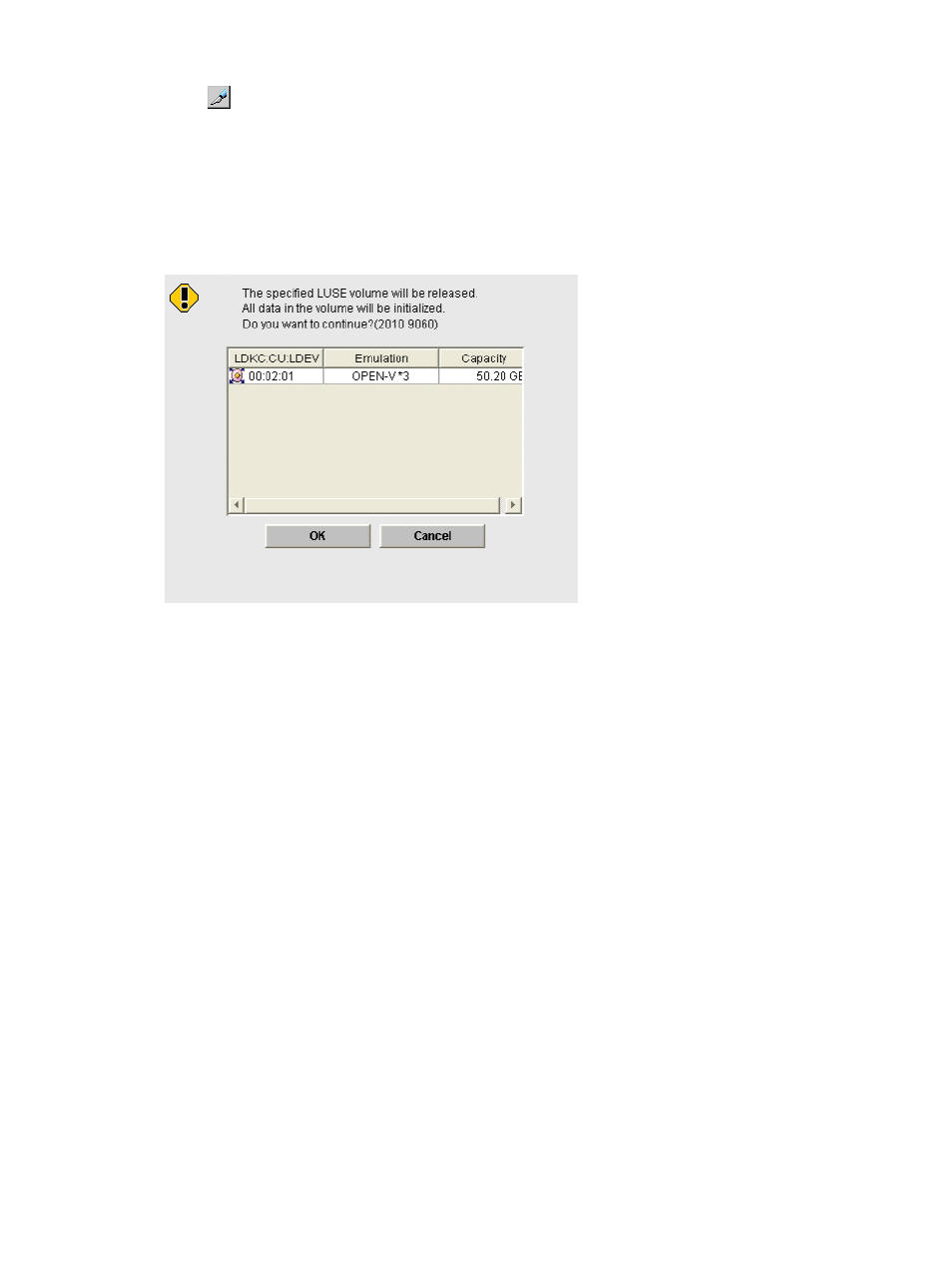

6. In the Release LUSE Volume Confirmation dialog box, verify that the LUSE volumes listed are
the ones that you want released.
7. Click OK. The new settings appear on the LDEV Detail table in blue bold italics but are not
yet implemented.
8. In the LUN Expansion window, click Apply.
9. Click OK.
68 Configuring expanded LU provisioning
