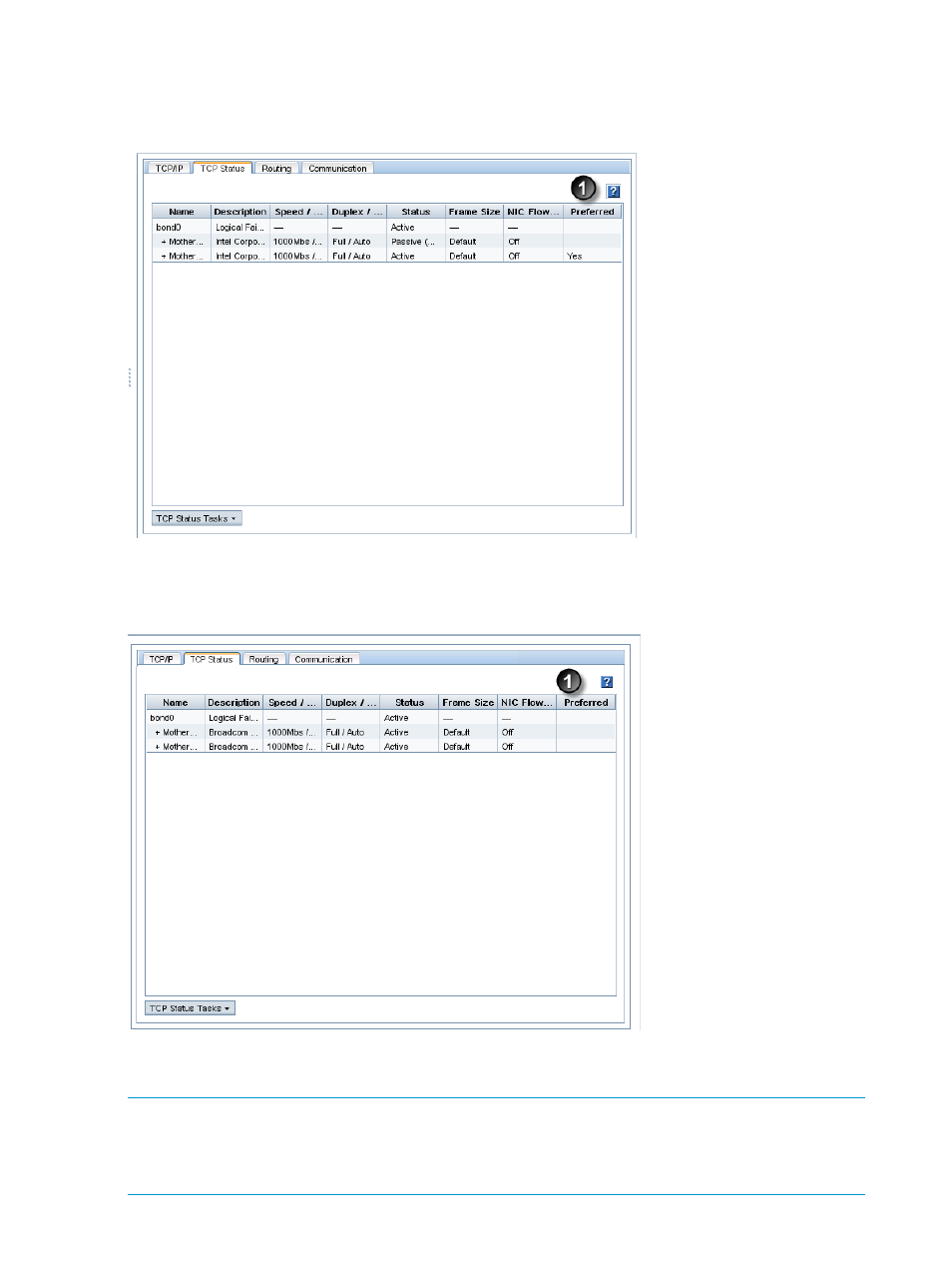

Figure 44 (page 66) shows the status of interfaces in an Active-Passive bond. Figure 45 (page 66)
shows the status of interfaces in a Link Aggregation Dynamic Mode bond.
Figure 44 Viewing the status of an Active-Passive bond
1. Preferred interface
Figure 45 Viewing the status of a link aggregation dynamic mode bond
1. Neither interface is preferred
NOTE: If the bonded NIC experiences rapid, sequential Ethernet failures, the CMC may display
the storage system as failed (flashing red) and access to data on that storage system fails. However,
as soon as the Ethernet connection is reestablished, the storage system and the CMC display the
correct information.
66 Managing the network
