Profile Extraction Defaults
Profile Extraction Defaults is an optional function used to select a default test circle for ENC and RTR endpoints, and/or a
default drive circle for gas endpoints Access Profile Extraction Defaults from Settings on the ORION Endpoint Utility menu
If a test circle is selected here, it will display as the default on the ORION Profile Extraction screen during profile extraction
with ENC or RTR endpoints If a drive circle is selected here, it will display as the default on the ORION Profile Extraction screen
during profile extraction with gas endpoints

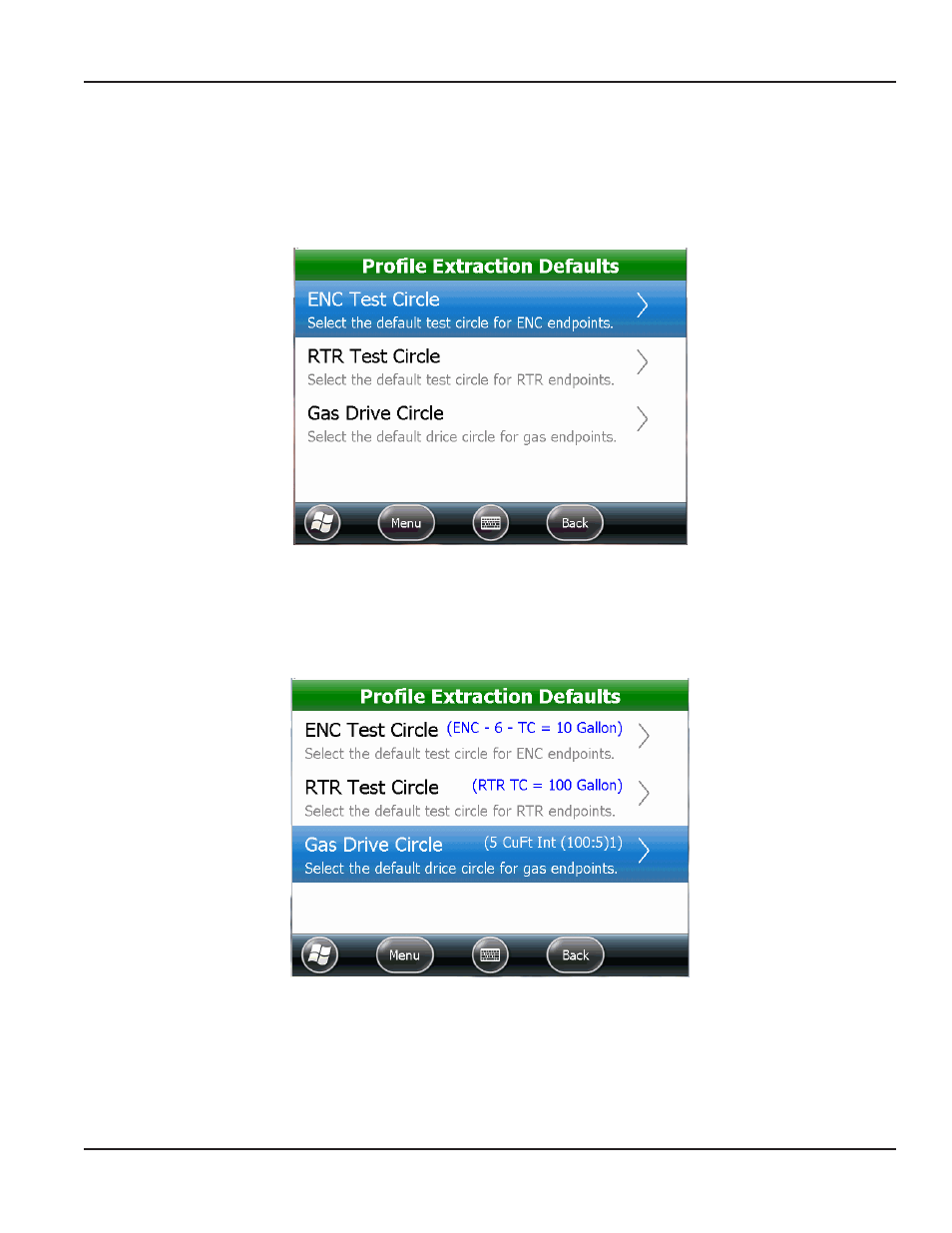

Figure 112: Profile Extraction defaults screen
1 Tap an option to display a list of test circles or drive circles
2 Tap to select an option on the list that will be the default
Result: The defaults selected display next to the option as shown in Figure 113.
Figure 113: Test circles and drive circle defaults selected
3 Tap the Back button to return to the Settings screen
SETTINgS
