Advanced IR Programming
NOTE: N Before beginning, make sure the IR programming cable is connected and the IR COM port is set correctly See
"Hardware Settings" on page 63 for additional information
After performing an IR read of an ORION Migratable endpoint, tap the Advanced button to access more information
and commands
Use the Advanced button to see the endpoint firmware version, date/time, GPS location and battery status, and/or to request
a Flow Rate Study
NOTE: N The functionality available on the Advanced IR screen is also available on the ORION Quick Read - Single screen

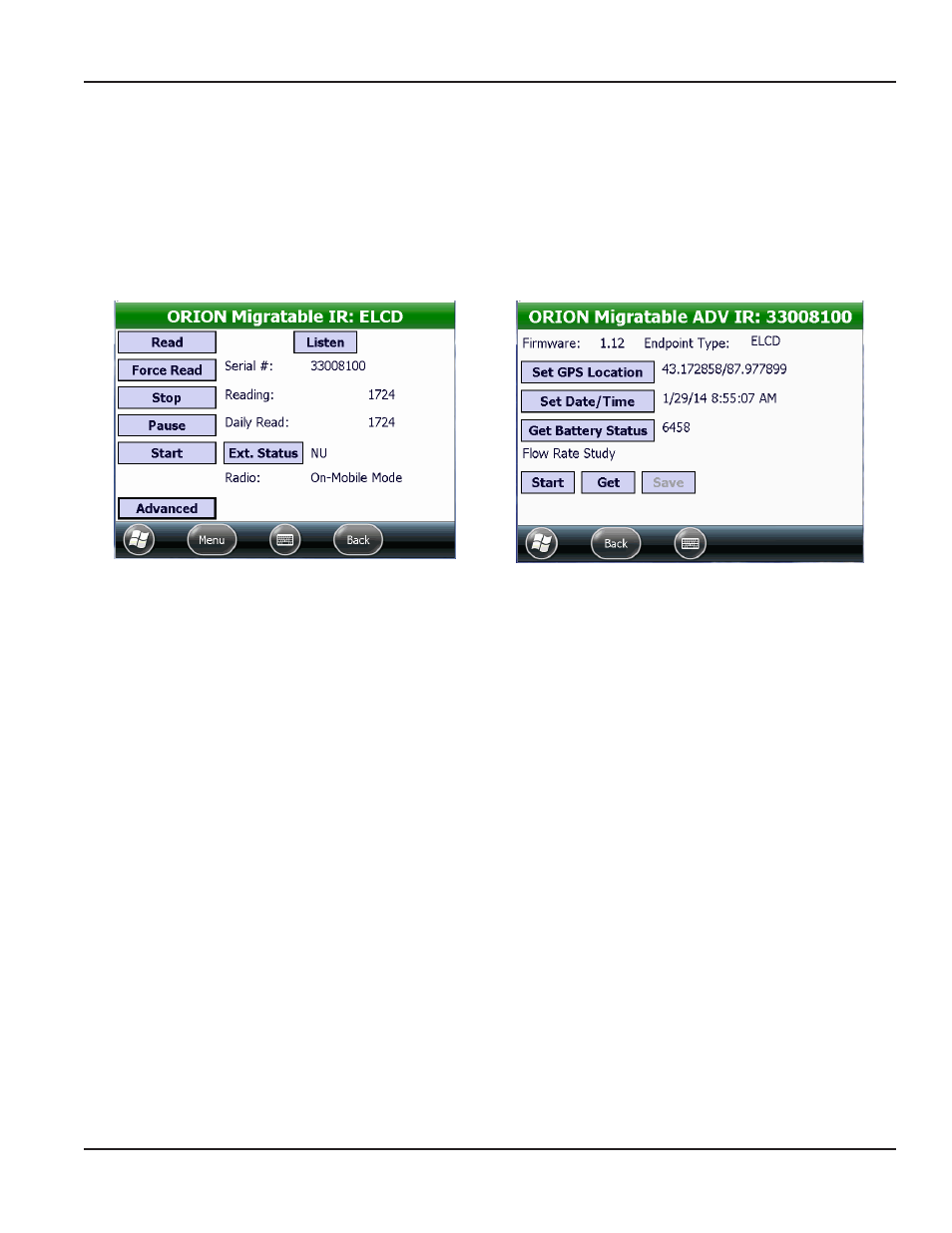

Figure 34: Advanced button on IR Programming screen Figure 35: Advanced screen
Advanced Screen Fields and Buttons
Firmware Displays the firmware version of the selected endpoint Read only field
Endpoint Type Designates the reading technology compatible with the endpoint Read only field
Set GPS Location Tap to store the latitude/longitude settings for the endpoint if a GPS antenna is
present Populates automatically if the handheld has an onboard GPS or can be
entered manually
Programmable
Set Date/Time Tap to set the endpoint date/time using the handheld date/time Programmable
Get Battery Status Tap to see the number of days left on the endpoint battery Programmable
Flow Rate Study Displays the results when a flow rate study is requested The field to the right of
the Start, Get, Save buttons displays the results
Display field
• Start Tap to start a 7-day flow rate study Programmable
• Get Tap to get the results from the flow rate study Programmable
• Save Tap to save the flow rate study results A screen displays showing where the file
is saved on the handheld
Programmable
ORION IR PROgRAMMINg
