ORION NETWORK COMMUNICATION TEST
The ORION Network Communication Test is used to ORION endpoint communication with the network Select ORION
Network Communication Test on the ORION Endpoint Utility main screen

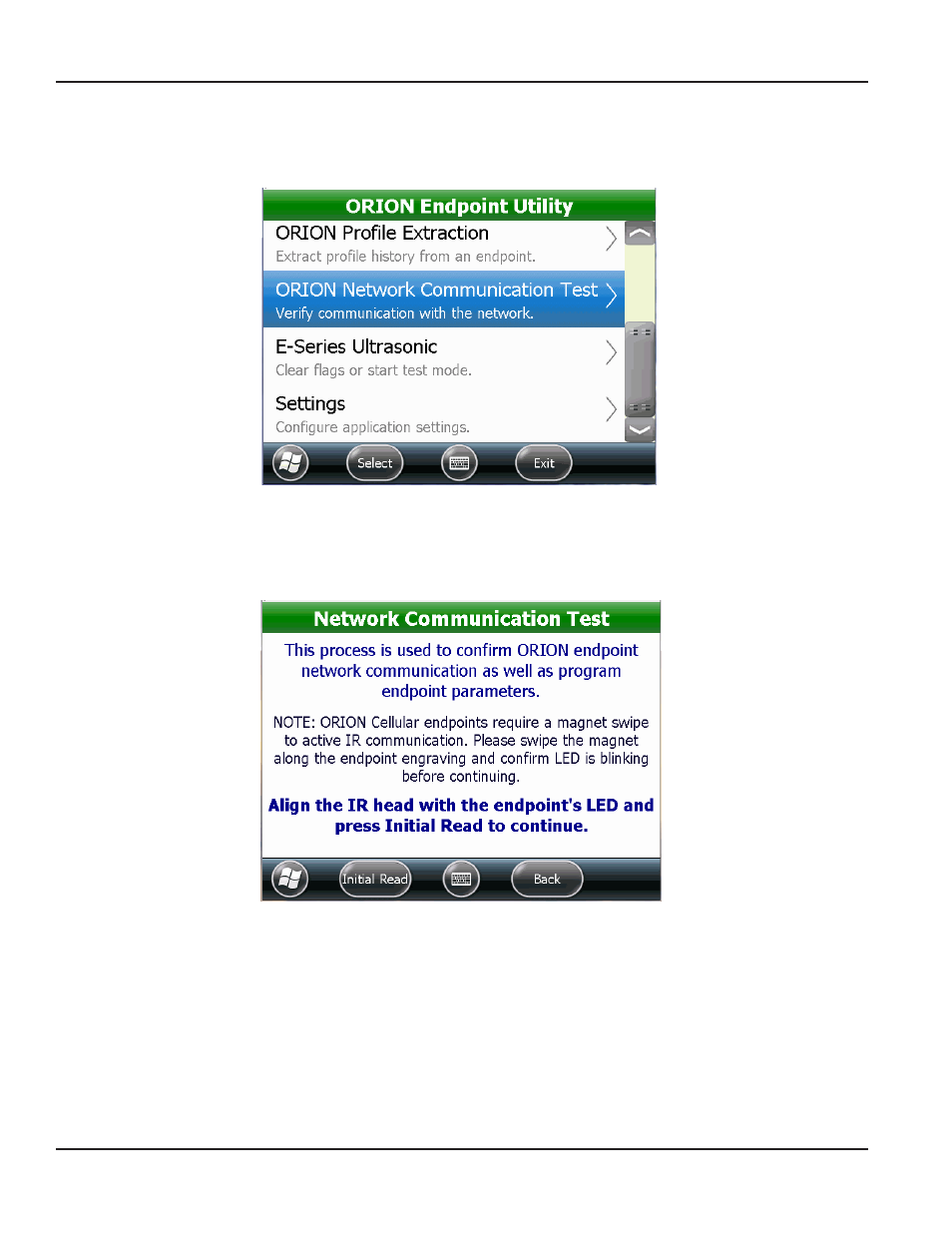

Figure 88: ORION Network communication Test on the ORION Endpoint Utility menu
ORION Network Communication Test can be used with ORION Cellular, Fixed Network and Migratable endpoints to start the
endpoint radio, confirm endpoint communication with an ORION Fixed Network gateway or BEACON software, and program
endpoint parameters The network communication test can also be done as part of an endpoint/meter installation
Figure 89: Network communication Test
When finished using the Network Communication Test function, tap the Menu button to choose another ORION Endpoint
Utility option or exit the software
ORION NETWORk cOMMUNIcATION TEST
