IR Force Read (ADE)
When an ORION Classic endpoint connected to an ADE encoder is read, the Force Read button displays instead of the
Program button on the IR Programming screen Force Read is used to view the real-time encoder odometer value and to
verify a successful tamper repair
1 Align the optical head of the IR cable with the
ORION Classic endpoint IR LED port
2 On the ORION IR Programming screen, tap Read to
read the endpoint
3 Tap Force Read
Result: The endpoint transmission starts and the
reading value updates to reflect the current encoder
odometer value.

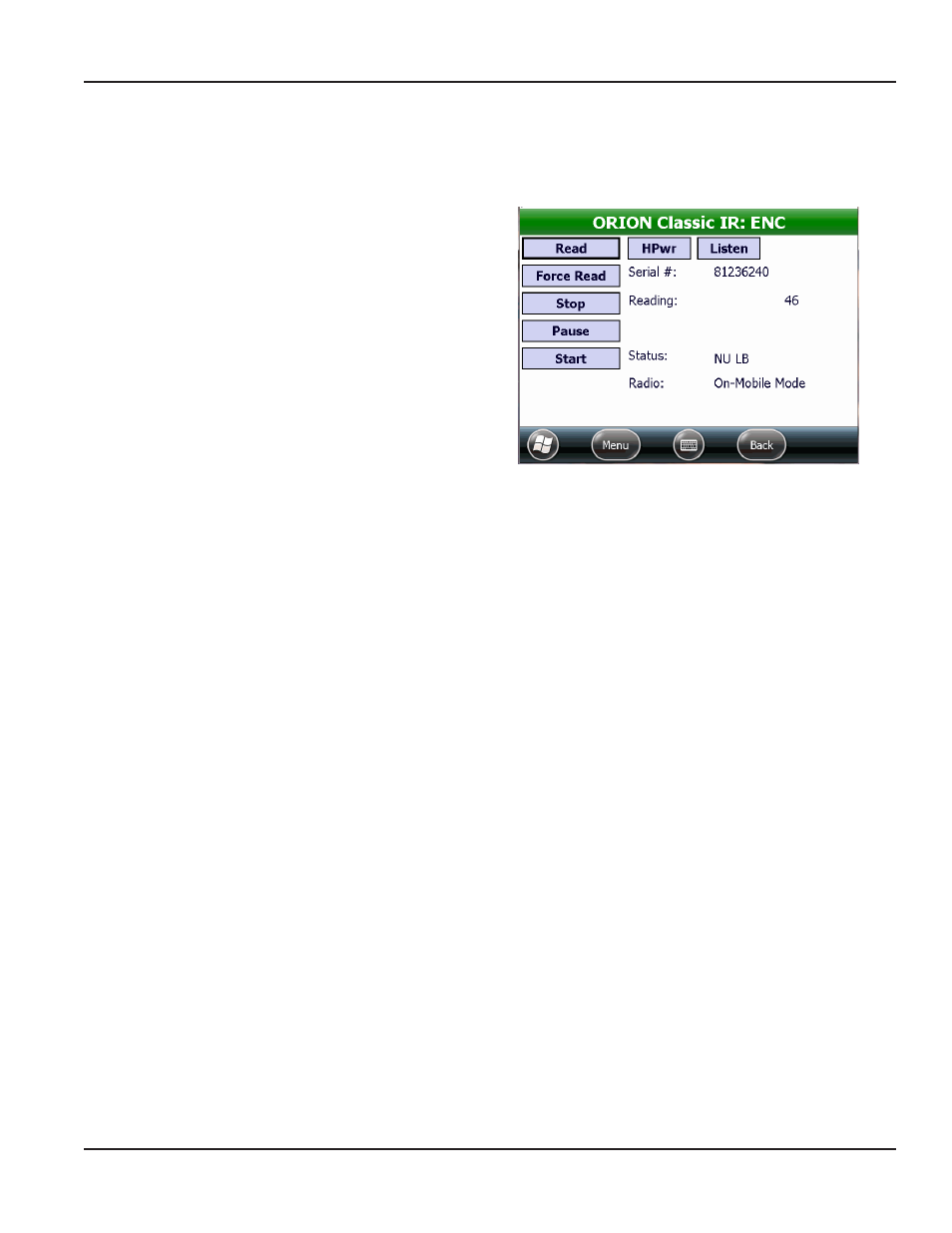

Figure 52: Force Read on AdE
Listen
NOTE:
N
Prior to using the Listen function, make sure the handheld has a built in ORION Classic receiver or an external mobile
receiver is connected and the appropriate COM port is set See
if you need help
Tap Listen to activate radio frequency (RF) and display the ORION Quick Read - Single screen for the selected endpoint
For additional information, see
"ORION Quick Read-Single" on page 46
