Reprogramming a Gas Drive Circle
To reprogram an ORION Classic endpoint and change the gas drive circle after it has been programmed, follow these steps
1 From the ORION Endpoint Utility menu, tap ORION IR Programming
2 Align the optical head of the IR cable with the ORION Classic gas endpoint IR LED port Then tap Read
Result: The Select gas drive circle screen is displayed automatically.

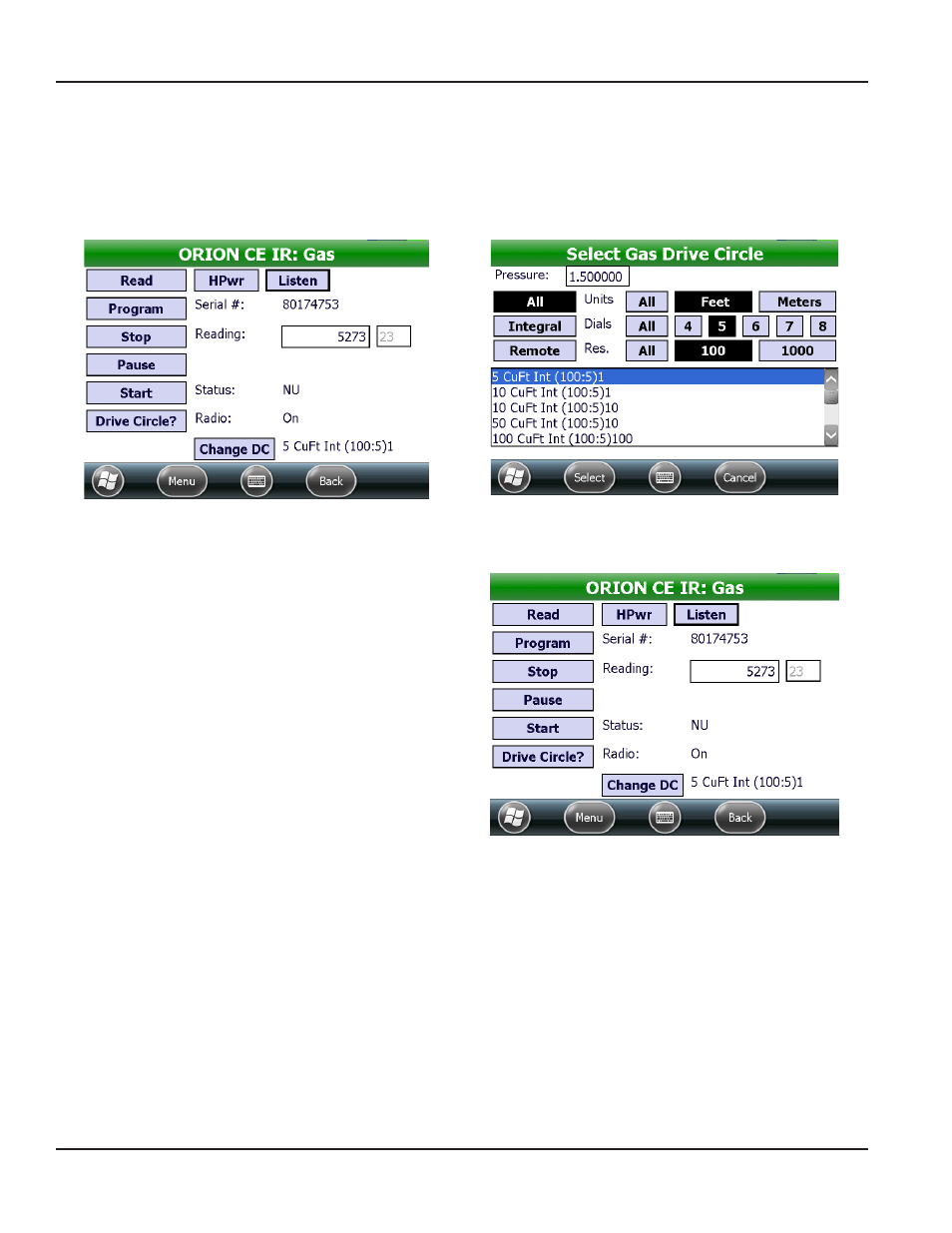

Figure 59: ORION classic IR Programming screen
Figure 60: Tap cancel
3 Tap the Cancel button to return to the IR
Programming screen
4 Tap the Change DC button
Figure 61: Tap change dc
ORION IR PROgRAMMINg
