High Resolution (HR) E LCD Extended Status

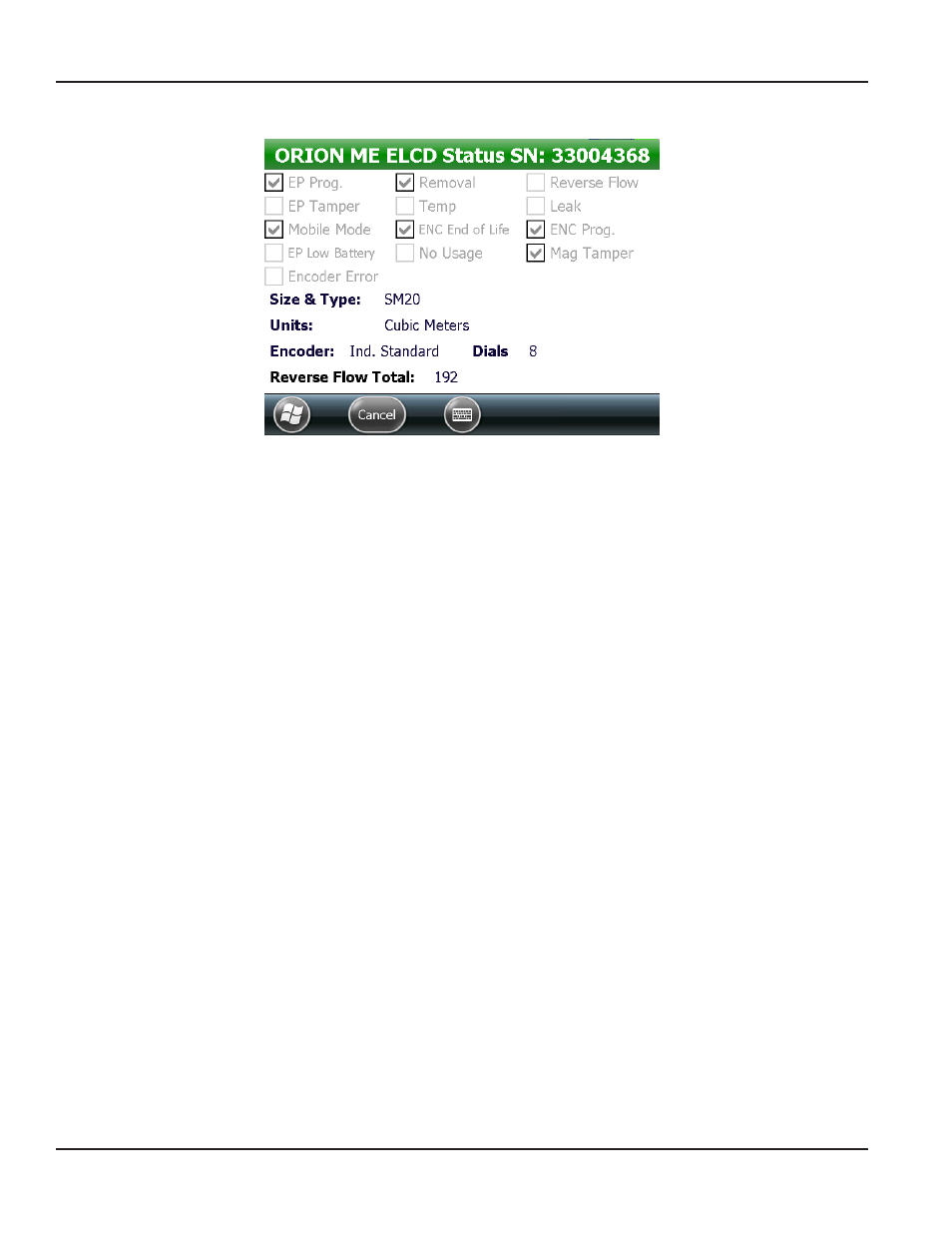

Figure 28: Extended Status - HR-E lcd
The status indicators described below apply for an ORION Migratable (or Fixed Network in mobile mode) endpoint when
connected to an HR-E LCD encoder
Status Indicator Description
EP Prog Endpoint is reporting that it has been reprogrammed via IR
EP Tamper Endpoint is reporting a tamper condition This condition occurs when the wire between the
encoder and the endpoint is cut or shorted, or the encoder is not connected
Mobile Mode Endpoint is communicating in mobile transmission mode
EP Low Battery Endpoint is reporting a low battery condition
Encoder Error Encoder is reporting a device error to the endpoint
Removal Encoder is reporting an encoder removal condition to the endpoint
Temp Encoder is reporting to the endpoint that it senses temperatures outside the specified range
ENC End of Life Encoder is reporting to the endpoint that the encoder battery life indicator has been activated
No Usage Encoder is reporting a no usage condition to the endpoint
Reverse Flow Encoder is reporting a reverse flow condition to the endpoint
Leak Encoder is reporting a potential leak condition to the endpoint
ENC Prog Encoder is reporting to the endpoint that the encoder has been reprogrammed via IR
Mag Tamper Encoder is reporting a magnetic tamper condition to the endpoint
Encoder Information Description
Size & Type The size and type of the meter for which the encoder was programmed
Units The units of measure as defined by the encoder: cubic meters, cubic feet, gallons, imperial gallons
or liters
Encoder The encoder protocol
Dials Encoder dial resolution (8) as reported from the encoder
Reverse Flow Total The total reverse flow units measured by the encoder
NOTE: N Refer to the HR-E lcd Encoder Installation and Programming manual, available at www.badgermeter.com , for a detailed
list of encoder status indicators
